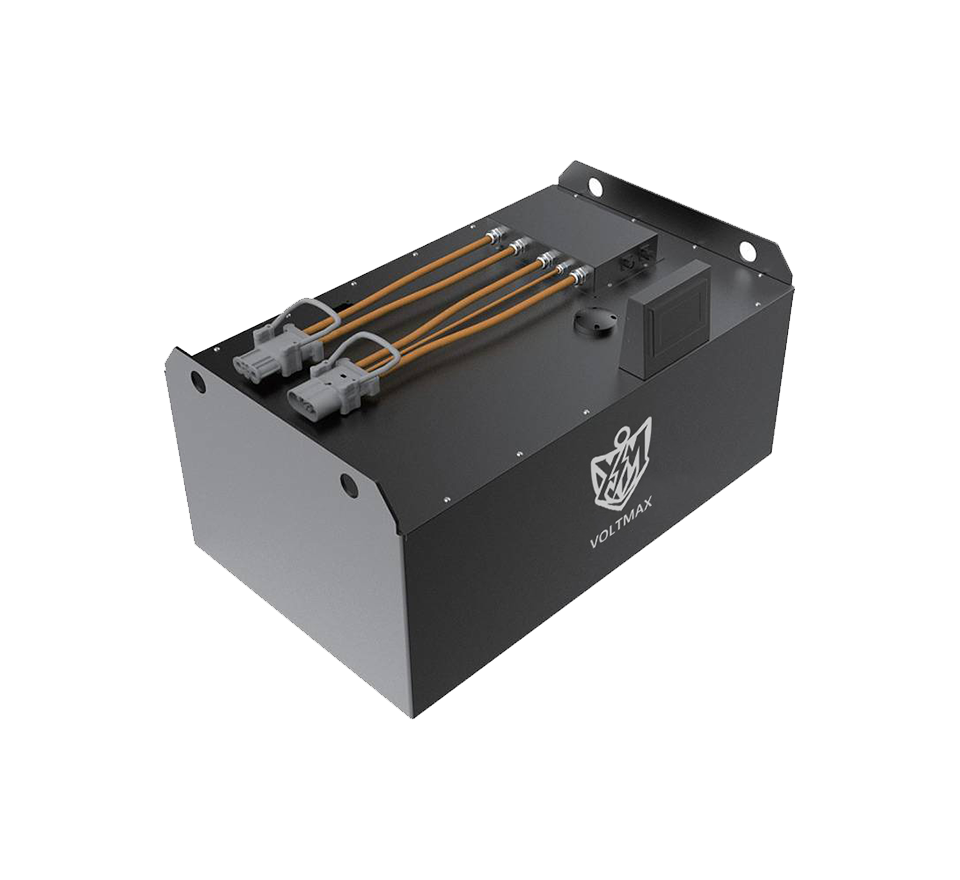

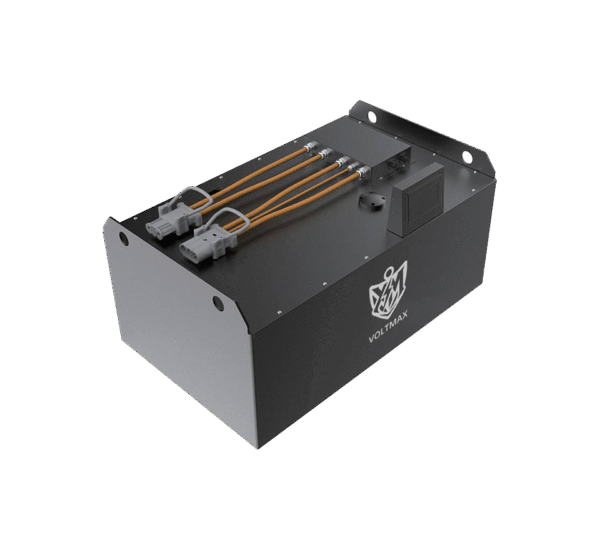

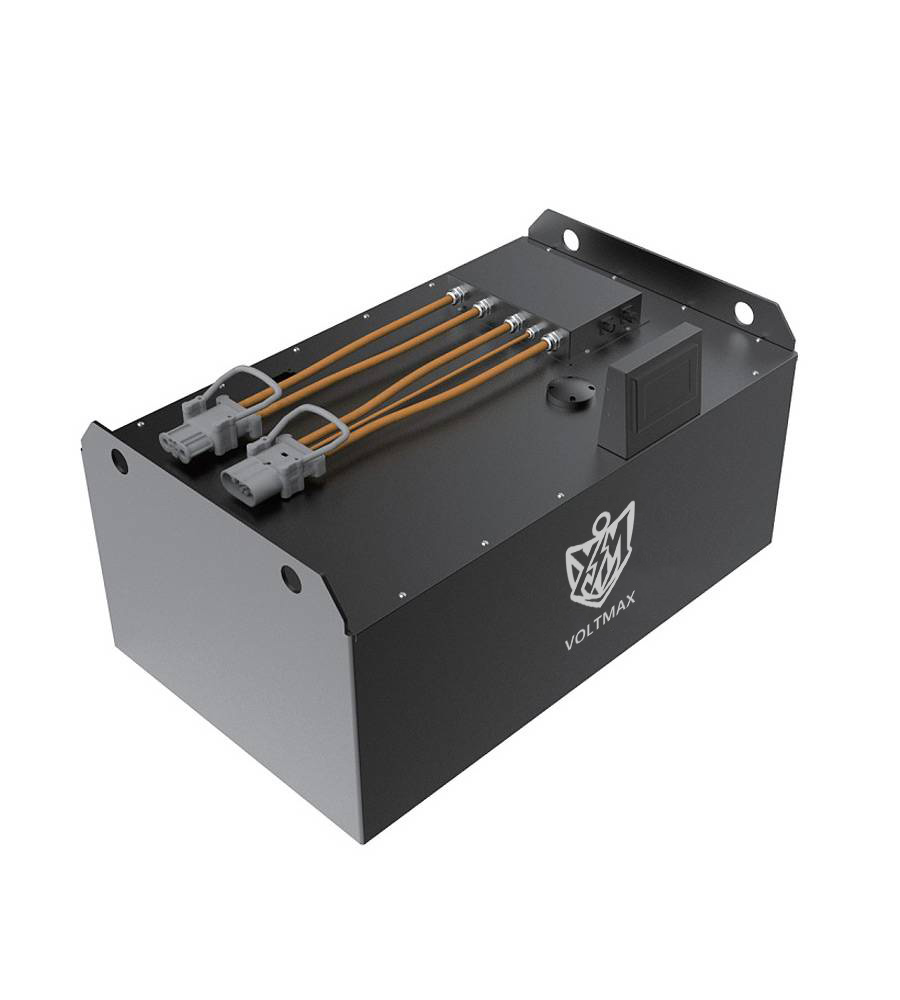

Forklift LiFePO4 48v 460Ah lithium battery (950 x 421 x 450)
Category: 48V Forklift lithium battery
Lithium battery type: LiFePO4
Rated voltage 51.2V
Nominal capacity 460Ah
Nominal energy 23.5kWh
Dimensions (length * width * height) 950 x 421 x 450 mm
Weight ~ 190 Kg
Working voltage range 40V-58.4V
Aoge Power 51.2V 460Ah forklift lithium battery, a high-performance power solution specially designed for OEM, ODM and wholesale buyers. This advanced LiFePO4 battery combines powerful capacity with outstanding durability, making it an ideal choice for demanding material handling operations. This battery has a cycle life of over 3,500 times and is equipped with a comprehensive battery management system (BMS) to ensure safety, reliability and efficiency in various industrial applications.
Main function
High capacity and high efficiency: With a nominal energy of 23.5kWh and a continuous discharge current of 300A, it can achieve the best performance.
Durable design: IP67 rating, featuring a sturdy metal casing to ensure dust and water resistance.
Long lifespan: Over 80 cycles at a depth of discharge (DOD) of 3500 cycles, and comes with a 5-year warranty to give you peace of mind.
Advanced BMS: Intelligently monitor SOC, voltage, current and temperature to prevent overcharging, overdischarging and short circuit.
Flexible transportation options: Sea, air or land transportation are available, with various container sizes and customizable delivery terms.
Product description
Aoge Power 51.2V 460Ah Lithium Battery for Forklifts is designed to meet the stringent requirements of modern material handling. Utilizing advanced LiFePO4 technology, this battery has a nominal voltage of 51.2V and a capacity of 460Ah. The total energy output is 23.5kWh, which enables extended operating time and eliminates the need for frequent charging.
This battery is designed for a wide range of applications and can operate effectively within the voltage range of 40V to 58.4V. It is suitable for various forklift models. Its compact size (950mm x 421mm x 450mm) and lightweight design (~190 kg) make it easy to install and integrate into existing systems.
Safety is of utmost importance; therefore, the battery is equipped with an advanced battery management system. This system can continuously monitor key parameters such as battery voltage and temperature. Not only does this system enhance performance, but it also extends the battery’s lifespan by preventing potential hazards such as overcharging or overheating.
The cycle life exceeds 3500 cycles. At an 80% discharge depth, this lithium battery is extremely durable. Compared to traditional lead-acid batteries, it can significantly reduce the total cost of ownership. Moreover, it can operate in extreme temperatures ranging from -20℃ to 60℃, making it an excellent choice for diverse working environments.
The battery is equipped with RS485 and CAN-bus communication protocols, enabling seamless integration with existing monitoring systems. The LCD display on the casing provides real-time information about the battery status, ensuring that users can easily monitor performance.
Whether you are looking to upgrade your fleet or seeking a reliable power solution for OEM projects, our 51.2V 460Ah forklift lithium battery is the top choice for efficiency and sustainability in material handling applications.
| 48V 460AH Forklift Lithium Battery | Specifications |
| Model | AG48460LFP-LPFK |
| Battery Type | Lithium Iron Phosphate |
| Rated Voltage | 51.2V |
| Rated Capacity | 460Ah |
| Rated Energy | 23.5kWh |
| Dimensions | 950×421×450mm |
| Weight | 190kg |
| Maximum Continuous Charging Current | 200A |
| Maximum Continuous Discharging Current | 300A |
| Peak Discharging Current | 1000A (for 5 seconds) |
| Operating Voltage Range | 40V-58.4V |
| IP Rating | IP67 |
| Heat Sink | Natural cooling |
| Cycle Life | >3500 cycles (80% DOD) |
| Charging Temperature | 0°C~55°C |
| Discharging Temperature | -20℃~60℃ |
| Battery Case | Metal |
| External Communication | RS485, CAN bus |
| Battery Monitoring | Cloud monitoring, 4G (antenna) |
| Display | LCD display on the case |
| BMS | Advanced intelligent DMS monitors SOC, system voltage, current, battery voltage, battery temperature, overcharge, overdischarge, overcurrent, overvoltage, undervoltage, over-temperature, short circuit, etc. |
| Display | Yes |
| Charging Interface Type | Rema 320A |
| Discharging Interface Type | Anderson 350A |
| Warranty Policy | 5 years or 3500 cycles |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
