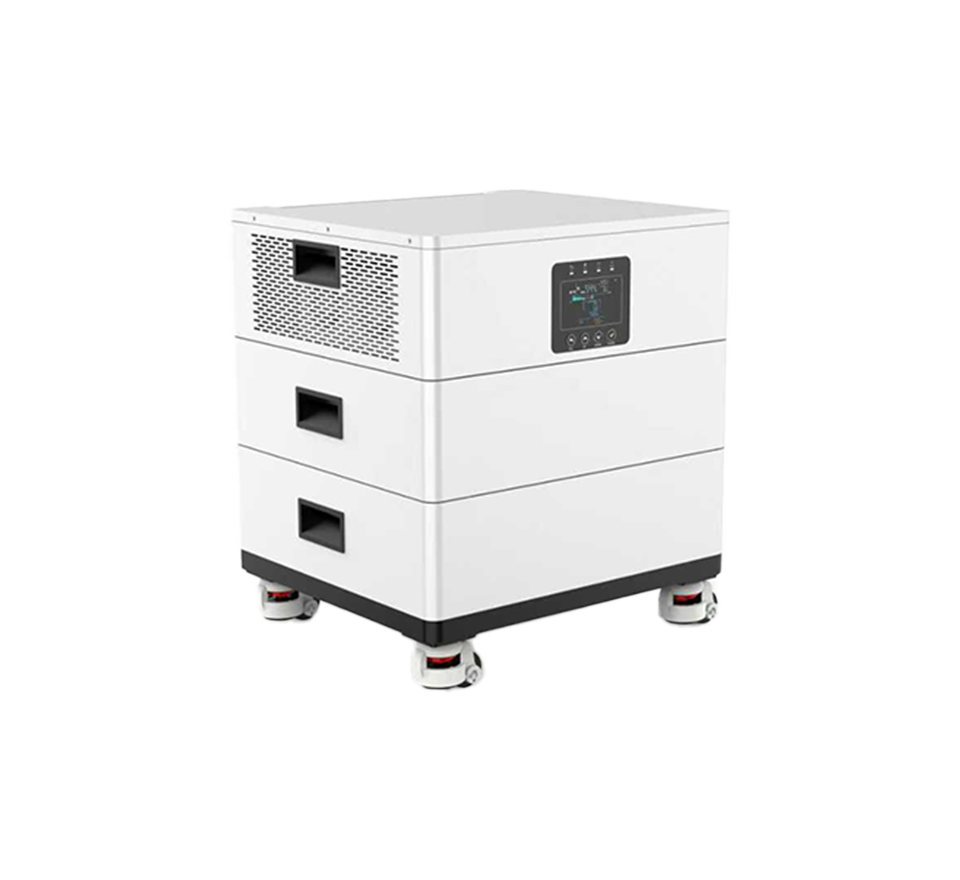

AG51200LFP-AOLV(II) 51.2V200AH 6KW INVERTER
Lithium-ion Battery All In Solar Power Low Voltage Battery
Type: LiFePO4 Battery
Cathode Material: LFP
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: AOGE POWER
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet
Solar energy, a renewable and abundant resource, has great potential to reduce our dependence on non-renewable energy sources. Photovoltaic (PV) panels capture sunlight and convert it into electricity. However, the electricity from PV panels is direct current (DC), while homes and industries mainly use alternating current (AC). This is where inverters play a crucial role. AG51200LFP-AOLV(II) 51.2V200AH 6KW INVERTER,All-in solar power low-voltage battery systems typically integrate various technologies to store and manage energy in one unit. They store electricity generated from renewable sources or during periods of low energy demand, and release it when demand is high or renewable energy is insufficient.
General Feature
Application
| Model | ESS 6KW+10KWH |
| AC Input | |
| Rated Input Voltage(VAC) | 208/220/230/240;L+N+PE |
| Voltage Range(VAC) | 90~280±3(normal mode);170~280±3(UPS mode) |
| Frequency(Hz) | 50/60(Auto Adaptive) |
| AC Output | |
| Rated Capacity(kW) | 6 |
| Surge Power(kVA) | 12 |
| Voltage(VAC) | 208/220/230/240 |
| Power Factor(PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time(ms) | 10 |
| Wave Form | Pure Sine Wave |
| Overload Capacity(Battery Mode) | 60s@102%~110%;10s@110%~130%; 3s@130%~150%;0.2s@>150%; |
| Max.Efficiency(Battery Mode) | 93%@48VDC |
| Charger(PV/AC) | |
| Solar Charger Type | MPPT |
| Max PV input current /power | 27A/9000W |
| Operating Voltage Range(VDC) | 80-450 |
| Max PV Open Circuit Voltage(VDC) | 500 |
| Max PV Charge Current(A) | 120 |
| Max AC Charge Current(A) | 120 |
| Max.Charge Current(PV+AC)(A) | 120 |
| Battery | |
| Nominal Battery Voltage | 51.2VDC |
| Rated energy of a single module | 5.12KWh(0.5C,25℃) |
| Number of modules | 2 |
| Total Capacity | 10KWh |
| Usable Energy(90%DOD) | 9KWH |
| Max.Charge/Discharge Current | 100A/200A |
| Operation Voltage Range | 40.0Vdc~58.4Vdc |
| Interface | |
| reveal | LCD |
| communication | USB |
| Monitoring | WiFi |
| General Data | |
| Ingress Protection | IP20 |
| Operating Temperature | -10℃~50℃ |
| Relative Humidity | 5%～95%(Non-condensing) |
| Storage Temperature | -15℃~60℃ |
| Max.Operating Altitude | 4000m(Derating above 1000m) |
| DIMENSION/Weight | |
| LxW×H(products size,mm) | Battery:540×480×164mm*2 Inverter:540×480×180mm*1 |
| LxW×H(package size,mm) | Battery:616×556×220mm*2 Inverter:616×556×236mm*7 |
| Weight(NW Kg) | Battery:45kg*2PCS Inverter:14kg*1 |
| Weight(GW Kg) | Battery:48kg*2PCS Inverter:17.5kg*1 |
