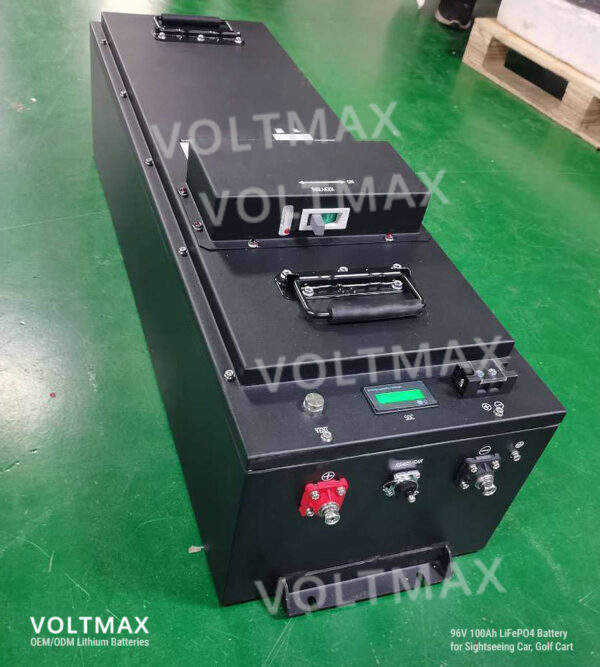

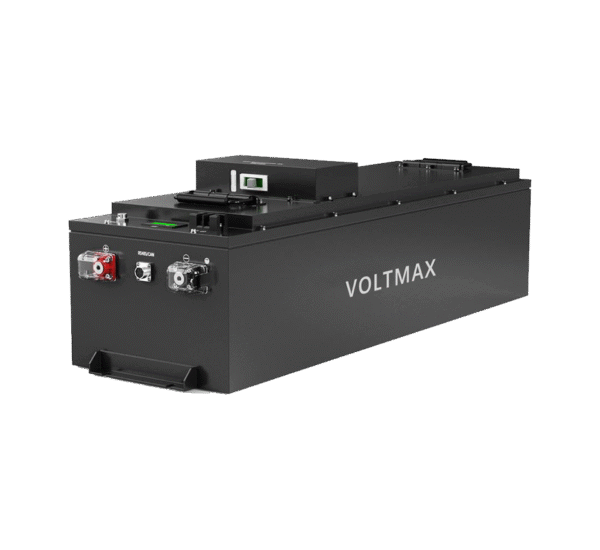

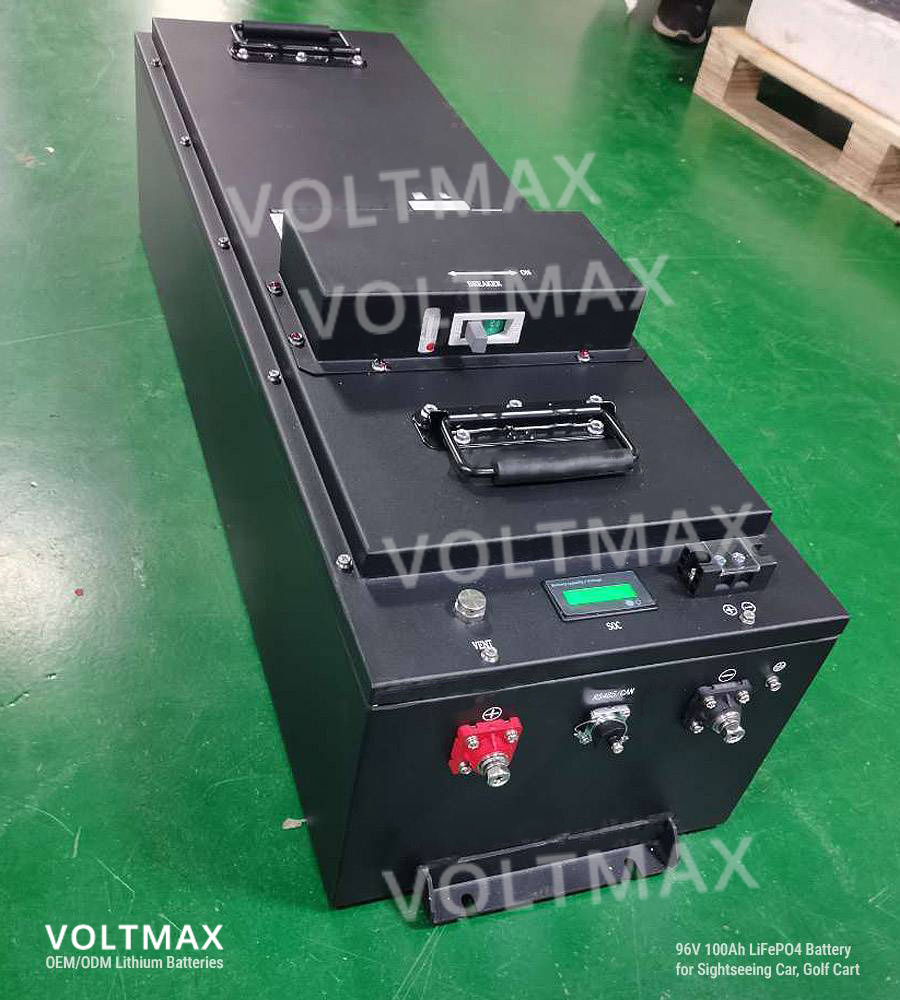

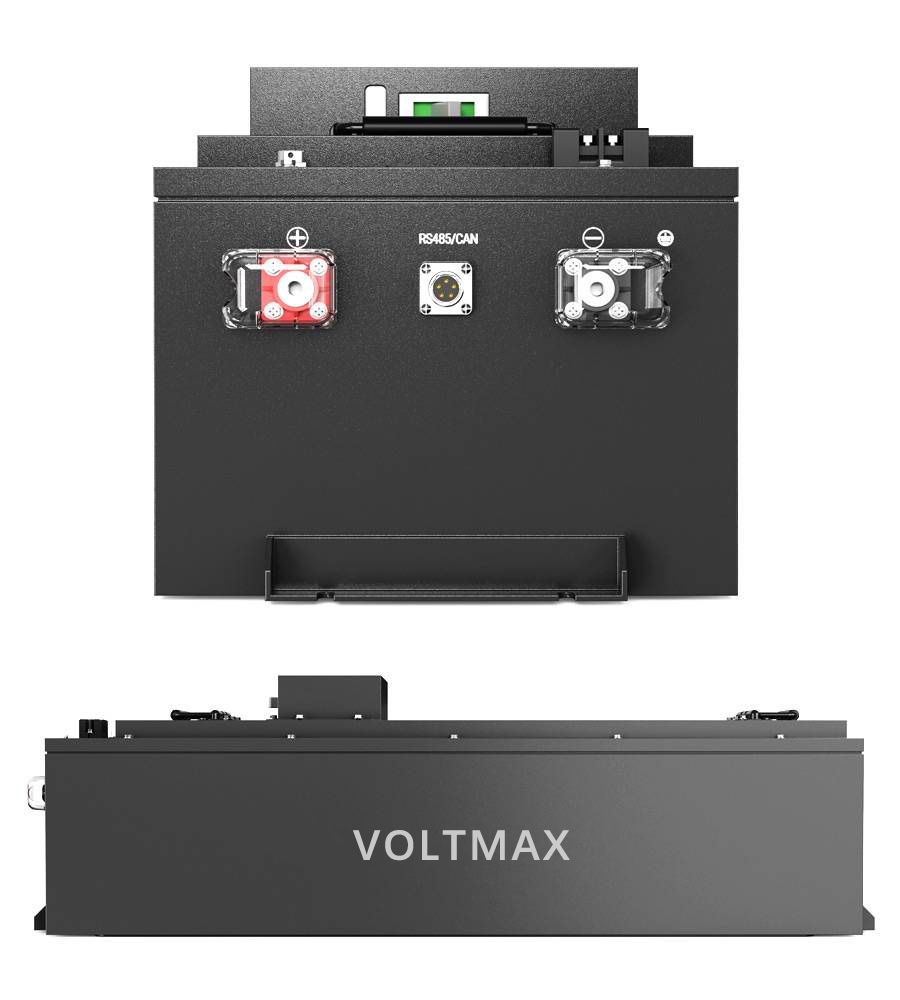

96V 100Ah golf cart lithium battery
Category: 96V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 96V
Nominal capacity 100Ah
Nominal energy :9.6KWh
Dimensions (length * width * height) :950 × 295 × 289 mm
Weight :90Kg
Working voltage range :65V-94.5V
IP rating: IP67
We have launched a 96V 100Ah golf cart lithium battery, which is a powerful and efficient energy solution designed for OEM, ODM and wholesale buyers. This lithium iron phosphate (LiFePO4) battery is suitable for a variety of scenarios such as golf carts and electric scooters, providing reliable power and outstanding performance.
Main function
High energy capacity: Nominal capacity of 100Ah, energy output of 15.36kWh, ensuring long-term operation in various scenarios and enhancing operational efficiency.
Durable design: Metal casing with IP65 protection rating, effectively dust-proof and water-proof, maintaining long-term durability even in harsh environments.
Long cycle life: It can support over 6,000 cycles at 80% depth of discharge (DOD), significantly reducing replacement costs compared to traditional lead-acid batteries.
Intelligent Battery Management System (BMS) : Advanced BMS provides comprehensive protection against overcharge, overdischarge, short circuit, etc., ensuring safe operation throughout the entire life cycle.
Customized options: Supports Bluetooth monitoring, self-heating function, multiple communication protocols and other personalized configurations to meet specific needs.
Product description
Aoge Power 96V 100Ah golf cart lithium battery is specially designed to provide reliable power for a variety of electric vehicles and equipment. With a nominal voltage of 76.8V, lithium iron phosphate (LiFePO4) technology ensures excellent energy density and efficiency. Its dimensions are 718×370×270 millimeters and its weight is approximately 126 kilograms. It is suitable for scenarios such as golf carts, electric tricycles, and sightseeing vehicles. The battery can operate efficiently within a wide temperature range of -20 °C to 60° C. The natural cooling system maintains optimal performance and enhances reliability without additional heat dissipation. The maximum continuous charging current is 200A and the peak discharging current is 400A. It supports high-load applications and prioritizes safety through an intelligent BMS. The BMS monitors key parameters such as voltage, current and temperature in real time to ensure safe operation. Choosing a 72V 200Ah lithium battery for golf carts not only ensures reliable power supply but also contributes to sustainable development through its environmentally friendly design. Long service life reduces the need for frequent replacement and ultimately lowers the total cost of ownership. This efficient, powerful and environmentally friendly solution is specially customized to meet your electric vehicle needs.
| 96V 100AH Lithium Battery | Specifications |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Model | AG96100LFP-EV |
| Rated Voltage | 96V |
| Rated Capacity | 100Ah |
| Nominal Energy | 9.6KWh |
| Maximum Charging Voltage | 109.5V |
| Discharge Cut-off Voltage | 75V |
| Standard Charging Current | 50A (2 hours) |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 250A |
| Peak Discharging Current | 300A (for 10 seconds) |
| Dimensions [Length x Width x Height] | 950×295×289mm |
| Weight | 90kg |
| IP Rating | IP67 |
| Cycle Life | >6000 cycles (80% DOD) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| External Communication | RS485 / CAN bus |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD display / RS232 / Anti-theft / Fan cooling / Heat sink / Active balancing / Solar MPPT / etc. |
| Battery Box | Metal |
| BMS | Intelligent BMS protection: overcurrent, overcharge, overdischarge, overload, overvoltage, undervoltage, over-temperature, overheating, low temperature. Automatic balancing of lithium batteries, etc. |
| Design Life | 20 years |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / IEC 62133 / CE / RoHS / UN38.3 / MSDS |
