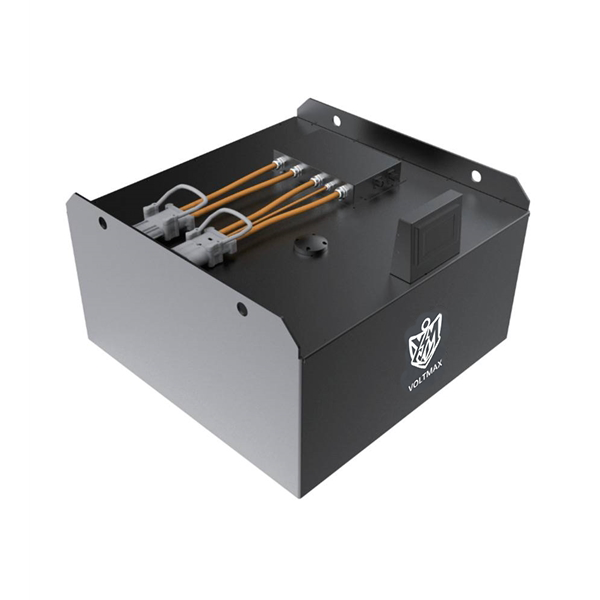

Aoge Power 83.2V 420Ah forklift lithium battery, an advanced energy solution specially designed for OEM, ODM and wholesale buyers. This lithium iron phosphate (LiFePO4) battery features outstanding performance and reliability, making it an ideal choice for heavy-duty material handling applications.

Main function

High energy capacity: With a rated capacity of 420Ah and an energy output of 34.9kWh, this battery can ensure stable power supply for various forklift operations, thereby enhancing the production efficiency of the entire shift.
Durable design: With a metal casing and an IP67 rating, it offers excellent dust and water protection, ensuring a long service life in harsh environments.
Advanced battery management system: The intelligent BMS continuously monitors key parameters to prevent overcharging, overdischarging and short circuits, thereby enhancing safety.
Long service life: The designed service life exceeds 3,500 cycles at 80% depth of discharge (DOD). Compared with traditional lead-acid batteries, this battery significantly reduces replacement costs.
Flexible transportation options: Delivery can be made through FOB, EXW or CIF, using various transportation methods such as sea, air or land.

Product description

Aoge Power 83.2V 420Ah forklift lithium battery is designed to provide reliable power for modern material handling operations. With a rated voltage of 83.2V, this lithium iron phosphate (LiFePO4) battery ensures excellent energy density and efficiency. Its dimensions are 950 x 592 x 450 mm and its weight is approximately 280 kg, making it suitable for various forklift models while providing powerful performance. This battery can operate effectively within a wide temperature range from -20°C to 60 °C, making it suitable for both indoor and outdoor applications. The natural cooling system maintains optimal performance without additional cooling, thereby enhancing reliability. The maximum charging current is 200A and the peak discharging current is 1000A.
This battery supports high-demand applications and prioritizes safety through its advanced battery management system (BMS). BMS can prevent serious problems such as overcharging and overheating, ensuring its safe operation throughout its service life. Investing in 83.2V 420Ah forklift lithium batteries not only provides a reliable power source but also contributes to sustainable development through its environmentally friendly design.
Long service life minimizes the need for frequent replacement, ultimately reducing your total cost of ownership. Choose our 83.2V 420Ah forklift lithium battery to tailor an efficient, powerful and environmentally friendly solution for your material handling needs.



80V 400AH Forklift Lithium BatterySpecifications
ModelAG80420LFP-LPFK
Battery TypeLithium Iron Phosphate
Rated Voltage83.2V
Rated Capacity420Ah
Rated Energy34.9kWh
Dimensions950×592×450mm
Weight~280kg
Maximum Continuous Charging Current200A
Maximum Continuous Discharging Current300A
Peak Discharging Current1000A (for 5 seconds)
Operating Voltage Range65V-94.5V
Internal Series/Parallel Connections26S2P
IP RatingIP67
Heat SinkNatural cooling
Cycle Life>3500 cycles (80% DOD)
Charging Temperature0°C~55°C
Discharging Temperature-20℃~60℃
Battery CaseMetal
External CommunicationRS485, CAN bus
Battery MonitoringCloud monitoring, 4G (antenna)
DisplayLCD screen on the case
Charging Interface TypeRema 320A
Discharging Interface TypeAnderson 350A
Silk Screen Printing / Label / Laser LogoYes
User ManualYes
OEM / ODMYes
ShippingYes
BMSAdvanced intelligent BMS monitors SOC, system voltage, current, battery voltage, battery temperature, overcharge, overdischarge, overcurrent, overvoltage, undervoltage, over-temperature, short circuit, etc.
