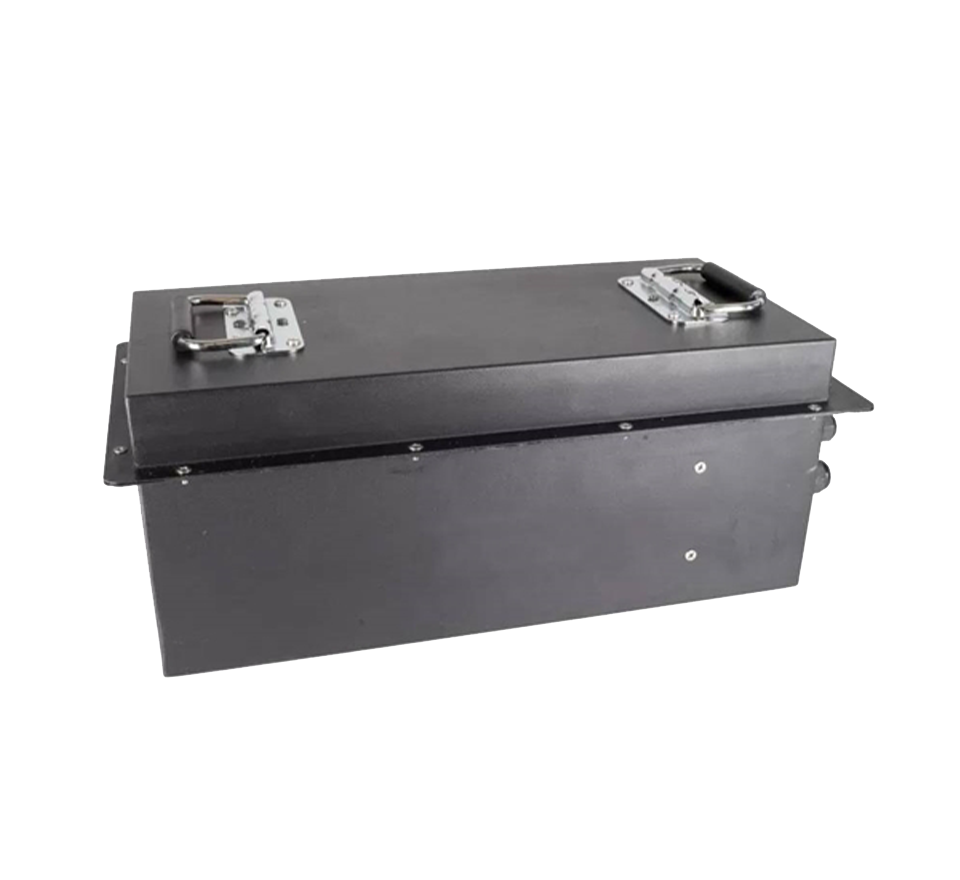

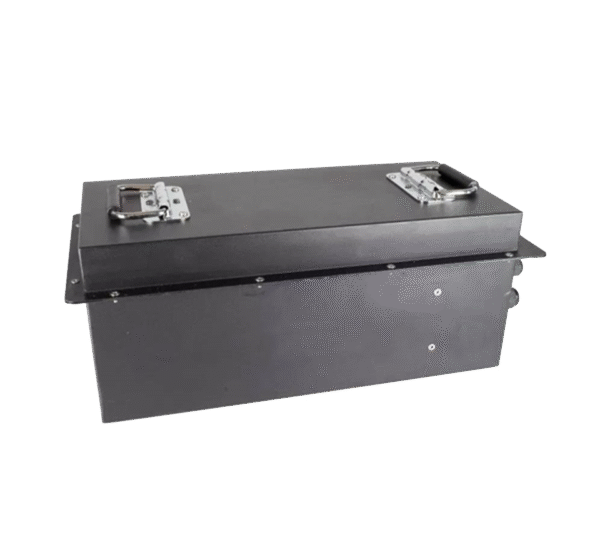

72V 50Ah lithium battery for golf carts
Category: 72V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 73.6V
Nominal capacity 50Ah
Nominal energy :83.95KWh
Dimensions (length * width * height) :458 × 347 × 189 mm/18 x 13.6 x 7.4in.
Weight :39.5Kg/87 lb
IP rating: IP65
This 72V 50Ah lithium battery is produced by Aoge Power, a leading manufacturer of high-performance lithium-ion solutions in China. The battery features a robust metal casing design, offering excellent durability and reliability, making it highly suitable for a wide range of scenarios including electric vehicles, Marine applications, and renewable energy systems.
Main function
Cell type: It adopts lithium iron phosphate (LiFePO4) cells, which are safer and have a longer lifespan.
High capacity: The nominal capacity is 50Ah, which can provide sufficient power for high-load applications.
Long cycle life: It can support over 5,000 cycles at 80% discharge depth, ensuring long-lasting performance.
Intelligent BMS: Equipped with an intelligent battery management system, it can comprehensively protect the battery from overcharging, overheating and short circuits.
Customization options: Supports OEM and ODM customization to meet specific needs.
Application scenarios
The 72V 50Ah lithium battery has a wide range of applications and can be used in the following fields:
Electric vehicles: Suitable for electric bicycles, electric scooters, and other electric transportation vehicles.
Renewable energy system: It is an ideal choice for solar energy storage solutions.
Application for ships: It can provide power for ships and other waterborne vehicles.
Electric tools: Provide reliable power for heavy machinery and equipment.
Backup power supply: Acts as a reliable energy source during power outages.
The nominal voltage of this battery is 73.6V, with a nominal energy output of 3680Wh. It is highly powerful. Its compact size (458 x 347 x 189 mm) and lightweight design (39.5 kg) make it easy to integrate into various systems without affecting the power output. The battery can operate efficiently within a wide temperature range of -20°C to 65°C (-4°F to 149°F), ensuring reliable performance in different environments.
In addition, the 72V 50Ah lithium battery has an IP66 protection level, which is dustproof and waterproof, making it suitable for outdoor applications. According to requirements, functions such as Bluetooth, WiFi, and LCD display screens can also be customized to meet the diverse needs of modern technology.
In conclusion, the 72V 50Ah lithium battery from Aoge Power is an excellent choice for those seeking high-quality and reliable energy solutions. As a trusted OEM factory in China, Aoge Power ensures that each battery meets strict quality standards while offering competitive prices and fast delivery options. Whether you need a single product or a batch order (minimum order quantity of 50 units), Aoge Power can meet your energy needs.
| Characteristic | Specifications |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Model | AG7350LFP-EV |
| Rated Voltage | 73.6V |
| Rated Capacity | 50Ah |
| Nominal Energy | 3.68KWh |
| Maximum Charging Voltage | 83.95V |
| Discharge Cut-off Voltage | 57.5V |
| Maximum Continuous Charging Current | 50A |
| Maximum Continuous Discharging Current | 50A |
| Peak Discharging Current | 200A (for 3 seconds) |
| Dimensions [Length x Width x Height] | 458×347×189mm / 18×13.6×7.4 inches |
| Weight | 39.5kg / 87 pounds |
| IP Rating | IP65 (higher rating available upon request) |
| Cycle Life | >6000 cycles (80% DOD) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Optional Upgrades | Bluetooth / APP / WiFi / RS485 / RS232 / CAN bus / Self-heating / Active balancing / Power switch / etc. |
| Charger | Yes |
| BMS | Intelligent BMS protection |
| Battery Box | Metal |
| Design Life | 10 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | IEC 62619, UL1642, UN38.3, MSDS |
