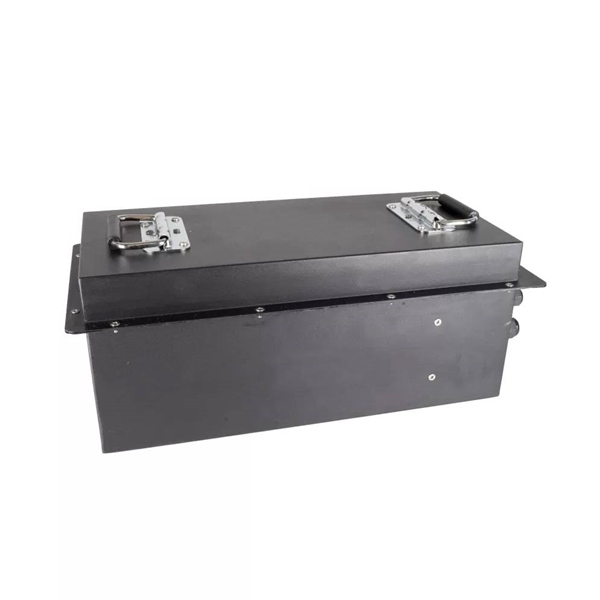

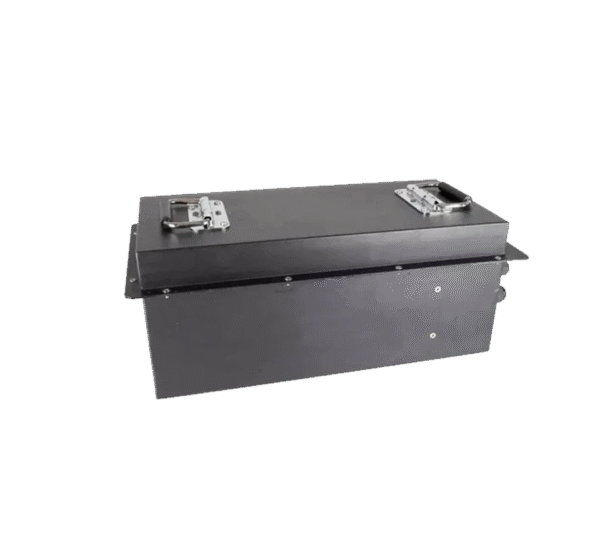

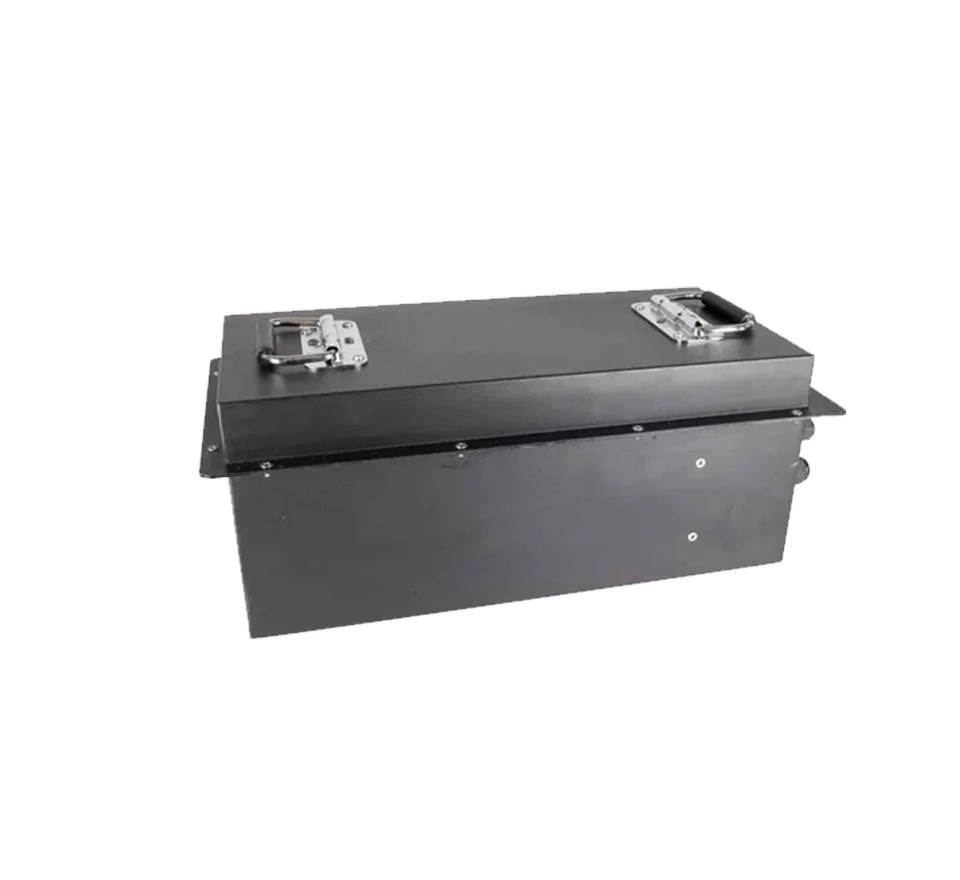

This 72V 50Ah lithium battery is manufactured by Aoge Power Lithium Battery, a leading manufacturer in China dedicated to high-performance lithium-ion solutions. Featuring a robust and durable metal casing, this battery boasts outstanding durability and reliability, making it highly suitable for a wide range of applications, including electric vehicles, Marine use, and renewable energy systems.
Main Features
Type: LiFePO4 can enhance safety and service life.
Large capacity: A nominal capacity of 50Ah can provide sufficient power for demanding applications.
Long cycle life: Over at a 4000 cycles 80% DOD discharge depth, ensuring long-lasting performance.
Intelligent battery Management System: Equipped with an intelligent battery management system, it can provide the best protection against overcharging, overheating and short circuit.
Customizable options: OEM and ODM customization are available to meet specific requirements.
Application
72V 50Ah lithium battery has a wide range of applications and can be used in various fields, including:
· Electric vehicles: It is highly suitable for electric bicycles, scooters and other electric vehicles.
· Renewable energy systems: highly suitable for solar storage solutions.
· Marine applications: Suitable for providing power for ships and other waterborne vehicles.
· Electric tools: Provide reliable energy for heavy-duty tools and machinery.
· Backup power supply: Serves as a reliable energy source during power outages. This battery has a nominal voltage of 73.6V and a nominal energy output of 3680Wh, demonstrating powerful performance. Its compact size (460 x 347 x 190 mm) and lightweight design (40 kg) make it easy to integrate into various systems without affecting power output.
This battery can operate efficiently within a wide temperature range of -20°C to 65°C (-4°F to 149°F), ensuring reliable performance in various environments.
The -72V 50Ah lithium battery also has an IP66 rating, is dust-proof and water-proof, and is suitable for outdoor applications. This battery features customizable functions such as Bluetooth, WiFi and LCD display (available upon request), designed to meet the demands of modern technology.
The 72V 50Ah lithium battery from Aoge Power is an excellent choice for those seeking high-quality and reliable energy solutions. As a trusted OEM factory in China, Aoge Power ensures that each battery meets strict quality standards, while offering competitive prices and fast delivery options. Whether you need a single battery or a bulk order (with a minimum order quantity of 50), Aoge Power is always ready to meet your energy demands.
| LFP TO REPLACE VRLA BATTERY FOR GOLF CART -AOGE 72V LPGC SERIES | |
| MODEL | AG7250LFP-LPGC |
| Rated Voltage | 73.6V |
| Rated Capacity | 50Ah |
| Rated Energy | 3680Wh |
| MAX.Charge Voltage | 83.95V |
| RECMD charge current(0.2C) | 10A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 83.95V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 25A |
| Discharge CUT-OFF Volt. | 57.5V |
| RECMD discharge current(0.2C) | 10A |
| Max.Discharge Current(1C) | 50A |
| Peak discharge current(2C) (MAX. 3 second) | 100A |
| Dimensions(L*W*H*TH)MM | 460*347*190 |
| Weight(APPROX)KG±3% | 40kg |
| Max. Parallel and Series QTY | NOT RECOMMENDED |
| IP Rating | IP65 |
| Cycle Life | >4000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | METAL |
| Design Life/WARRANTY | 10 Years/3 YEARS |
