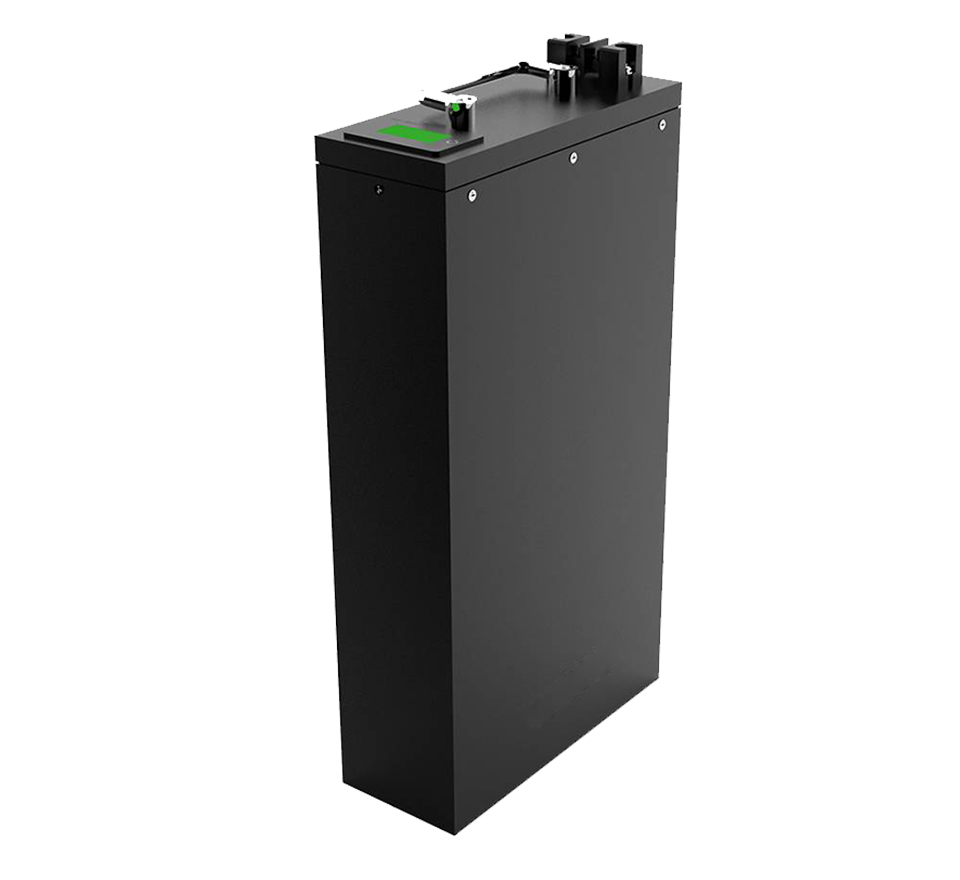

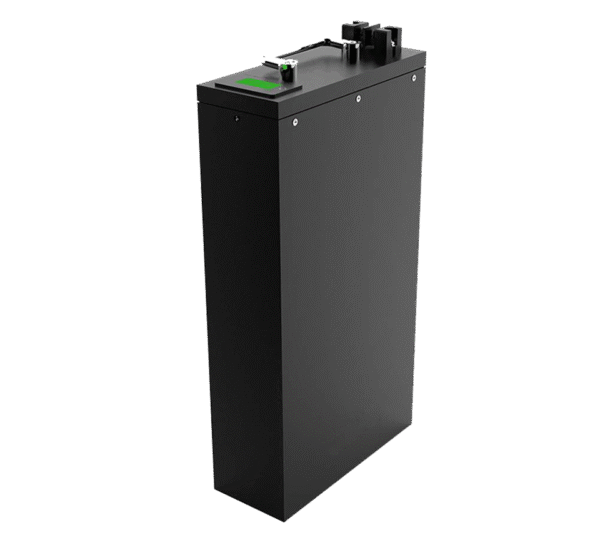

The 72V 30Ah lithium-ion NCM electric scooter battery is specially designed for high performance and high reliability, making it the top choice for high-end electric scooters. This advanced battery adopts the cutting-edge nickel-cobalt-manganese battery in 21700 format, ensuring outstanding energy density and service life. This battery has a nominal capacity of 30Ah and an energy output of up to 2160Wh, which can provide a longer driving range and stronger power for demanding driving. This battery is specially designed to adapt to various environmental conditions and features a metal casing with an IP65 protection rating, which is dust-proof and water-proof. The integrated JBD battery management system (BMS) can provide comprehensive overcharge, overheat and short-circuit protection to ensure safe and efficient operation. In addition, this battery also features user-friendly functions such as an LCD screen and Bluetooth connection for real-time monitoring.
Main Features
High Capacity: With a rated capacity of 30Ah and an energy output of 2160Wh, this battery can ensure extended operating time in demanding applications.
Durable design: With an IP65 rating, this battery is dustproof and waterproof, making it highly suitable for outdoor use in all kinds of weather conditions.
Long lifespan: Capable of exceeding 2,000 cycles at an 80% depth of discharge (DOD), this battery minimizes the need for frequent replacements, ensuring long-term reliability.
Intelligent Battery Management System (BMS): Advanced BMS can prevent overcharging, overheating and short circuits, ensuring safe operation during use.
Customizable Options: Offers OEM and ODM services, providing customized solutions to meet specific customer requirements.
Application
72V 30Ah lithium battery is widely used and suitable for various applications, including:
Electric scooter
Electric rickshaw
Electric tricycle
Electric motorcycle
Electric bicycle
Electric cabin scooter
Low-speed vehicle (LSV)
The maximum charging voltage is 84V and the discharge cut-off voltage is 54V. This battery has been optimized for various operational requirements. It can operate from -10°C to 50 °C, enabling it to adapt to various environments. The compact design makes installation easy while ensuring your equipment operates efficiently throughout the day. In addition, it also supports fast charging function, shortening the usage interval time.
| LFP TO REPLACE VRLA BATTERY FOR ELECTRIC SCOOTER -AOGE 72V LPES SERIES | |
| MODEL | AG7230LFP-LPES |
| Rated Voltage | 72V |
| Rated Capacity | 30Ah |
| Rated Energy | 2160Wh |
| CELL structure | NCM (21700) |
| MAX.Charge Voltage | 84V |
| RECMD charge current | 6A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 84V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 15A |
| Discharge CUT-OFF Volt. | 54V |
| RECMD discharge current | 6A |
| Max.Discharge Current(1C) | 30A |
| Peak discharge current(2C) (MAX. 3 second) | 60A |
| Dimensions(L*W*H*TH)MM | 210*85*410 |
| Weight(APPROX)KG±3% | 15KG |
| Max. Parallel and Series QTY | NOT RECOMMENDED |
| IP Rating | IP65 |
| Cycle Life | >2000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | Anderson Connector |
| Battery Case | METAL +LCD |
| Design Life/WARRANTY | 10 Years/3 YEARS |
