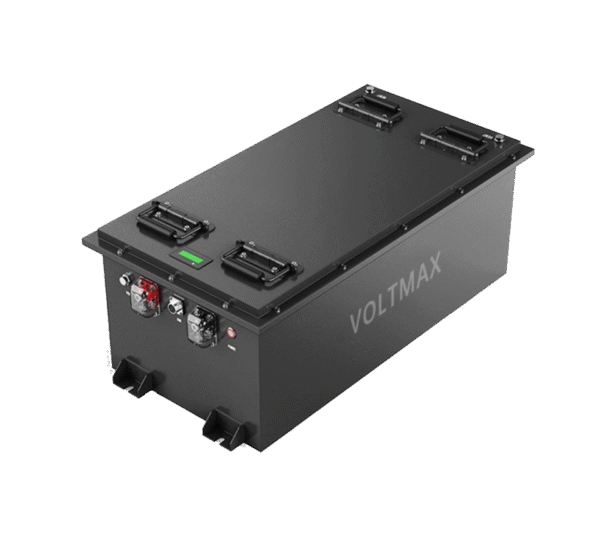

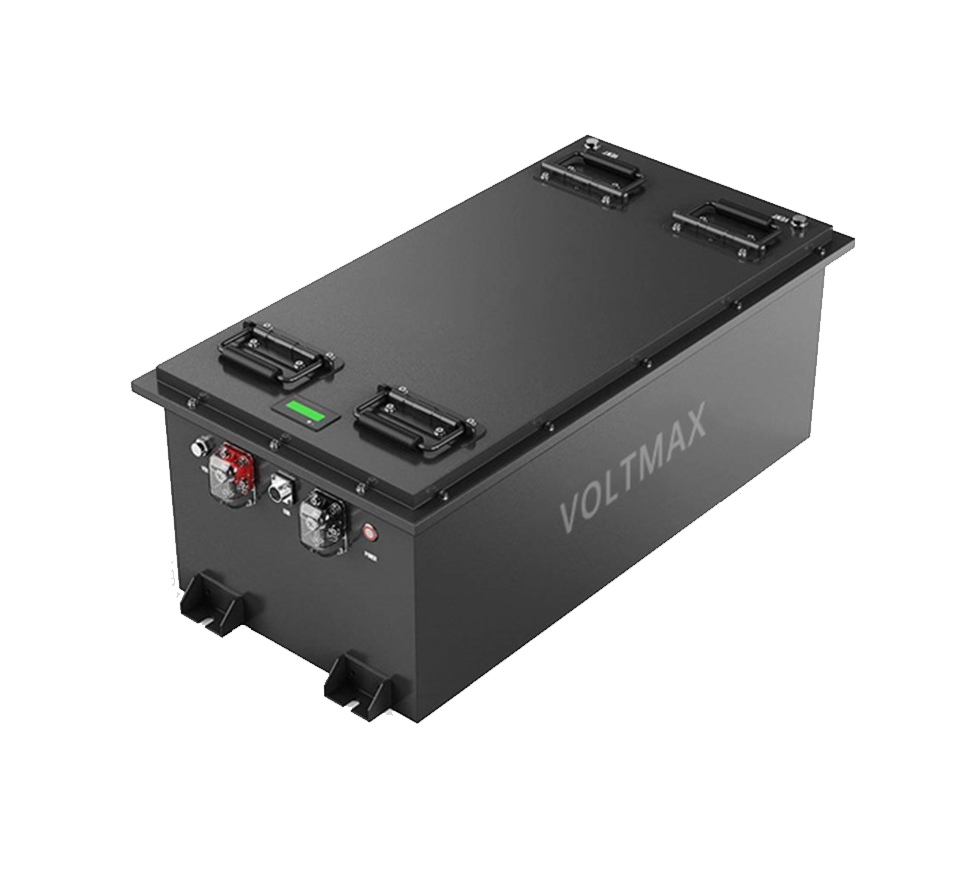

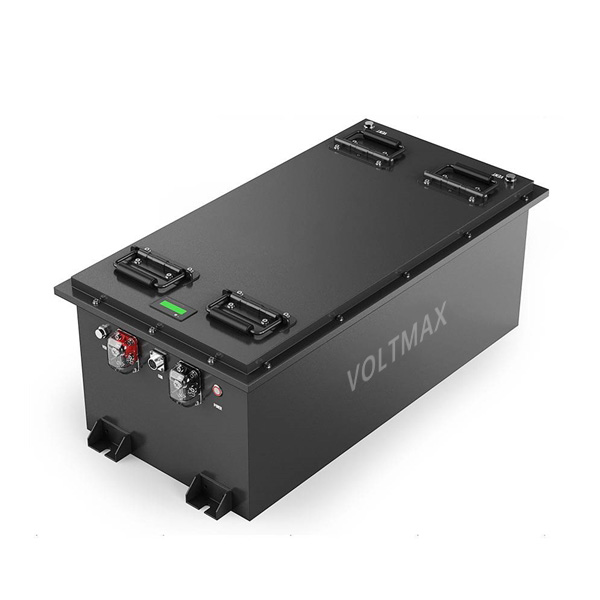

72V 180Ah golf cart lithium battery
Category: 72V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 76.8V
Nominal capacity :180Ah
Nominal energy :13.82KWh
Dimensions (length * width * height) :718 × 370 × 270 mm
Weight ：123Kg
IP rating: IP65
Explore the 72V 180Ah golf cart lithium battery, which is a high-performance energy solution designed for various electric vehicles such as golf carts and electric scooters. With advanced lithium iron phosphate (LiFePO4) technology, this battery features outstanding durability, safety characteristics and customizable options, making it an ideal choice for Oems, ODM manufacturers and wholesale purchasers seeking reliable power solutions.
Main function
High energy output: Rated capacity 180Ah, energy up to 13.82kWh, ensuring long-range driving for electric vehicles.
Long cycle life: Supports over 6,000 cycles at 80% discharge depth (DOD), significantly reducing replacement costs.
Multi-level security protection: Equipped with an intelligent battery management system (BMS), which can prevent potential risks such as overcharging and overheating.
Widely applicable: Suitable for various electric vehicles such as golf carts, sightseeing vehicles, and electric tricycles.
Customization options: Support for OEM/ODM project customization. Optional features include Bluetooth connection, GPS tracking, self-heating function, etc.
Application scenarios
The 72V 180Ah golf cart lithium battery is specially designed to meet the power requirements of modern electric vehicles. It adopts advanced lithium iron phosphate technology, with a nominal voltage of 76.8V, a capacity of 180Ah, and an energy output of up to 13.82kWh. This ensures that the vehicle can travel longer distances without frequent charging.
The battery size is 718mm x 370mm x 270mm, weighing 123kg. It is easy to integrate into various vehicle models while providing strong performance. The IP65 protection level can prevent dust and water, making it suitable for outdoor use.
Safety is the core of the design: the advanced battery management system (BMS) continuously monitors key parameters such as voltage and temperature, preventing potential hazards such as overcharging or thermal runaway to enhance safety.
This battery supports various scenarios such as golf carts, electric tricycles, and scooters. With a lifespan of over 6000 cycles at 80% DOD, it can withstand high-intensity use and maintain performance.
In addition, the battery also offers optional configurations such as self-heating and Bluetooth connection to enhance the user experience. The shell color can be customized (black, white, gray), making it easy to match the brand image.
Whether upgrading the fleet or seeking a source for OEM projects, Aoge Power 72V 180Ah golf cart lithium battery is the preferred solution for efficiency and sustainability in the electric vehicle field.
| Characteristic | Specifications |
| Model | AG76180LFP-EV |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 76.8V |
| Rated Capacity | 180Ah |
| Nominal Energy | 13.82KWh |
| Maximum Charging Voltage | 87.6V |
| Discharge Cut-off Voltage | 60V |
| Maximum Continuous Charging Current | 180A |
| Maximum Continuous Discharging Current | 180A |
| Peak Discharging Current | 360A (for 10 seconds) |
| Dimensions [Length x Width x Height] | 718×370×270mm |
| Weight | 123kg |
| IP Rating | IP65 |
| Cycle Life | >6000 cycles (80% DOD) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| LCD Display | Yes |
| Optional Upgrades | Self-heating / Bluetooth / APP / WiFi / 4G / GPS / RS485 / RS232 / CAN bus / Active balancing / Anti-theft / Solar MPPT / Solar panel / Inverter / Fan cooling / Heat sink / etc. |
| BMS | Intelligent BMS protection: overcurrent, overcharge, overdischarge, overload, overvoltage, undervoltage, over-temperature, overheating, etc. |
| Battery Box | Metal |
| Design Life | 10 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / IEC 62133 / CE / RoHS / UN38.3 / MSDS |
