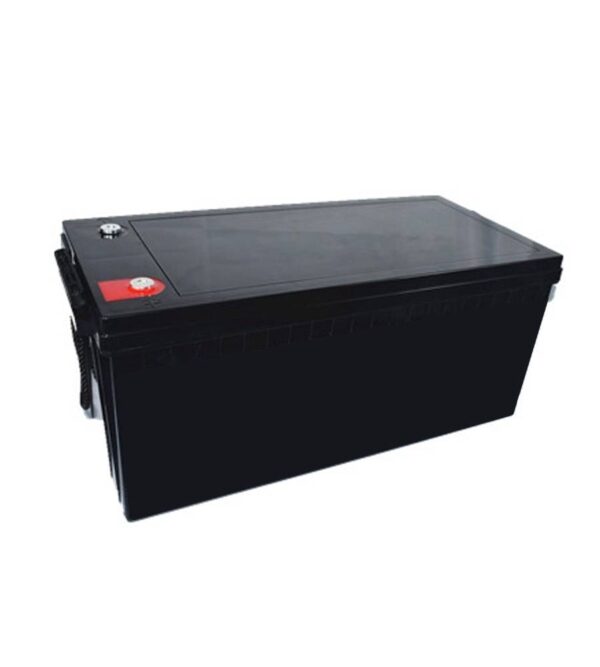

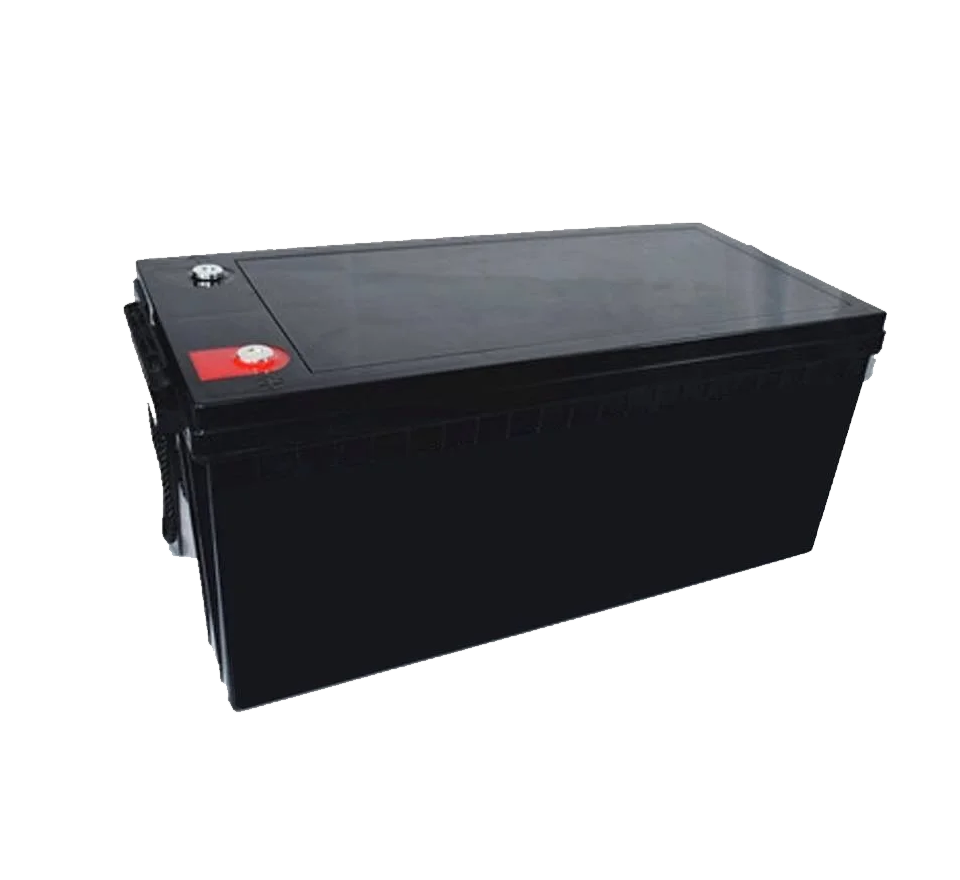

This 60V 50Ah lithium battery is produced by Aoge Power a reputable manufacturer based in China that specializes in high-quality lithium-ion batteries. Adopting the advanced LiFePO4 technology, this battery provides reliable and efficient power solutions for various applications, including electric scooters, electric rickshaws and automated guided vehicles (AGVs).
Key features:
High energy density: With a rated capacity of 50Ah and an energy output of 3,040Wh, this battery is highly suitable for powering demanding applications that require continuous energy.
Powerful protection: With an IP66 rating, this battery is completely dust-proof and water-proof, making it highly suitable for outdoor use and harsh environments.
Long lifespan: Designed to last over 4,000 cycles at 80% depth of discharge (DOD), this battery minimizes the need for frequent replacement and offers outstanding value over time.
Intelligent Battery Management System (BMS) : Equipped with an intelligent BMS, it can prevent overcharging, overheating and short circuits, ensuring safe operation during use.
Customizable options: As an OEM provider, Offers customization options to meet specific requirements for size and functionality.
The -60V 50Ah lithium battery has a wide range of applications and is suitable for various uses, including
· Electric scooters
· Electric rickshaws and electric tricycles
· Electric motorcycles · sweepers and floor cleaners
· Golf carts · Low-speed vehicles (LSVS)
· Automated guided Vehicles (AGVs)
The maximum charging voltage is 69.3V and the discharge cut-off voltage is 47.5V. This battery has been optimized for various operational requirements. It can operate from -20°C to 65 °C, enabling it to adapt to various environments. The compact design makes installation easy while ensuring your equipment operates efficiently throughout the day. In addition, it also supports fast charging function, shortening the usage interval time.
Committed to providing high-quality lithium-ion batteries to enhance your operational efficiency and sustainability. The 60V 50Ah lithium battery not only reduces downtime but also helps lower operating costs due to its high efficiency and long service life. Investing in this battery means choosing a reliable power solution that not only meets the demands of modern electric vehicles and industrial applications but also supports your business growth and sustainable development goals.
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE/GOLF CART -AOGE 60V LPRV/LPGC SERIES | |
| MODEL | AG6050(I)LFP-LPRV |
| Rated Voltage | 60.8V |
| Rated Capacity | 50Ah |
| Rated Energy | 3040Wh |
| MAX.Charge Voltage | 66-69.35V |
| RECMD charge current(0.2C) | 10A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 58.4V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 25A |
| Discharge CUT-OFF Volt. | 47.5V |
| RECMD discharge current(0.2C) | 10A |
| Max.Discharge Current(1C) | 50A |
| Peak discharge current(2C) (MAX. 3 second) | 100A |
| Dimensions(L*W*H*TH)MM | 523*270*220 |
| Weight(APPROX)KG±3% | 24kg |
| Max. Parallel and Series QTY | NOT RECOMMENDED |
| IP Rating | IP65 |
| Cycle Life | >4000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
