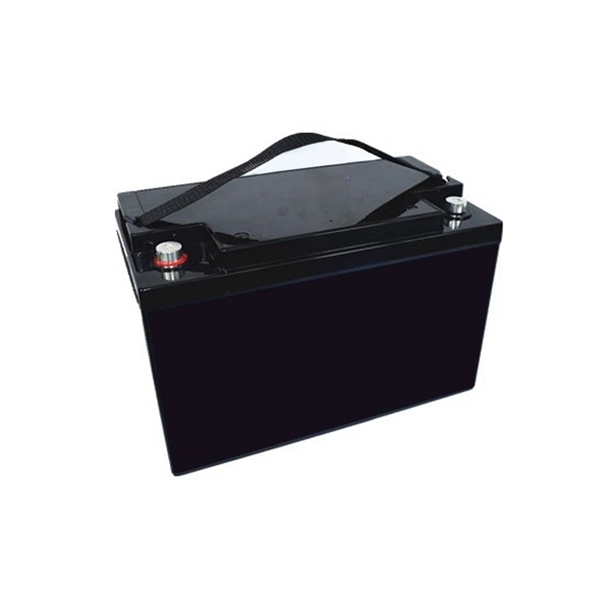

This 60V30Ah lithium battery is produced by Lithium Battery, a leading manufacturer based in China specializing in high-performance lithium-ion batteries. Adopting advanced LiFePO4 technology, this battery is designed to provide reliable energy solutions for various applications, ensuring optimal performance and safety.
Key features:
High energy capacity: With a rated capacity of 30Ah and an energy output of 1,824Wh, this battery is designed to effectively power high-demand devices.
Outstanding cycle life: The designed service life exceeds 4,000 cycles when the depth of discharge (DOD) reaches 80%, significantly reducing the need for frequent replacement.
Durable building: The battery has an IP65 rating, which can prevent dust and water from entering and is suitable for use in challenging environments.
Intelligent Battery Management System (BMS) : The intelligent BMS can prevent overcharging, overheating and short circuits, enhancing safety during operation.
Optional GPS tracking: This battery features 4G-enabled GPS functionality, allowing for real-time tracking and monitoring of your power supply.
60V 30Ah LiFePO4 lithium battery Suitable for various applications, including:
· Electric scooter
· Electric pedal carts and electric tricycles
· Electric motorcycles
· Automated Guided Vehicles (AGV)
· Renewable energy storage systems
· Marine applications such as yachts and trawling motors
The maximum charging voltage is 71.4V and the discharge cut-off voltage is 46.75V. This battery has been optimized for various operational requirements. It can operate from -20°C to 65 °C, enabling it to adapt to various environments. The lightweight design makes installation easy while ensuring your device operates efficiently throughout the day. In addition, it also supports fast charging function, shortening the usage interval time.
60V 30Ah Lithium Battery not only reduces downtime but also helps lower operating costs due to its high efficiency and long lifespan. Investing in this battery means choosing a Aoge Power solution that can meet the needs of modern electric vehicles and industrial applications, and support your business growth and sustainability goals.
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE/GOLF CART -AOGE 60V LPRV/LPGC SERIES | |
| MODEL | AG6030LFP-LPRV |
| Rated Voltage | 60.8V |
| Rated Capacity | 30Ah |
| Rated Energy | 1824Wh |
| MAX.Charge Voltage | 66-69.35V |
| RECMD charge current(0.2C) | 6A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 58.4V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 15A |
| Discharge CUT-OFF Volt. | 47.5V |
| RECMD discharge current(0.2C) | 6A |
| Max.Discharge Current(1C) | 30A |
| Peak discharge current(2C) (MAX. 3 second) | 90A |
| Dimensions(L*W*H*TH)MM | 330*172*237 |
| Weight(APPROX)KG±3% | 15KG |
| Max. Parallel and Series QTY | NOT RECOMMENDED |
| IP Rating | IP65 |
| Cycle Life | >4000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
