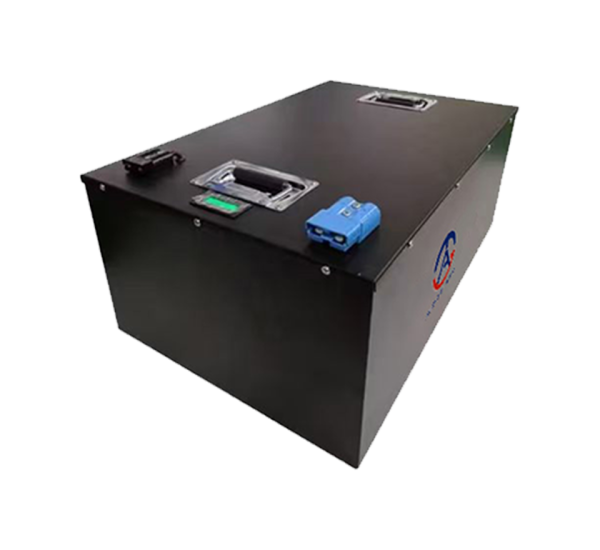

This battery is a 60V 200Ah lithium battery produced by Aoge Power Lithium Battery, a leading high-performance lithium-ion battery manufacturer in China. This battery is specially designed for electric scooters, electric tricycles, electric motorcycles, vacuum cleaners and automated guided vehicles (AGVs), providing reliable power and outstanding efficiency for a wide range of application scenarios.
Key features:
High energy capacity:With a rated capacity of 200Ah and an impressive energy output of 12.16 kilowatt-hours, this battery ensures extended operating time in demanding applications.
Durable building: The battery has an IP67 rating, ensuring complete dust and water resistance, making it suitable for outdoor use in challenging environments.
Long lifespan: Capable of exceeding 4,000 cycles at an 80% depth of discharge (DOD) , this battery minimizes the need for frequent replacement and offers outstanding long-term value.
Intelligent Battery Management System (BMS) : Equipped with advanced BMS, it can prevent overcharging, overheating and short circuits, ensuring safe operation at all times.
Customizable options:Offers OEM and ODM services, providing customized solutions to meet specific customer requirements.
Application
The -60V 200Ah lithium battery has a wide range of applications and is suitable for various uses, including
· Electric scooters
· Electric rickshaws and electric tricycles
· Electric motorcycles · sweepers and floor cleaners
· Golf carts · Low-speed vehicles (LSVS)
· Automated guided Vehicles (AGVs)
The maximum charging voltage is 69.3V and the discharge cut-off voltage is 50V. This battery has been optimized for various operational requirements. It can operate from -20°C to 65 °C, enabling it to adapt to various environments. The sturdy design makes installation easy while ensuring your equipment operates efficiently throughout the day. In addition, it also supports a fast charging function, reducing the turnaround time between uses.
Aoge Power Committed to providing high-quality lithium-ion batteries to enhance your operational efficiency and sustainability. The 60V 200Ah lithium battery not only reduces downtime but also helps lower operating costs due to its high efficiency and long service life. Investing in this battery means choosing a reliable power solution that not only meets the demands of modern electric vehicles and industrial applications but also supports your business growth and sustainable development goals.
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE/GOLF CART -AOGE 60V LPRV/LPGC SERIES | |
| MODEL | AG60200LFP-LPRV/LPGC |
| Rated Voltage | 60.8V |
| Rated Capacity | 200Ah |
| Rated Energy | 12160Wh |
| MAX.Charge Voltage | 66-69.35V |
| RECMD charge current(0.2C) | 20A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 58.4V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 100A |
| Discharge CUT-OFF Volt. | 47.5V |
| RECMD discharge current(0.2C) | 20A |
| Max.Discharge Current(1C) | 100A |
| Peak discharge current(2C) (MAX. 3 second) | 300A |
| Dimensions(L*W*H*TH)MM | 1000*600*180 |
| Weight(APPROX)KG±3% | 150KG |
| Max. Parallel and Series QTY | NOT RECOMMENDED |
| IP Rating | IP65 |
| Cycle Life | >4000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | ACTL PLUG |
| Battery Case | METAL WITH LCD |
| Design Life/WARRANTY | 10 Years/3 YEARS |
