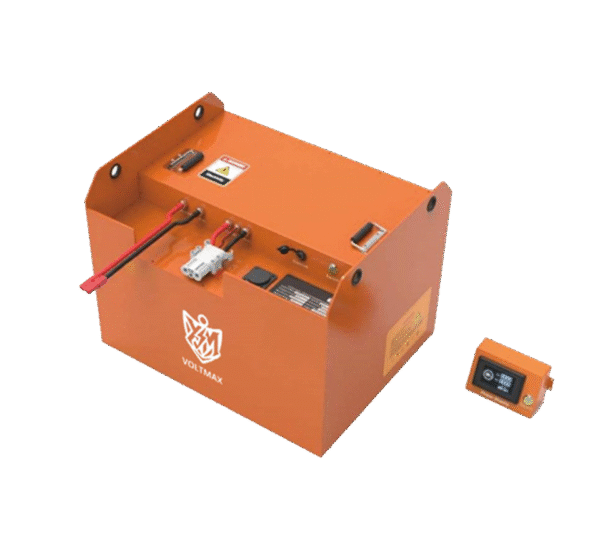

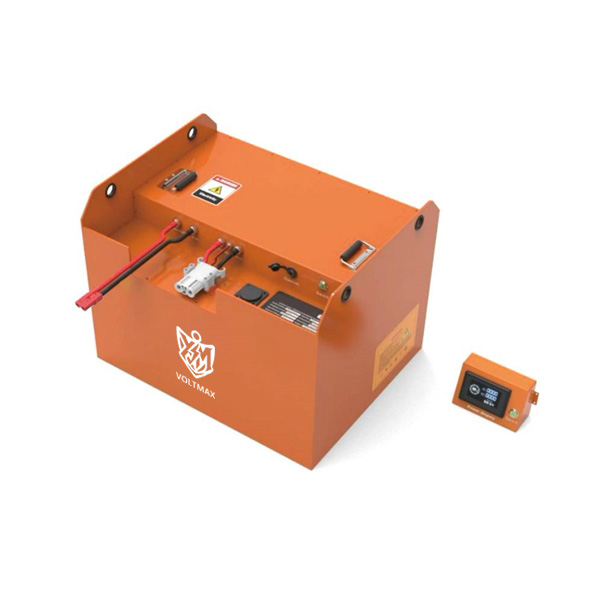

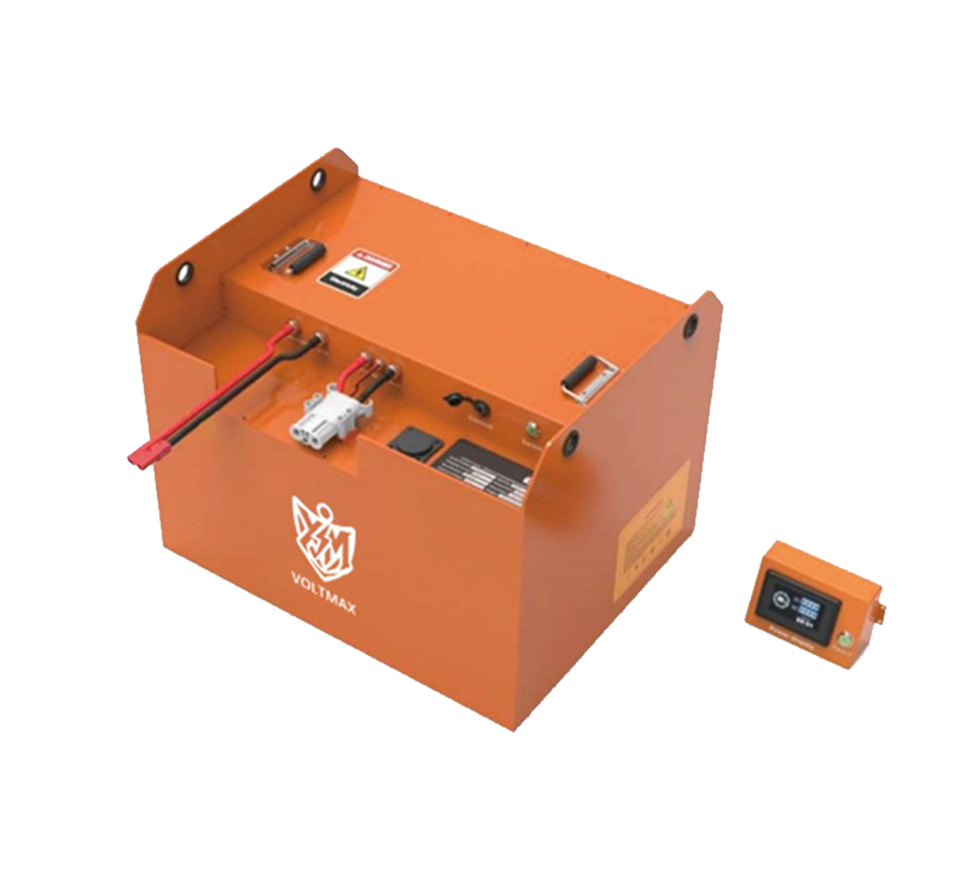

51.2V 48V 600Ah 608h Forklift lithium battery
Category: 48V Forklift lithium battery
Lithium battery type: LiFePO4
Rated voltage: 51.2V
Nominal capacity :608Ah
Nominal energy :31.13kWh
Dimensions (length * width * height) :800 x 630 x 600 mm
Weight :〜352 Kg
Working voltage range :40V-58.4V
Aoge Power 51.2V 608Ah forklift lithium battery, a high-capacity energy solution specially designed for OEM, ODM and wholesale buyers. This lithium iron phosphate (LiFePO4) battery features outstanding performance and reliability, making it highly suitable for demanding material handling applications
Main function
Impressive energy capacity: With a rated capacity of 608Ah and an energy output of 31.13kWh, this battery ensures reliable power supply for various forklift operations, thereby maximizing the production efficiency of the entire shift.
Robust structure: Equipped with a built-in metal casing and rated IP65, it offers excellent dust and water protection, ensuring durability in harsh environments.
Advanced battery management system: The intelligent BMS continuously monitors key parameters to prevent overcharging, overdischarging and short circuits, thereby enhancing safety.
Long service life: The designed service life exceeds 4,000 cycles at 80% depth of discharge (DOD). Compared with traditional lead-acid batteries, this battery significantly reduces replacement costs.
Flexible transportation options: Delivery can be made through FOB, EXW or CIF, using various transportation methods such as sea, air or land.
Product description
Aoge Power 51.2V 608Ah forklift lithium battery is designed to provide reliable power for modern material handling operations. With a rated voltage of 51.2V, this lithium iron phosphate (LiFePO4) battery ensures excellent energy density and efficiency. Its dimensions are 800 x 630 x 600 mm and its weight is approximately 352 kg, making it suitable for various forklift models and providing powerful performance.
This battery can operate effectively within a wide temperature range of -20°C to 60°C, and is suitable for both indoor and outdoor applications. The natural cooling system can maintain optimal performance without the need for additional cooling, thereby enhancing reliability.
The maximum charging current is 300A and the peak discharge current is 1200A. This battery is suitable for high-demand applications and prioritizes safety through its advanced Battery Management System (BMS). The BMS can prevent serious issues such as overcharging and overheating, ensuring safe operation throughout its entire lifespan.
Investing in the 51.2V 608Ah forklift lithium battery not only provides a reliable power source, but also contributes to sustainable development through its environmentally friendly design. The long lifespan minimizes the need for frequent replacements, ultimately reducing your total cost of ownership.
Choose our 51.2V 608Ah forklift lithium battery to tailor an efficient, powerful and environmentally friendly solution to meet your material handling requirements.
48V 600AH Forklift Lithium Battery | Specifications |
Model | AG48608LFP-LPFK |
Battery Type | Lithium Iron Phosphate |
Rated Voltage | 51.2V |
Rated Capacity | 608Ah |
Rated Energy | 31.13kWh |
Dimensions | 800×630×600mm |
Weight | 352kg |
Maximum Continuous Charging Current | 300A |
Maximum Continuous Discharging Current | 600A |
Peak Discharging Current | 1200A (for 3 seconds) |
Operating Voltage Range | 40V-58.4V |
IP Rating | IP65 |
Heat Sink | Natural cooling |
Cycle Life | >4000 cycles (80% DOD) |
Charging Temperature | 0°C~55°C |
Discharging Temperature | -20℃~60℃ |
Battery Case | Metal |
External Communication | RS485, CAN bus, 4G |
Warranty Policy | 5 years |
Charging Interface Type | Rema 320A |
Discharging Connector Type | Anderson 350A |
Silk Screen Printing / Label / Laser Logo | Yes |
User Manual | Yes |
OEM / ODM | Yes |
Shipping | Yes |
BMS | Advanced intelligent BMS monitors SOC, system voltage, current, battery voltage, battery temperature, overcharge, overdischarge, overcurrent, overvoltage, undervoltage, over-temperature, short circuit, etc. |
