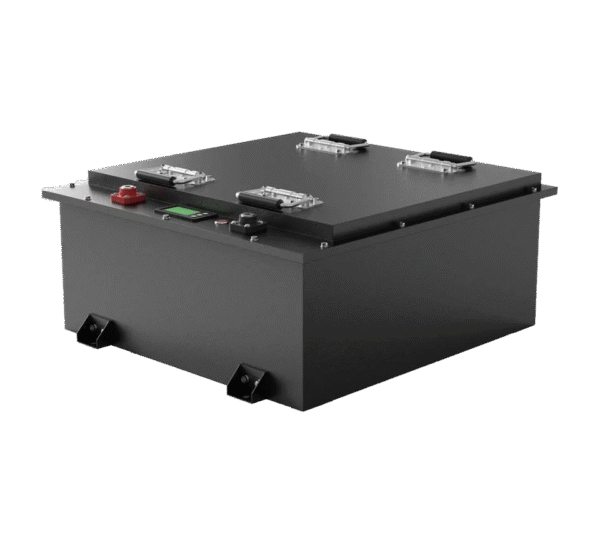

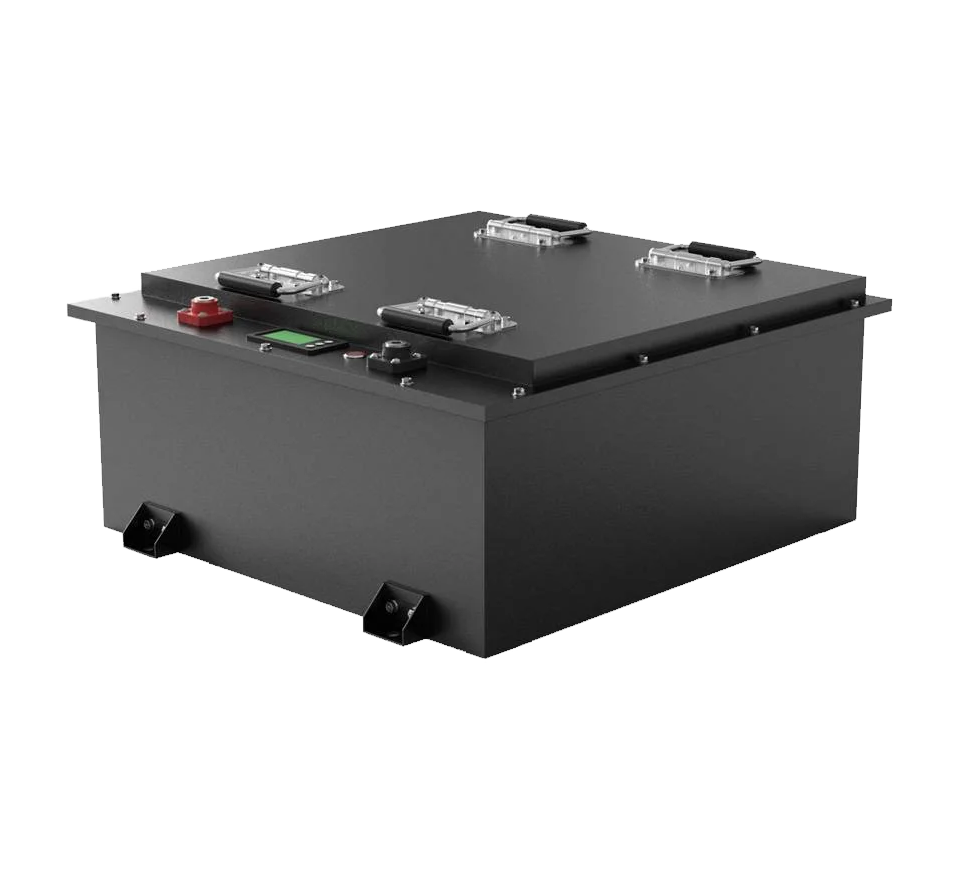

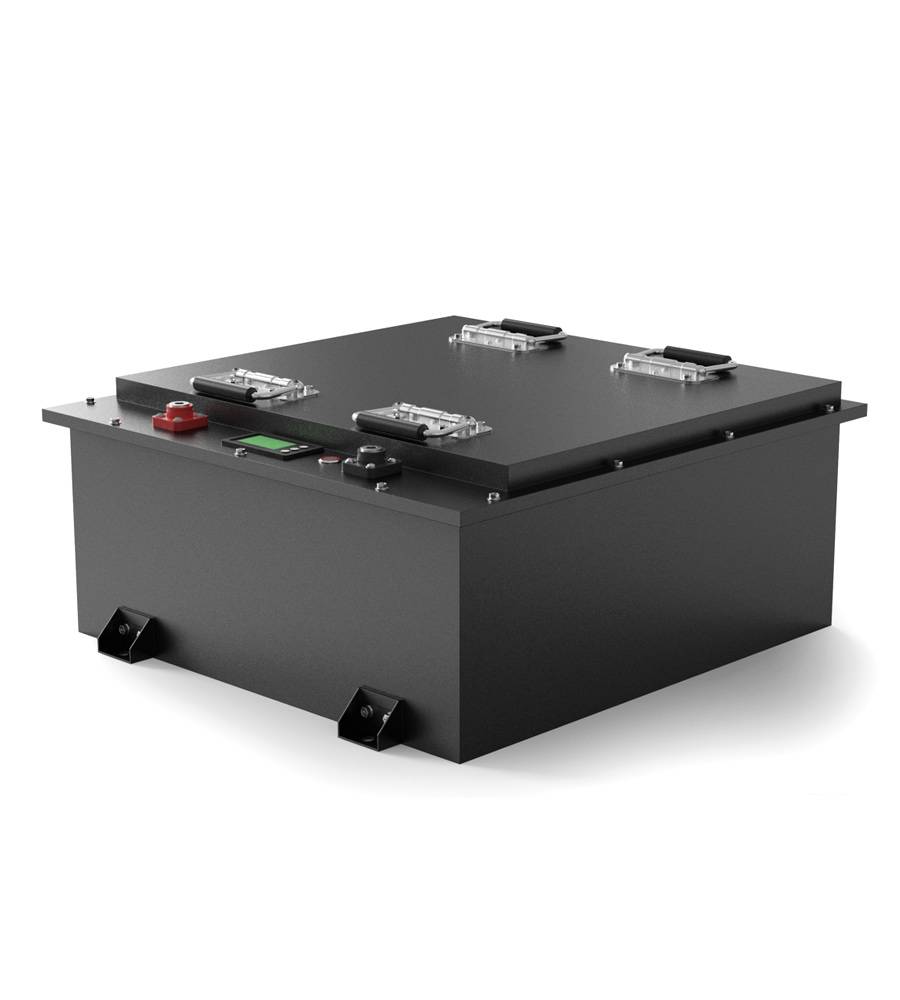

This 48V 200Ah lithium battery is from Aoge Power, a leading manufacturer based in China, specializing in high-performance lithium-ion batteries. Adopting advanced LiFePO4 technology, this battery offers reliable energy solutions for various applications, ensuring long-lasting performance and safety.
Key features:
High energy output: With a rated capacity of 200Ah and an energy output of 10 kilowatt-hours, this battery is highly suitable for powering demanding applications.
Outstanding cycle life: The designed service life exceeds 4,000 cycles when the depth of discharge (DOD) reaches 80%, significantly reducing the need for frequent replacement.
Durable building: The battery has an IP65 rating, which can prevent dust and water from entering and is suitable for use in challenging environments.
Intelligent Battery Management System (BMS) : Equipped with an intelligent BMS, it can prevent overcharging, overheating and short circuits, ensuring safe operation.
Multi-functional connection options: Supports optional functions such as Bluetooth, WiFi and LCD display to enhance monitoring and control.
48V 200Ah Lithium Battery Suitable for various applications, including:
· Electric scooter
· Electric pedal carts and electric tricycles
· Electric motorcycles
· Automated Guided Vehicles (AGV)
· Renewable energy storage systems
The charging voltage is 54.75V and the discharging voltage is 37.5V. This battery has been optimized for various operational requirements. It can operate from -20°C to 60 °C, making it flexible enough to be suitable for various industrial environments. The lightweight design of the battery makes it easy to install and integrate into existing systems, while its high performance ensures that your device operates efficiently throughout the day. In addition, the battery also supports fast charging, thereby reducing the turnaround time between uses.
48V 200Ah Lithium Battery not only reduces downtime but also helps lower operating costs due to its high efficiency and long lifespan. Investing in this battery means choosing a Aoge Power solution that can meet the needs of modern electric vehicles and industrial applications, and support your business growth and sustainability goals.
| LFP TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE/GOLF CART -AOGE 48V LPRV/LPGC SERIES | |
| MODEL | AG48200LFP-LPRV/LPGC |
| Rated Voltage | 51.2V |
| Rated Capacity | 200Ah |
| Rated Energy | 10240Wh |
| MAX.Charge Voltage | 56-58.4V |
| RECMD charge current(0.2C) | 20A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 58.4V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 100A |
| Discharge CUT-OFF Volt. | 40V |
| RECMD discharge current(0.2C) | 20A |
| Max.Discharge Current(1C) | 100A |
| Peak discharge current(2C) (MAX. 3 second) | |
| Dimensions(L*W*H*TH)MM | 510*500*235 |
| Weight(APPROX)KG±3% | 72KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >4000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | METAL |
| Design Life/WARRANTY | 10 Years/3 YEARS |
