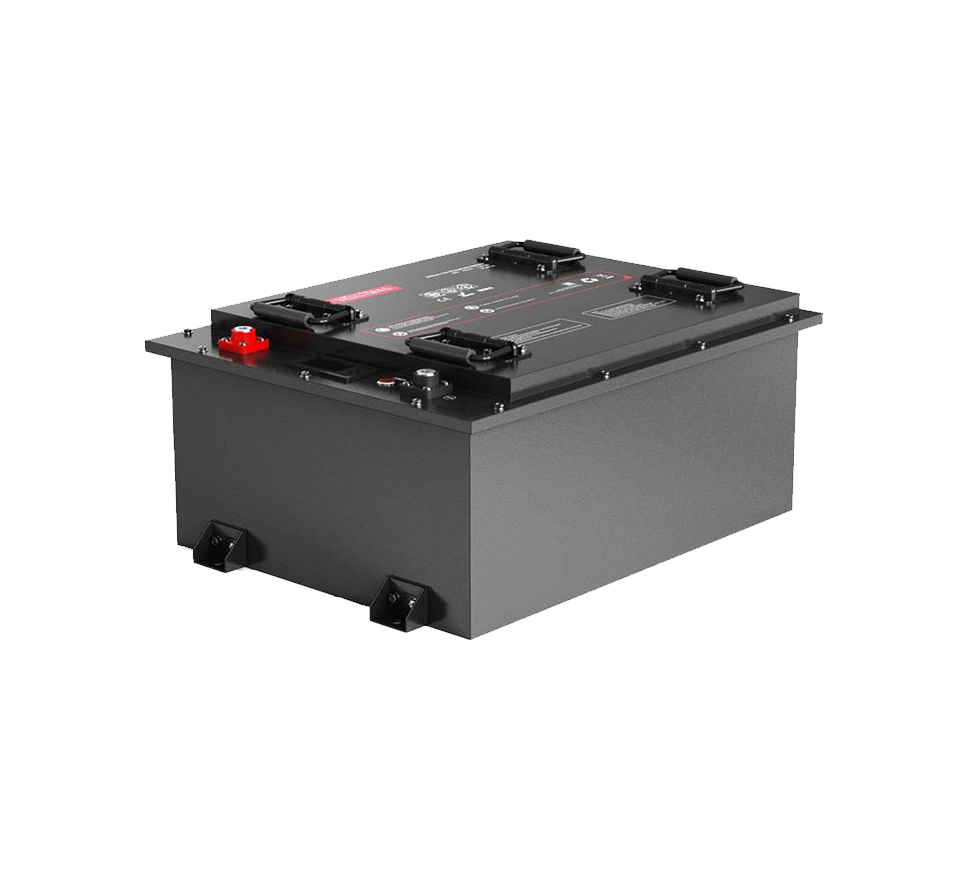

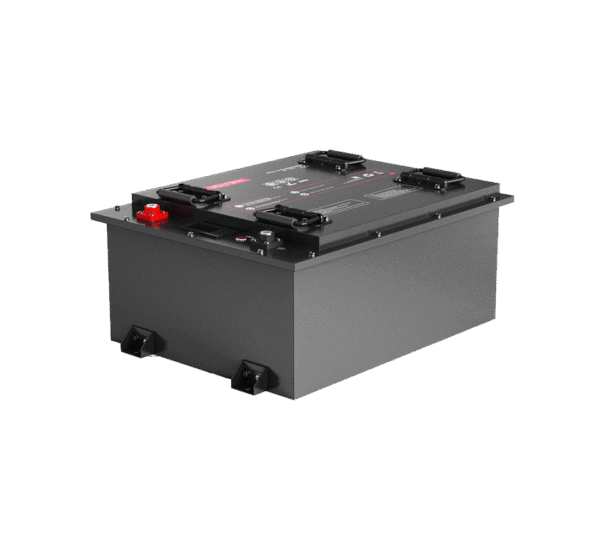

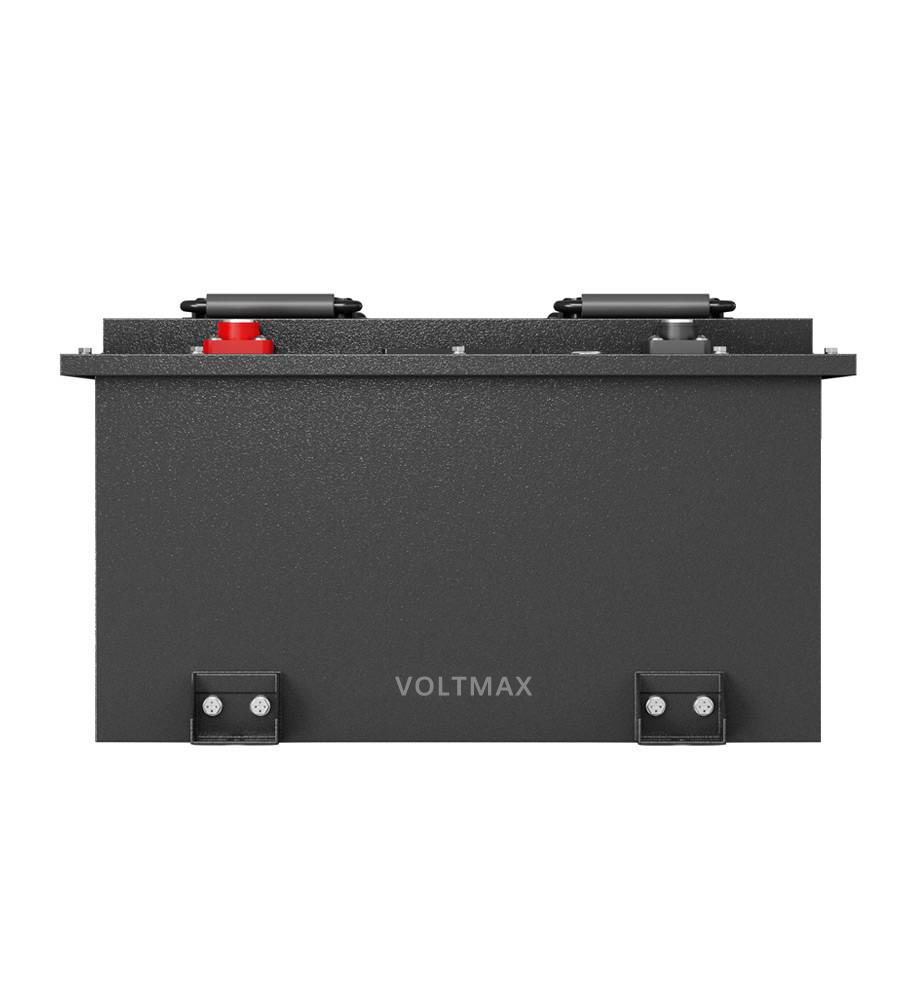

48V 160Ah golf cart lithium battery (BMS31)
Category: 48V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 51.2V
Nominal capacity :160Ah
Nominal energy : 8.19KWh
Dimensions (length * width * height) ：800 × 332 × 332 mm
Weight ：75Kg
IP rating: IP67
Aoge Power Introducing a 48V (51.2V) 160Ah golf cart lithium battery, this is a powerful energy solution designed for Oems, ODMs and wholesale purchasers. This lithium iron phosphate (LiFePO4) battery provides reliable power for a variety of applications such as golf carts and electric scooters, ensuring outstanding performance and a long service life.
Core feature
High energy capacity: Nominal capacity 160Ah, energy output 8.19kWh, providing longer running time for electric vehicles and enhancing operational efficiency.
Sturdy structure: Utilizing a metal casing, with IP67 protection level, it offers excellent dust and water resistance, ensuring long service life even in complex environments.
Long cycle life: Designed to support over 6,000 cycles at 80% discharge depth (DOD), significantly reducing the replacement cost compared to traditional lead-acid batteries.
Intelligent Battery Management System (BMS): The advanced BMS offers comprehensive protection against overcharging, overdischarging, and short circuits, ensuring safe operation throughout the entire lifecycle.
Customization options: Support for Bluetooth monitoring, self-heating function, and various communication protocols, among other optional features, to meet specific requirements.
Product Description:
Aoge Power The 48V (51.2V) 160Ah golf cart lithium battery is specially designed to provide reliable power for various electric vehicles and equipment. This lithium iron phosphate (LiFePO4) battery has a nominal voltage of 51.2V and combines excellent energy density and efficiency. Its dimensions are 800 x 332 x 332 mm and weighs approximately 75 kilograms, suitable for various scenarios such as golf carts, electric tricycles, and sightseeing vehicles.
The battery can operate efficiently within a wide temperature range of -20°C to 60°C, performing well both indoors and outdoors. The natural cooling system maintains optimal performance without the need for additional cooling, further enhancing reliability.
The maximum continuous charging current of this battery is 160A, and the peak discharge current is 315A. It supports high-load applications while ensuring safety through intelligent BMS. The BMS monitors key parameters such as voltage, current, and temperature in real time to ensure safe operation.
Choosing the 48V (51.2V) 160Ah golf cart lithium battery not only provides a reliable power source but also contributes to sustainable development with its environmentally friendly design. The long lifespan reduces the need for frequent replacements, ultimately lowering the total cost of ownership (TCO).
This efficient, powerful and environmentally friendly solution has been specially designed to meet your needs for electric vehicles.
| 48V 160AH Lithium Battery | Specifications |
| Applications | Golf carts, sightseeing vehicles, club cars, 2-3 wheel electric scooters, electric rickshaws, electric tricycles, floor scrubbers, floor cleaners, AGV, LGV, RGV, AMR, electric forklifts, traction motors, etc. |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Model | AG51.2160LFP-EV |
| Rated Voltage | 51.2V |
| Rated Capacity | 160Ah |
| Nominal Energy | 8.19KWh |
| Maximum Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Standard Charging Current | 22A (7.5 hours) |
| Maximum Continuous Charging Current | 160A |
| Maximum Continuous Discharging Current | 160A |
| Peak Discharging Current | 315A (for 10 seconds) |
| Dimensions [Length x Width x Height] | 800×332×332mm |
| Weight | 75kg |
| IP Rating | IP67 |
| Maximum Series Quantity | 4S |
| Maximum Parallel Quantity | 4P |
| Cycle Life | >6000 cycles (80% DOD, 0.2C) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Storage Stability | 0°C~35°C |
| Charger | Optional |
| LCD Display | Optional |
| Switch | Yes |
| External Communication | RS485 / CAN bus |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD display / RS232 / Anti-theft / Fan cooling / Heat sink / Active balancing / Solar MPPT / etc. |
| BMS | Intelligent BMS protection: overcurrent / overcharge / overdischarge / overload / overvoltage / undervoltage / overheating / over-temperature / low temperature / automatic balancing of lithium batteries / etc. |
| Battery Monitoring | Bluetooth APP |
| Terminal | M8 |
| Internal Fixing | Metal bracket or EVA sponge |
| Battery Box | Metal |
| Design Life | 20 years |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / UL 2054 / IEC 62133 / IEC 62619 / FCC CE / RoHS Compliant Middle East: ESMA / SASO South Africa: SABS Material Safety Data Sheet (MSDS) / UN38.3 |
