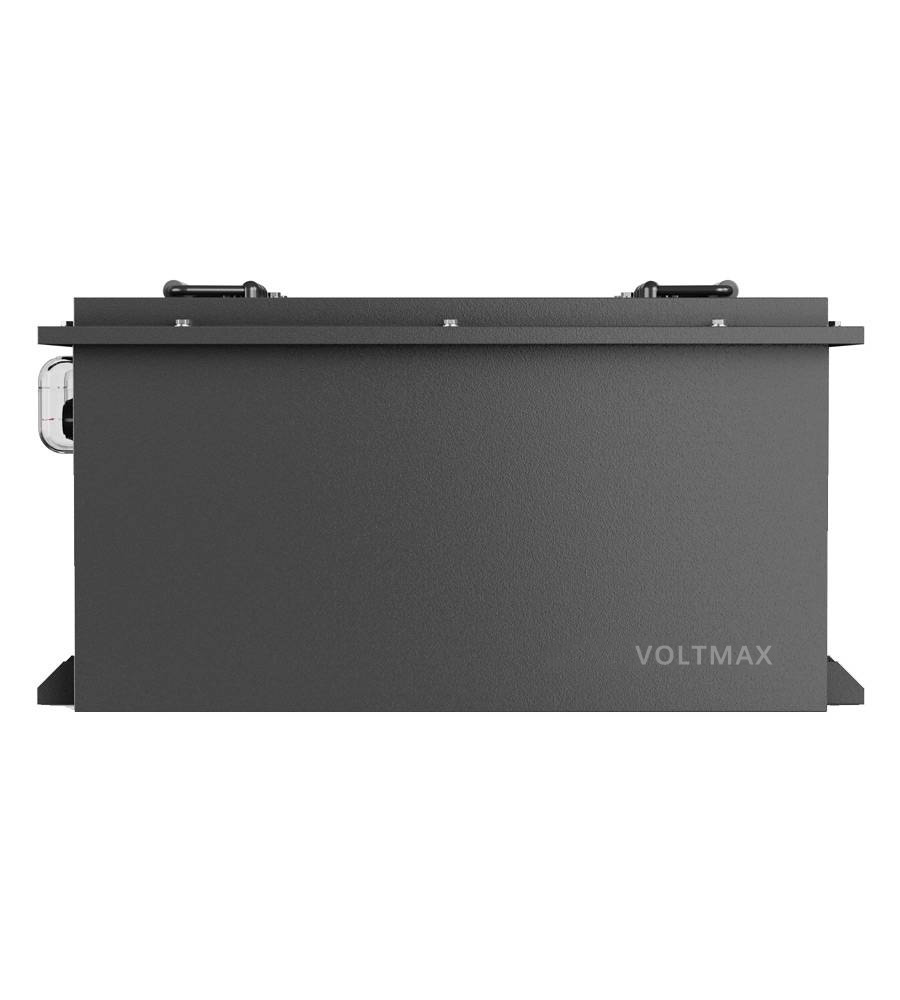

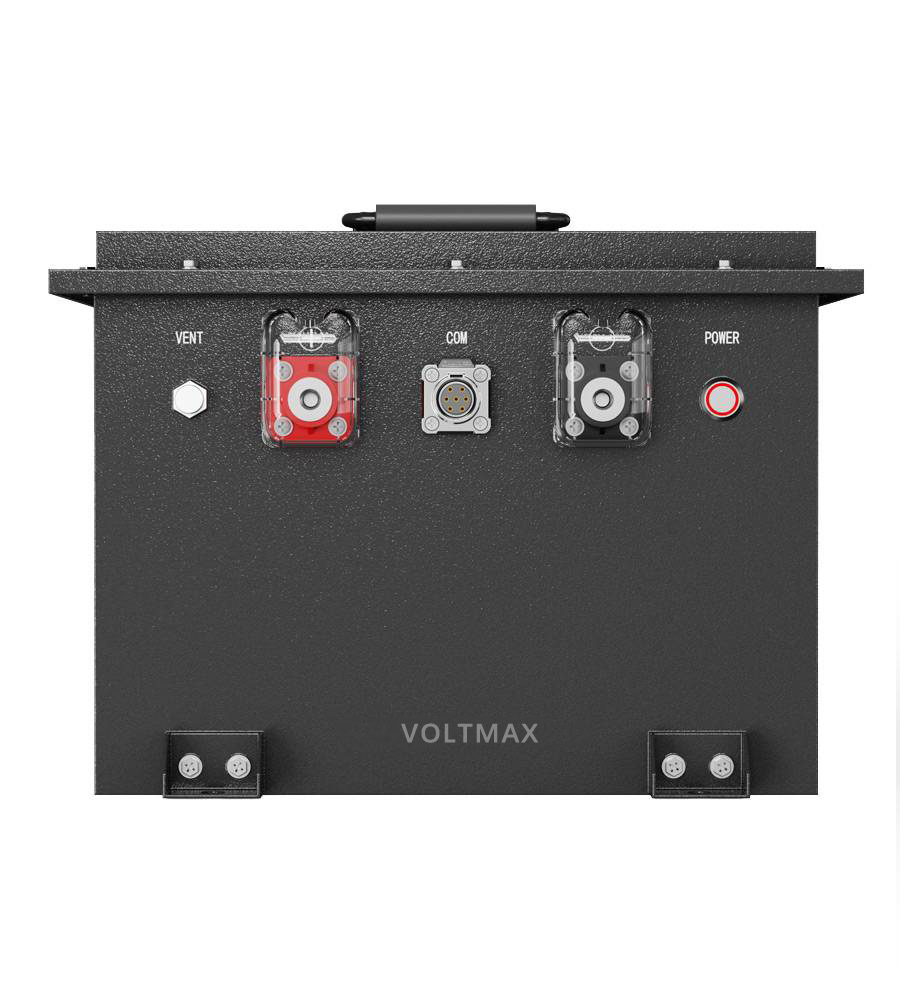

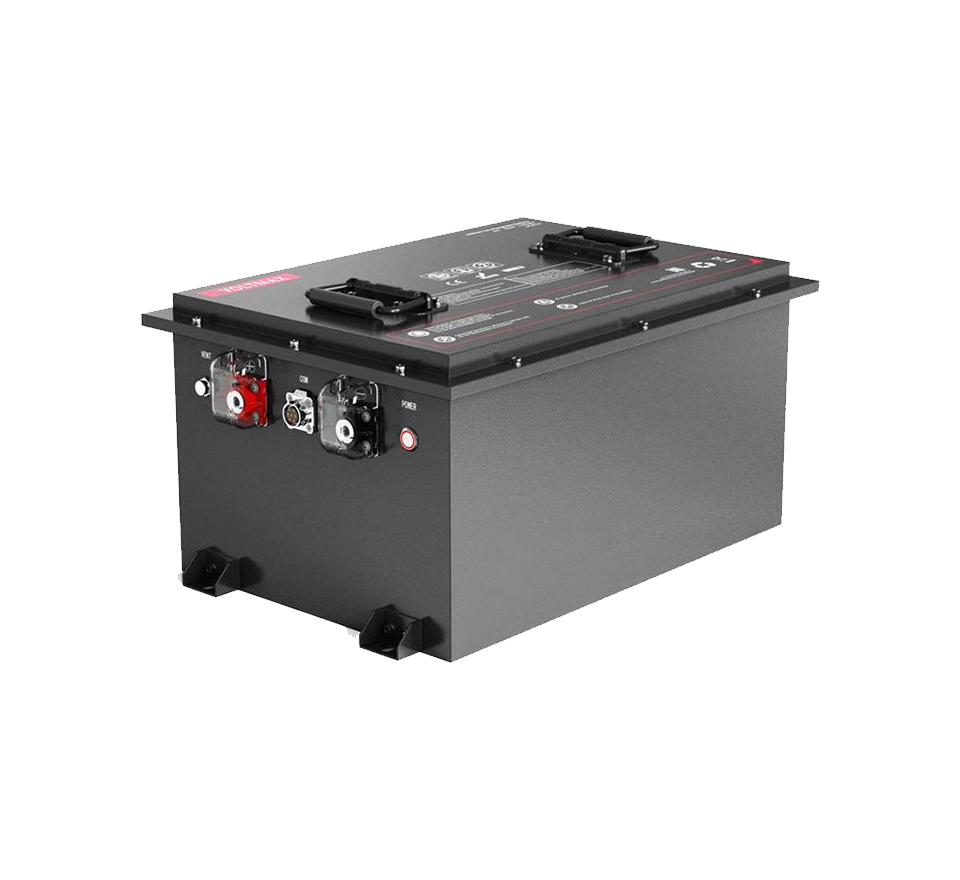

48V 100Ah golf cart lithium battery (BMS 250A)
Category: 48V Golf cart Battery
Lithium battery type: Lithium iron phosphate (LFP)
Rated voltage: 51.2V
Nominal capacity :100Ah
Nominal energy : 5.37KWh
Dimensions (length * width * height) ：500 × 355 × 247 mm
Weight ：43.5Kg
IP rating: IP67
AOGE POWER have launched the 48V 100Ah golf cart lithium battery (BMS 250A), which is a high-performance energy solution designed for various electric vehicles such as golf carts and electric scooters. This battery adopts advanced lithium iron phosphate (LiFePO4) technology, offering outstanding power, long cycle life and reliable safety features. It is an ideal choice for Oems, ODMs and wholesale purchasers seeking reliable and customizable energy solutions. Core features
Core feature
High energy output: Rated capacity 100Ah, energy output 5.37kWh, ensuring a significant improvement in the range of electric vehicles.
Long cycle life: Designed to support over 6,000 cycles at 80% discharge depth (DOD), significantly reducing long-term usage costs.
Reliable safety features: Equipped with a 250A intelligent battery management system (BMS), which can prevent overcharging, overheating and other potential hazards.
Widely applicable scenarios: Suitable for golf carts, electric tricycles, and other types of electric vehicles.
Customization options: Supports OEM/ODM project customization, offering Bluetooth connection, self-heating function and multiple color appearance options.
Product Description:
The 48V 100Ah golf cart lithium battery (BMS 250A) has been professionally designed to meet the power requirements of modern electric vehicles. With a nominal voltage of 51.2V, a capacity of 100Ah, and an energy output of 5.37kWh, it ensures that the vehicle can travel longer distances without frequent charging.
The battery size is 500mm x 355mm x 247mm, weighing 43.5 kilograms. It is easy to integrate into various electric vehicle models while maintaining optimal performance. Its IP67 protection level can completely prevent dust and water, making it suitable for outdoor use.
Safety is the top priority. The battery is equipped with an advanced 250A battery management system (BMS), which continuously monitors key parameters such as voltage and temperature. By preventing potential dangers such as overcharging or thermal runaway, it enhances safety.
The battery design is versatile and supports various scenarios such as golf carts, electric tricycles, and scooters. With a cycle life of over 6000 cycles at 80% discharge depth, it can withstand high-intensity use and maintain stable performance.
In addition, the battery offers optional features such as self-heating and Bluetooth connectivity to enhance the user experience. Customizable appearance colors (black, white, gray) allow you to personalize it according to your brand image.
Whether you are upgrading your fleet or seeking a reliable power solution for OEM projects,AOGE POWER 48V 100Ah golf cart lithium battery (BMS 250A) is an outstanding choice for efficiency and sustainability in electric vehicle applications.
| 48V 100AH Lithium Battery | Specifications |
| Lithium Battery Type | Lithium Iron Phosphate (LFP) |
| Model | AG51.2100LFP-EV |
| Rated Voltage | 51.2V |
| Rated Capacity | 105Ah |
| Nominal Energy | 5.37KWh |
| Maximum Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Standard Charging Current | 22A (5 hours) |
| Maximum Continuous Charging Current | 200A |
| Maximum Continuous Discharging Current | 200A |
| Peak Discharging Current | 250A (for 10 seconds) |
| Dimensions [Length x Width x Height] | 500×355×247mm |
| Weight | 43.5kg |
| IP Rating | IP67 |
| Maximum Series Quantity | 4S |
| Maximum Parallel Quantity | 4P |
| Cycle Life | >6000 cycles (80% DOD, 0.2C) |
| Self-discharge | 2% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Storage Stability | 0°C~35°C |
| Charger | Optional |
| LCD Display | Optional |
| Switch | Yes |
| External Communication | RS485 / CAN bus |
| Optional Upgrades | Self-heating / Bluetooth / APP / 4G / GPS / WiFi / LCD display / RS232 / Anti-theft / Fan cooling / Heat sink / Active balancing / Solar MPPT / etc. |
| BMS | Intelligent BMS protection: overcurrent / overcharge / overdischarge / overload / overvoltage / undervoltage / overheating / over-temperature / low temperature / automatic balancing of lithium batteries / etc. |
| Battery Monitoring | Bluetooth APP |
| Terminal | M8 |
| Internal Fixing | Metal bracket or EVA sponge |
| Battery Box | Metal |
| Design Life | 20 years |
| Warranty Policy | 5 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipping | Yes |
| Company Certificates | UL 1642 / UL 2054 / IEC 62133 / IEC 62619 / FCC CE / RoHS Compliant Middle East: ESMA / SASO South Africa: SABS Material Safety Data Sheet (MSDS) / UN38.3 |
