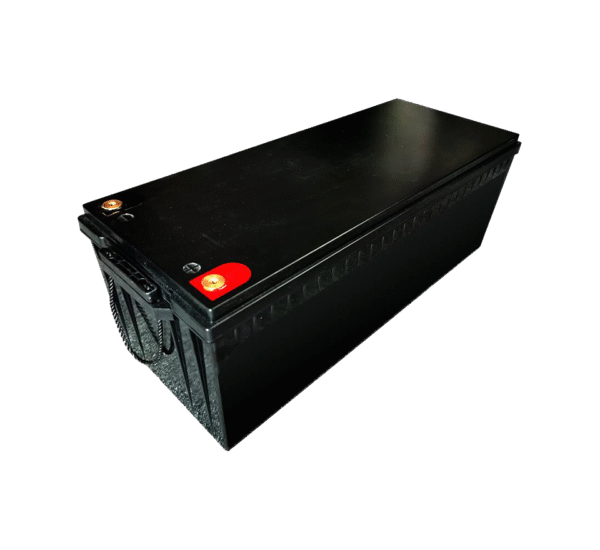

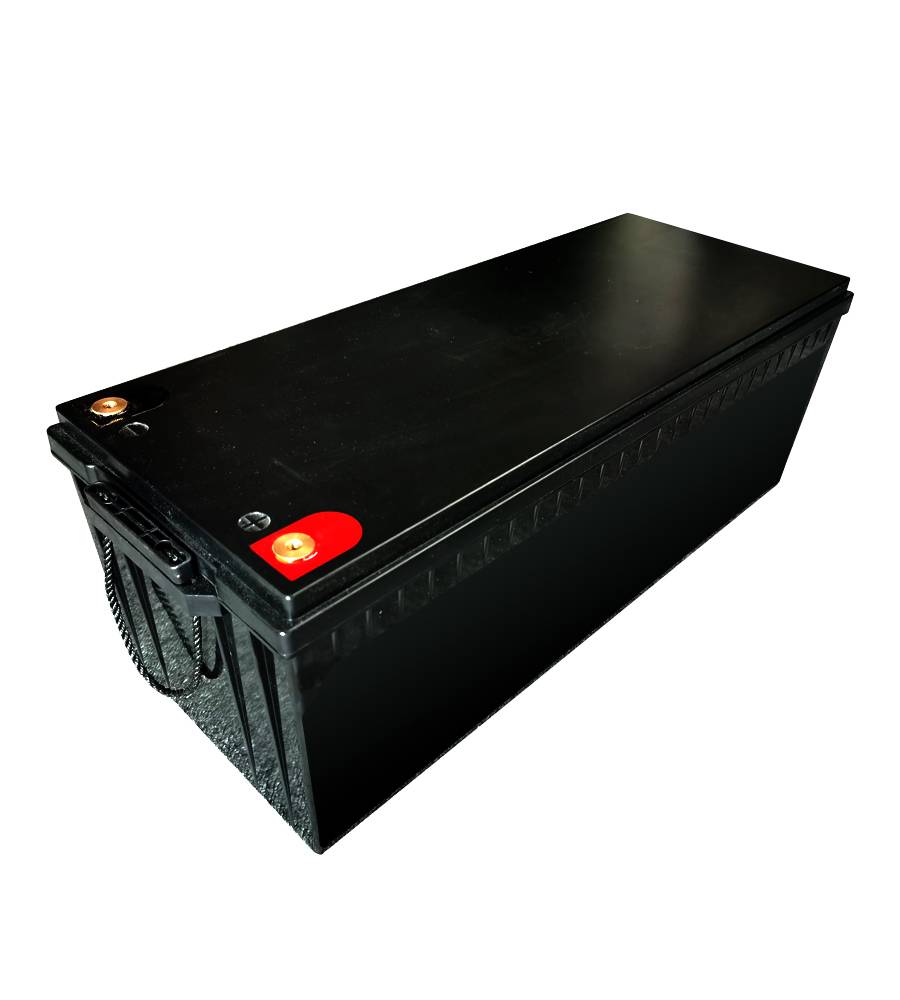

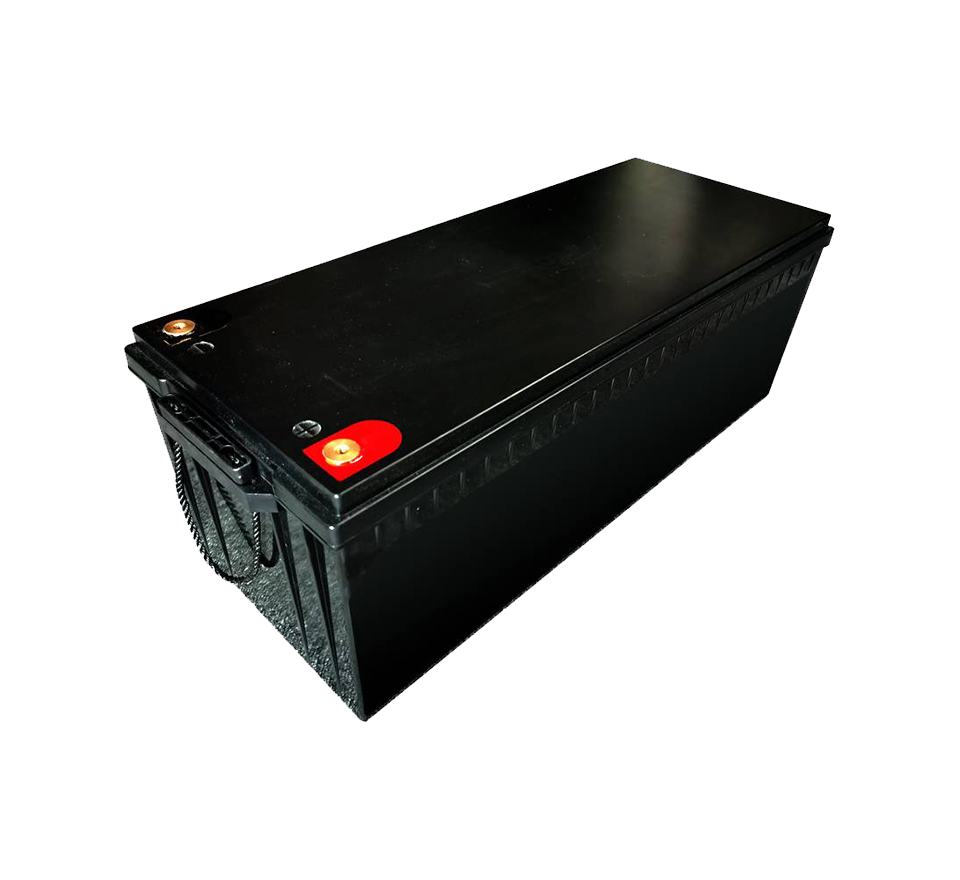

36V 120Ah lithium battery
Category: 36v RV lithium battery
Battery type: LiFePO4Voltage: 38.4V
Capacity:120Ah
Nominal energy:4680Wh
Charging voltage: 43.8V
Discharging voltage: 30V
Continuous charging current: 60A
Continuous discharging current: 60A
Dimensions (length x width x height):640×240×220 mm
Weight: 36 KG
IP Rating: IP65
The 36V120 lithium battery Aoge Power is a high-capacity energy storage solution, specifically designed for demanding applications. Utilizing advanced LiFePO4 technology, this battery has a nominal energy output of 4680Wh, making it an ideal choice for solar systems, recreational vehicles and Marine applications. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable and customizable power supply solutions.
Key features:
High energy capacity: Provides a rated voltage of 38.4V and a capacity of 120Ah to ensure adequate energy supply for various applications.
Long cycle life: Designed to exceed 5000 cycles with a discharge depth (DOD) of 80%, featuring excellent service life and reliability.
Robust design: Dimensions 640 x 240 x 220mm , weight 36 kg (79 pounds), suitable for use in harsh environments.
IP65 rating: Provides excellent dust and water protection, suitable for outdoor and marine environments.
Customizable options: Please choose OEM/ODM customization, including features such as Bluetooth connection, LCD display, and active balance technology.
Product description
36V 120Ah lithium battery is specially designed to meet the energy demands of various applications such as RVs, boats, and off-grid solar systems. The maximum continuous charging and discharging current is 60A, and this battery ensures efficient power management according to your needs. The battery is made of durable ABS plastic, which can withstand harsh conditions while maintaining optimal performance.
It operates effectively within the temperature range of 0°C to 60°C, for charging and -20°C to 65°C for discharging. This battery is equipped with an intelligent battery management system (BMS), which can prevent overcharging, overdischarging, short circuits, and other potential hazards.
The self-discharge rate is approximately 3% per month, ensuring that the battery retains its charge during idle periods. The design life is up to 10 years and the warranty period is 3 years.
The Aoge Power 36V 120Ah lithium battery is an excellent choice for OEMs, wholesalers, and those seeking high-performance energy solutions. Contact us immediately to explore customization options and bulk purchase discounts!
| LFP TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 36V LPRV SERIES | |
| MODEL | AG36120LFP-LPRV |
| Rated Voltage | 38.4V |
| Rated Capacity | 120Ah |
| Rated Energy | 4680Wh |
| MAX.Charge Voltage | 32-43.8V |
| RECMD charge current(0.2C) | 12A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 43.8V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 60A |
| Discharge CUT-OFF Volt. | 30V |
| RECMD discharge current(0.2C) | 12A |
| Max.Discharge Current(1C) | 60A |
| Dimensions(L*W*H*TH)MM | 640*240*220 |
| Weight(APPROX)KG±3% | 36KG |
| CELL CONSTRUCTION | 12S8P |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth/App/WiFi/4G/GPS/Self-heating/LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
