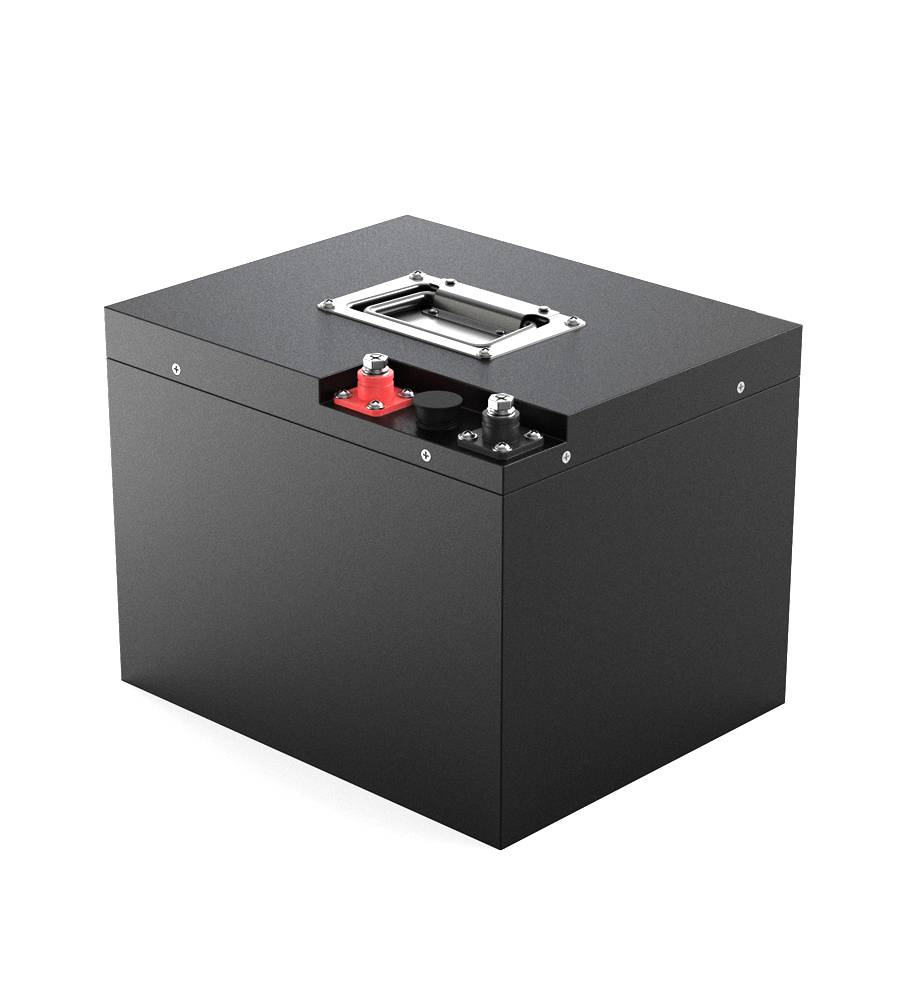

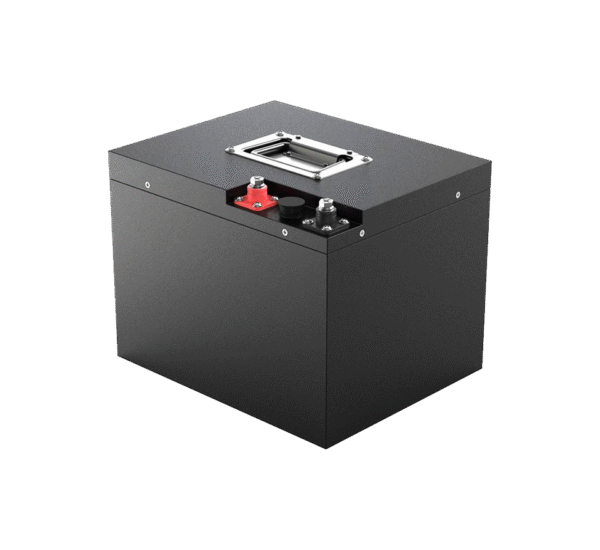

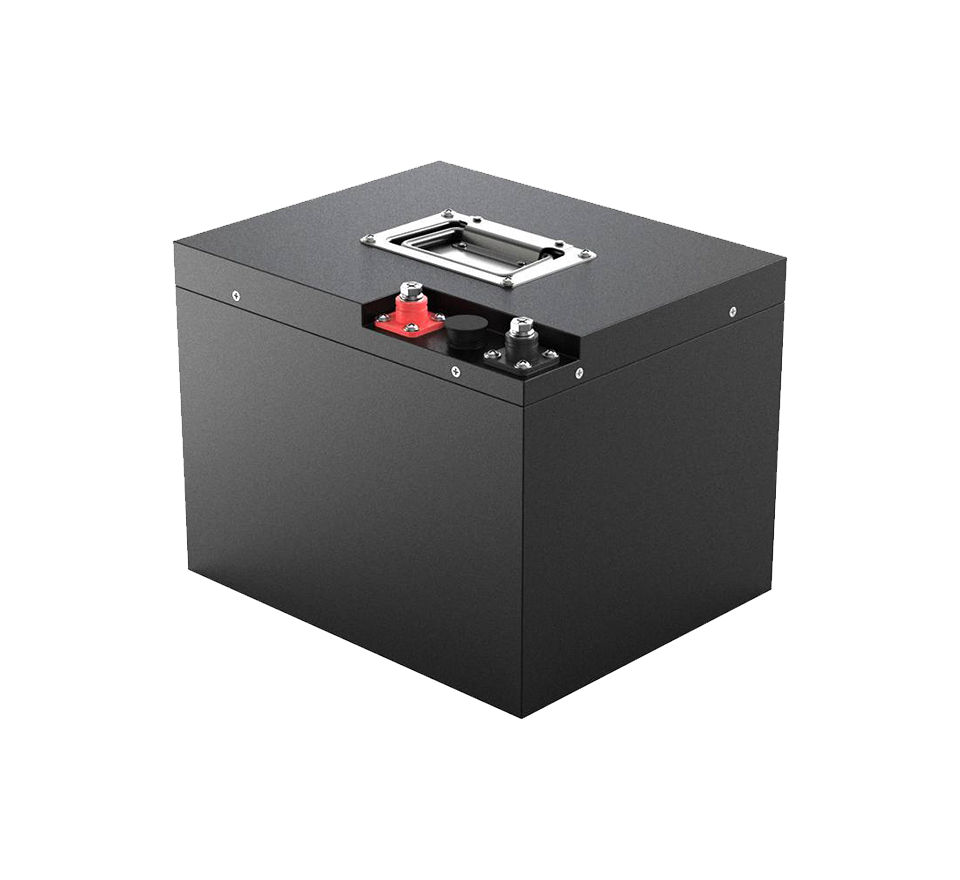

24V 80Ah lithium battery
Category: 24v RV lithium battery
Lithium battery: Lithium iron phosphate (LFP)
Voltage: 25.6V
Capacity:80Ah
Nominal energy: 2048Wh
Dimensions (length x width x height):255x205x195 mm / 10×8.07×7.7 in.
Weight: 16KG/35 lb
IP Rating: IP65
24V 80Ah lithium battery, specifically designed for high-performance energy storage in applications such as solar systems, ships and recreational vehicles. With the advanced LiFePO4 technology, this battery features outstanding reliability and efficiency, making it an ideal choice for OEM, ODM and wholesale buyers.
Key features:
High energy capacity:With a rated capacity of 80Ah and providing 2048Wh of energy, it is highly suitable for powering electric pallet trucks, recreational vehicles and Marine applications.
Long cycle life: Designed to exceed 5000 cycles with a discharge depth (DOD) of 80%, ensuring excellent service life and reliability.
Compact design: Dimensions weight is 16 kg, easy to install in limited spaces.
IP65 rating: Provides excellent dust and water protection, suitable for outdoor and marine environments.
Customizable options: Please choose the OEM/ODM project, which allows for customized specifications to meet your unique requirements.
Product description
The 24V 80Ah lithium battery is specially designed for users who require reliable and efficient energy solutions. With a nominal voltage of 25.6V, this battery uses high-quality LiFePO4 cells to ensure safety and stability. Its dimensions are 255 x 205 x 195 millimeters (10 x 8.07 x 7.7 inches), and its weight is approximately 16 kg (35 pounds), making it suitable for various applications.
The battery supports a maximum continuous charging and discharging current of 50A, making it highly suitable for demanding situations. The sturdy structure has an IP65 rating, which can prevent dust and water from entering. Optional upgrades, such as Bluetooth connection and LCD display, can enhance monitoring and customization. The design life lasts up to 10 years. The Aoge Power lithium battery complies with multiple certifications such as UL80 and CE, and is a reliable choice for automotive, renewable energy, ships and backup power applications. Whether you want to stock up for wholesale distribution or seek a customized solution for your brand, this battery is your top choice in the energy field for achieving outstanding performance and reliability.
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 24V LPRV SERIES | |
| MODEL | AG2480LFP-LPRV |
| Rated Voltage | 25.6V |
| Rated Capacity | 80Ah |
| Rated Energy | 2048Wh |
| MAX.Charge Voltage | 28-29.2V |
| RECMD charge current(0.2C) | 16A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 29.2V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 50A |
| Discharge CUT-OFF Volt. | 20V |
| RECMD discharge current(0.2C) | 16A |
| Max.Discharge Current(1C) | 50A |
| Peak discharge current(2C) (MAX. 3 second) | 100A |
| Dimensions(L*W*H*TH)MM | 255*205*195 |
| Weight(APPROX)KG±3% | 16KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | METAL |
| Design Life/WARRANTY | 10 Years/3 YEARS |
