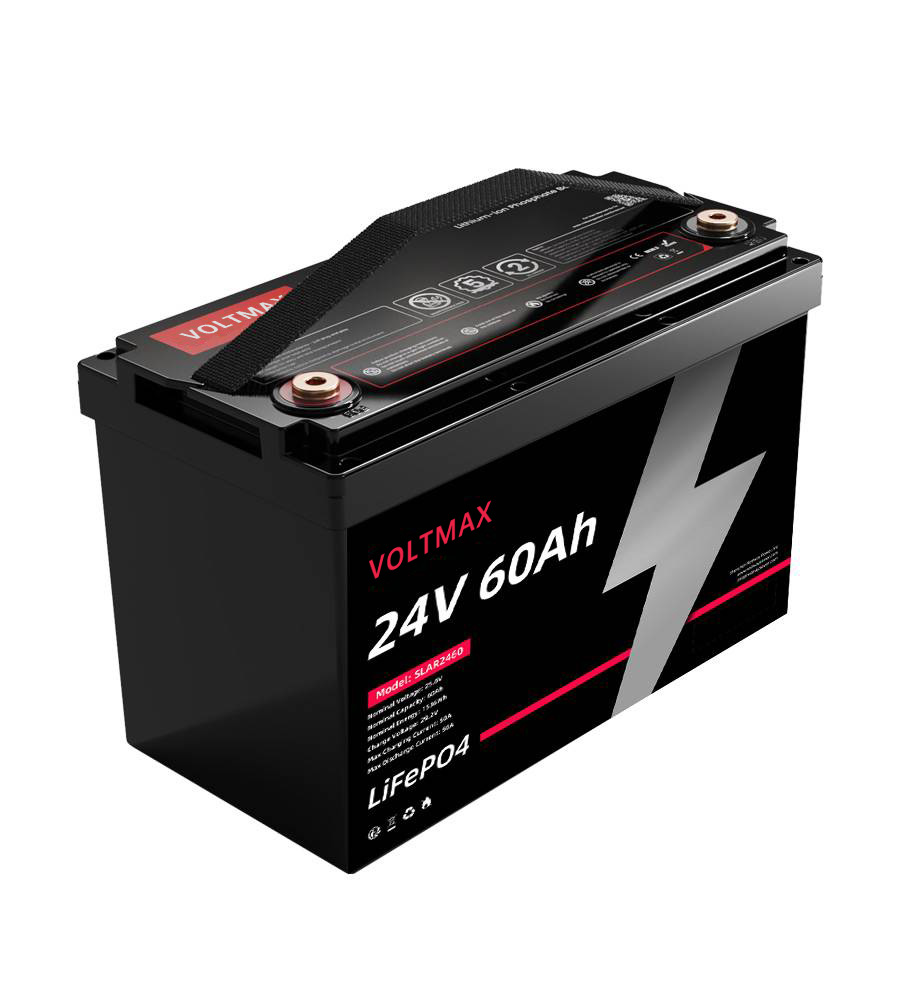

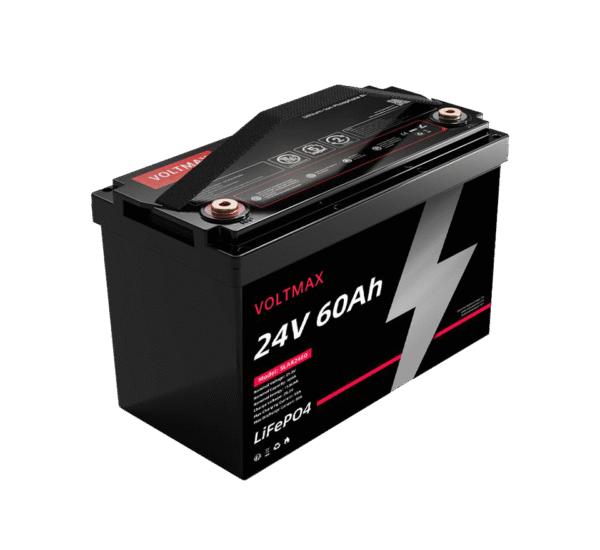

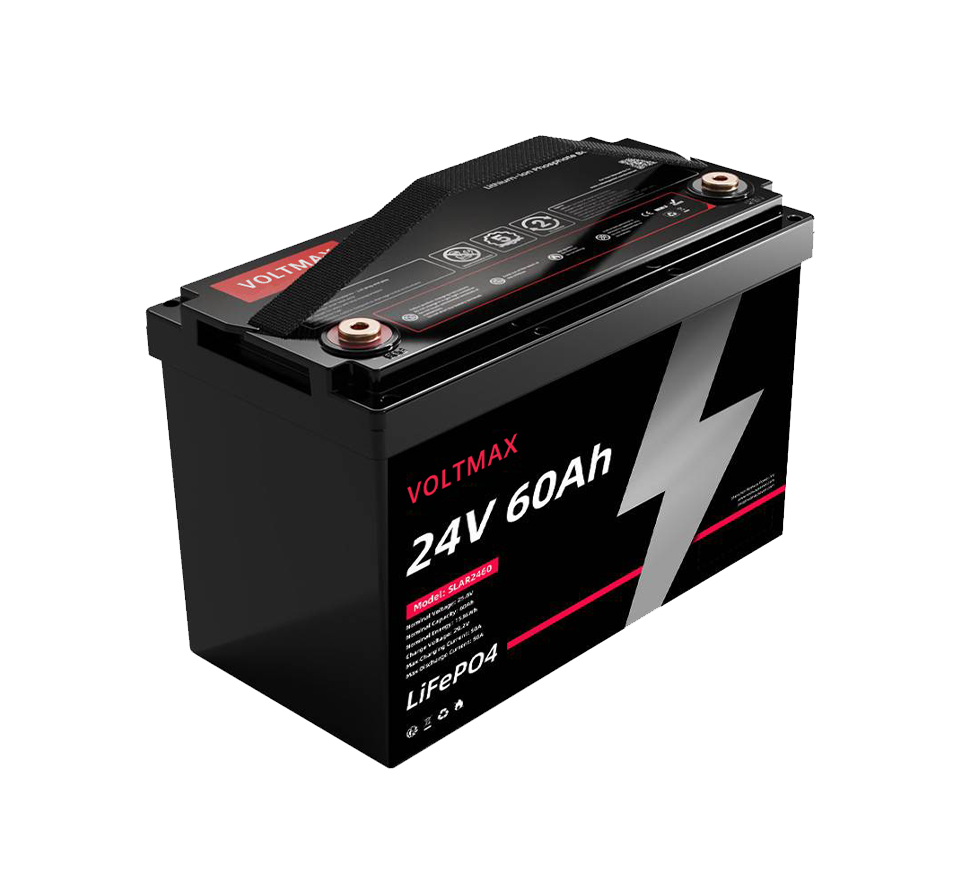

24V 60Ah lithium battery (BCI Group 24)
Category: 24v RV lithium battery
Battery type: LiFePO4
Voltage: 25.6V
Capacity:60Ah
Nominal energy: 1536Wh
Peak charging voltage: 29.2V
Discharge cut-off voltage: 20V
Dimensions (length x width x height):330 x 170 x 215 mm
Weight: 11 KG/24 lb
IP Rating: IP65
25.6V 60Ah lithium battery Aoge Power high-performance energy solution is specially designed for various applications, including electric pallet trucks and off-grid power systems. By leveraging the advanced LiFePO4 technology, this battery offers a nominal energy output of 1536Wh. It is highly suitable for OEM/ODM and wholesale buyers, offering customization options and reliable performance.
Key features:
High energy capacity:With a rated capacity of 60Ah and providing 1536Wh of energy, it is highly suitable for powering electric pallet trucks, recreational vehicles and Marine applications.
Long cycle life: Designed to exceed 5000 cycles with a discharge depth (DOD) of 80%, ensuring excellent service life and reliability.
Compact design: Dimensions are 330 x 170 x 215 millimeters, weight is 11 kg (24 pounds), easy to install in limited spaces.
IP65 rating: Provides excellent dust and water protection, suitable for outdoor and marine environments.
Product description
25.6V 60Ah lithium battery, a versatile power solution, is specially designed for demanding applications such as electric pallet trucks, automated guided vehicles (AGVs), and off-grid systems. This battery uses high-quality lithium iron phosphate batteries, providing a rated voltage of 25.6V and an impressive energy capacity of 1536Wh, making it an ideal choice for powering industrial machinery. It is specifically designed for efficient operation under various conditions, capable of charging within the temperature range of 0°C to 60°C, and at -20°C and 60°C. The self-discharge rate remains at 2% per month, allowing for extended storage without loss of capacity.
The maximum continuous charging and discharging current is 50A, enabling this battery to effectively meet large power demands. The durable metal casing ensures impact resistance while maintaining structural integrity.
For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals. Our flexible delivery conditions (FOB, EXW, CIF) ensure that your order is promptly processed within the specified time frame of 20 days.
Choose the Aoge Power 25.6V 60Ah lithium battery (BCI Group 31) for your energy storage solution and enjoy unparalleled performance, reliability, and innovative technology. Use our reliable batteries to enhance your operational efficiency – your efficient energy journey begins here!
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 24V LPRV SERIES | |
| MODEL | AG2460LFP-LPRV |
| Rated Voltage | 25.6V |
| Rated Capacity | 60Ah |
| Rated Energy | 1536Wh |
| MAX.Charge Voltage | 28-29.2V |
| RECMD charge current(0.2C) | 12A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 29.2V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 50A |
| Discharge CUT-OFF Volt. | 20V |
| RECMD discharge current(0.2C) | 12A |
| Max.Discharge Current(1C) | 50A |
| Peak discharge current(2C) (MAX. 3 second) | 100A |
| Dimensions(L*W*H*TH)MM | 330*170*215 |
| Weight(APPROX)KG±3% | 11kg |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
