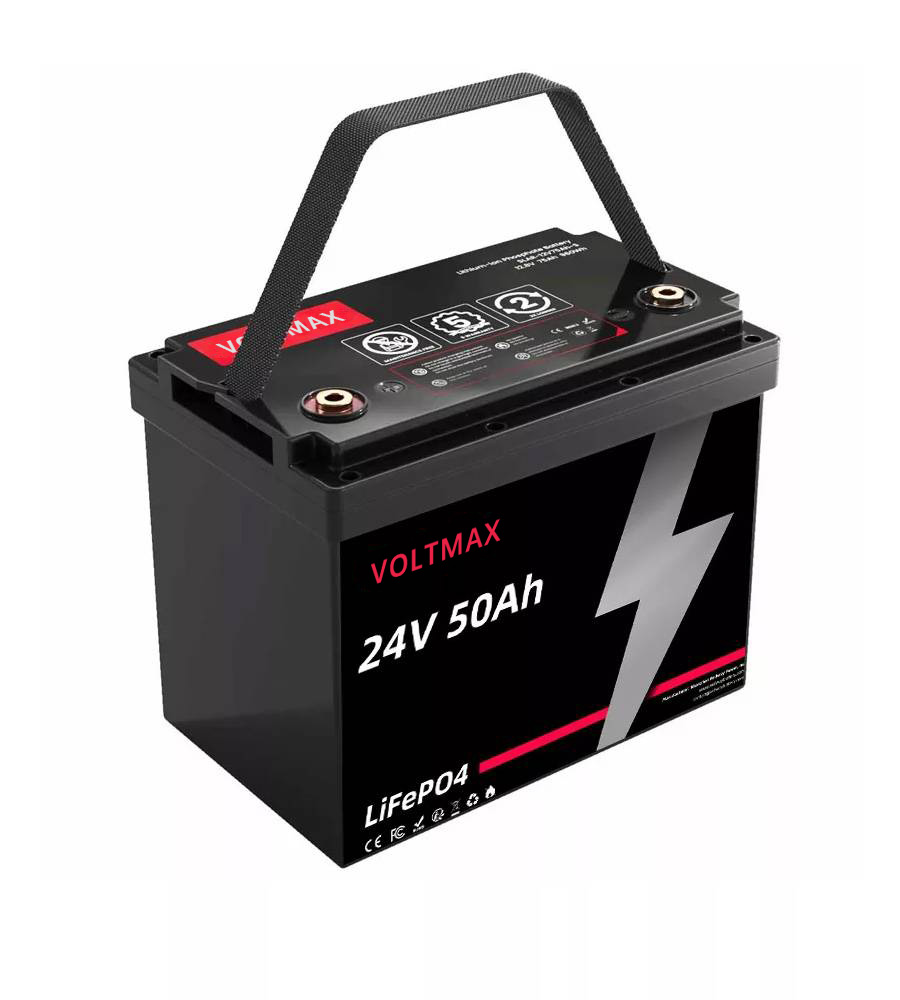

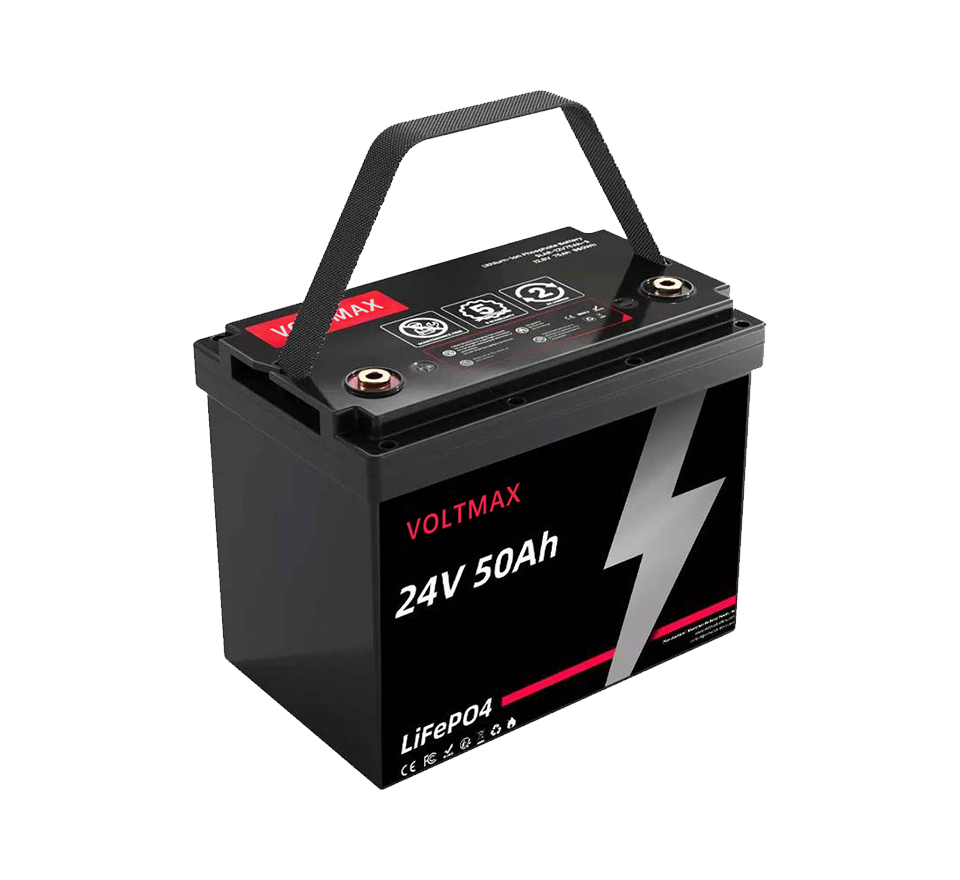

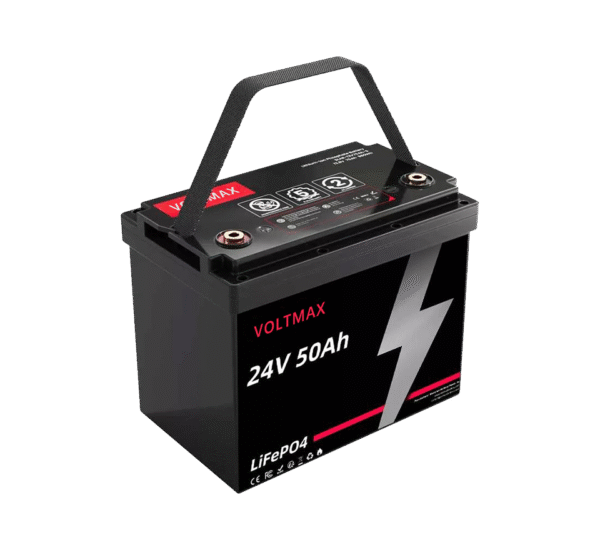

24V 50Ah lithium battery Aoge Power is specially designed for high-performance applications and adopts the advanced LiFePO4 technology. With a nominal energy output of 1280Wh, this battery is highly suitable for recreational vehicles, ships and solar systems. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable and customizable energy solutions.
Key features:
High energy capacity: Provides a rated voltage of 25.6V and a capacity of 50Ah, providing sufficient power for various applications.
Long cycle life: Designed to exceed 6000 cycles with a discharge depth (DOD) of 80%, ensuring excellent service life and reliability.
Compact design: Dimensions are 260 x 170 x 210 millimeters , weight is 10 kg (22 pounds), easy to install in limited spaces.
IP65 rating: Provides excellent dust and water protection, suitable for outdoor and marine environments.
Customizable options: Please choose OEM/ODM customization, including features such as Bluetooth connection, LCD display, and active balance technology.
Product description
24V 50Ah lithium battery is designed to meet the energy demands of various applications such as RVs, boats, and off-grid solar systems. The maximum continuous charging and discharging current is 50A, and this battery ensures efficient power management according to your needs. This battery is made of a durable metal casing, which can withstand harsh conditions while maintaining optimal performance.
It operates effectively within the temperature range of 0°C to 60°C, for charging and -20°C to 60°C for discharging. This battery is equipped with an intelligent battery management system (BMS), which can prevent overcharging, overdischarging, short circuits, and other potential hazards. The self-discharge rate is approximately 2% per month, ensuring that the battery retains its charge during idle periods.
The design life is up to 10 years and the warranty period is 3 years. The Aoge Power 24V 50Ah lithium battery is an excellent choice for OEMs, wholesalers, and those seeking high-performance energy solutions. Contact us immediately to explore customization options and bulk purchase discounts!
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 24V LPRV SERIES | |
| MODEL | AG2450LFP-LPRV |
| Rated Voltage | 25.6V |
| Rated Capacity | 50Ah |
| Rated Energy | 1280Wh |
| MAX.Charge Voltage | 28-29.2V |
| RECMD charge current(0.2C) | 10A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 29.2V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 50A |
| Discharge CUT-OFF Volt. | 20V |
| RECMD discharge current(0.2C) | 10A |
| Max.Discharge Current(1C) | 50A |
| Peak discharge current(2C) (MAX. 3 second) | 100A |
| Dimensions(L*W*H*TH)MM | 260*170*210 |
| Weight(APPROX)KG±3% | 10KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
