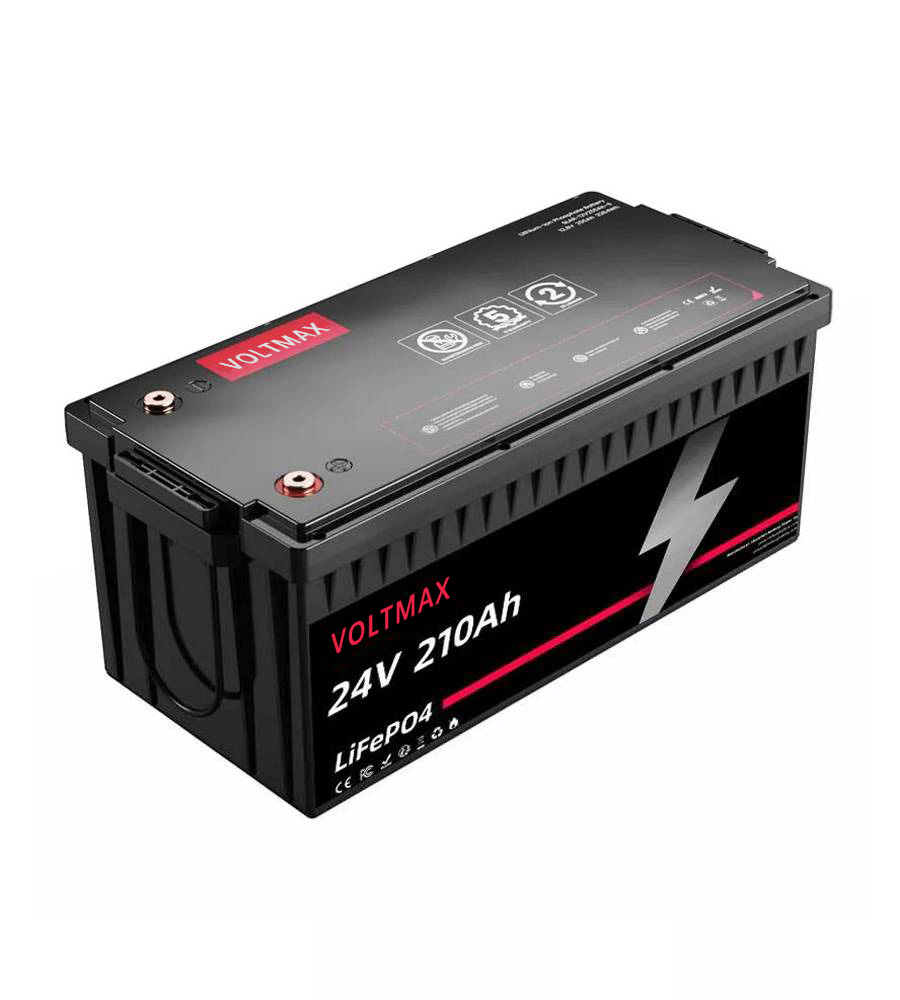

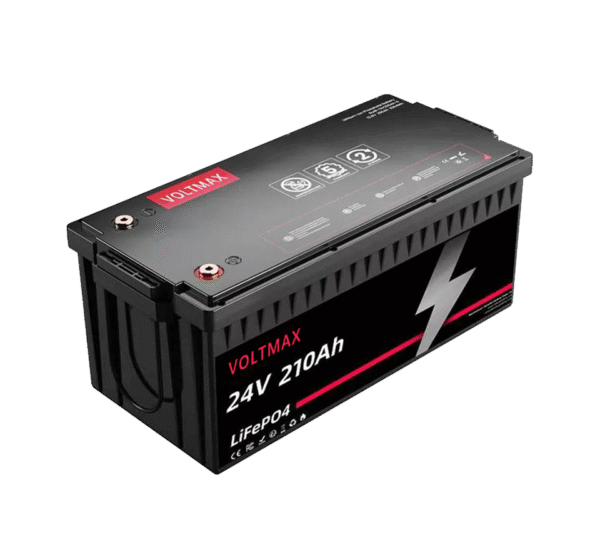

24V 210Ah lithium battery
Category: 24v RV lithium battery
Lithium battery: Lithium iron phosphate (LFP)
Voltage: 25.6V
Capacity:210Ah
Nominal energy: 5120KWh
Dimensions (length x width x height):523 x 269 x 218 mm/ 20.6×10.6×8.6 in./BCI Group 8D
Weight: 38 KG/86 lb
IP Rating: IP65
The 24V 200Ah lithium battery in Aoge Power is a high-performance LiFePO4 battery specifically designed for demanding energy storage applications. This battery is an ideal choice for OEM, ODM and wholesale buyers, providing outstanding power for solar systems, recreational vehicles and other high-capacity requirements.
Key features:
Large capacity: With a nominal capacity of 200Ah, it can transmit 5120Wh of energy, making it highly suitable for powering electric pallet trucks, AGVs, and other heavy-duty applications.
Long cycle life: Designed to be suitable for 5,000 cycles of discharge depth (DOD) of 80%, ensuring outstanding service life and cost-effectiveness.
Powerful BMS protection: Equipped with an intelligent battery management system (BMS), it can prevent overcharging, overdischarging and short circuits, thereby enhancing safety.
Wide operating temperature range: Effectively operates from -20°C to 60 °C at the following temperatures, suitable for various environments.
Product description
24V 200Ah lithium battery adopts advanced LiFePO4 technology, which offers superior safety and efficiency compared to traditional batteries. The nominal voltage is 25.6V. This battery supports a maximum continuous charging/discharging current of 100A, making it suitable for various applications. Its compact size (523 x 269 x 218 mm) and weight (39 kg/86 lbs) make it easy to install in confined spaces. The battery operates effectively within a wide temperature range, from -20°C to 65°C, and from -0°C to 60°C for charging. Optional features such as Bluetooth monitoring and LCD display enhance usability. This battery has passed IEC and UN38.3 certifications and complies with international safety standards, making it a reliable choice for your energy storage needs. For bulk orders or custom inquiries, please contact us to discuss your specific requirements.
| Characteristic | Specifications |
| Model | AG24210LFP-LPRV |
| Battery Type | LiFePO4 |
| Rated Voltage | 25.6V |
| Nominal Capacity | 210Ah |
| Nominal Energy | 5120Wh |
| Charging Voltage | 29.2V |
| Discharging Voltage | 20V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Dimensions [Length x Width x Height] | 523 x 269 x 218mm 20.6×10.6×8.6 inches BCI Group 8D |
| Weight | 39kg 86lbs |
| IP Rating | IP65 |
| Series and Parallel Connections | 8S1P |
| Maximum Battery Parallel Connections | 4 |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >5000 cycles (80% DOD at 0.5C) |
| Self-discharge | 1.5% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20°C~65℃ |
| Optional Features | Bluetooth / APP / WiFi / LCD / RS485 / RS232 / CAN / 4G / GPS / Self-heating / etc. |
| Charger | Optional |
| BMS | Jiabida BMS |
| Terminal | M8 |
| Battery Case | ABS |
| Warranty Policy | 3 years |
| Silk Screen Printing / Label Printing | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipping | Yes |
| Company Certifications | IEC, CE, UL1642, UN38.3, MSDS |
