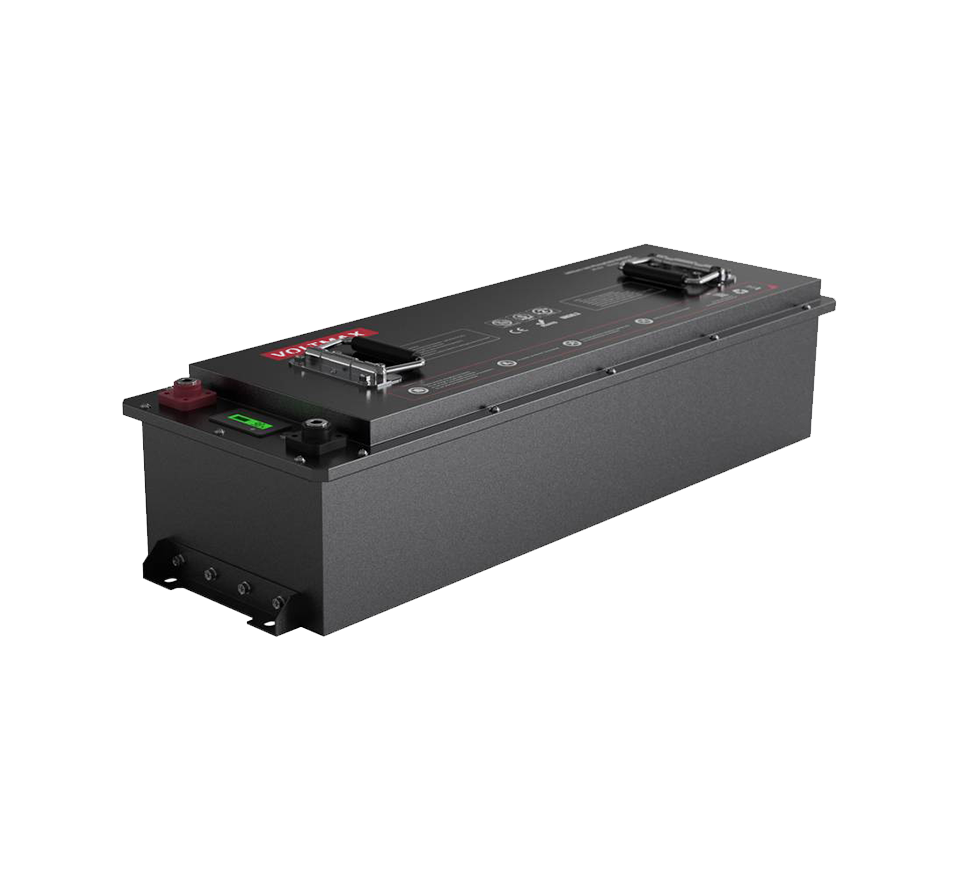

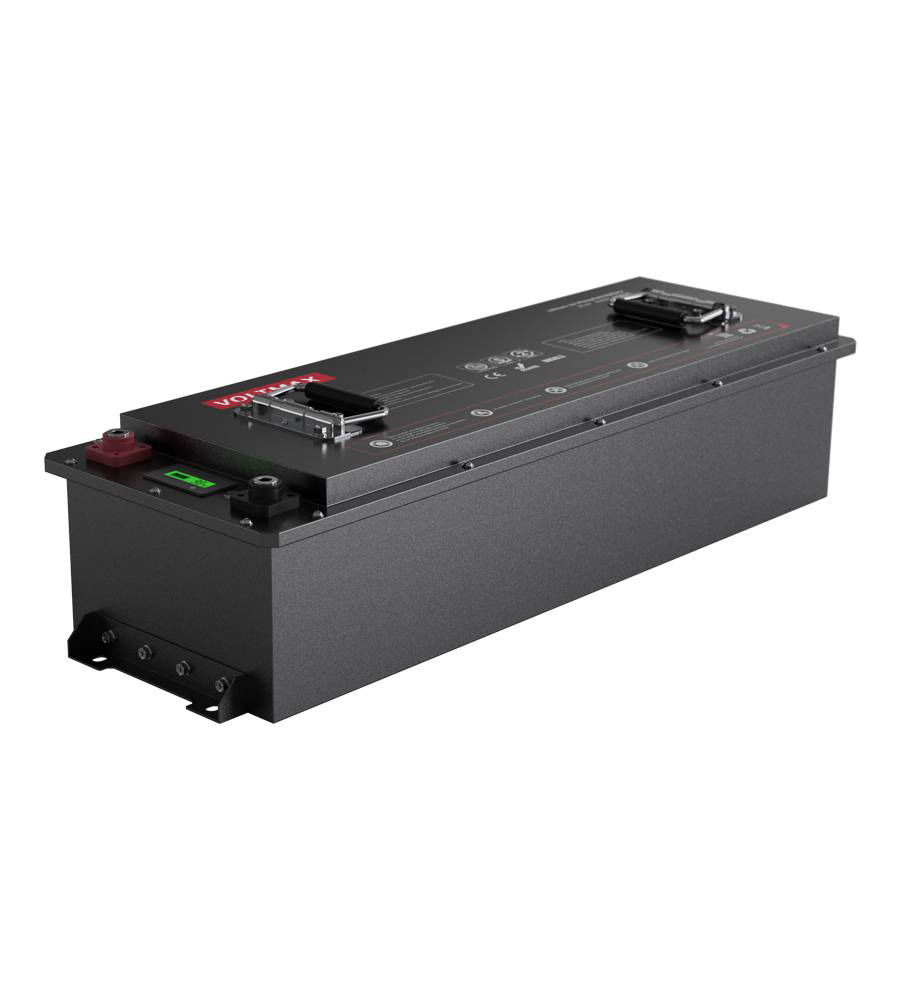

24V 180Ah lithium battery (SOC LCD display)
Category: 24v RV lithium battery
Lithium battery: Lithium iron phosphate (LFP)
Voltage: 25.6V
Capacity:184Ah
Nominal energy: 4608Wh
Dimensions (length x width x height):628x240x170 mm
Weight: 35 KG/77 lb
IP Rating: IP65
The 24V 180Ah lithium iron phosphate battery with SOC LCD display is specially designed for high-performance energy storage and is highly suitable for various applications such as solar systems, recreational vehicles and ships. This battery combines advanced technology with customizable options, making it the perfect choice for OEM, ODM and wholesale buyers seeking reliable power solutions.
Key features:
Large capacity: Rated capacity of 180Ah, suitable for a wide range of energy storage applications.
Long service life: It can maintain long-lasting performance even when the discharge depth (DoD) reaches 80% over 5,000 cycles.
Smart LCD display: Provides real-time charging status (SOC) information, facilitating user operation.
Powerful safety features: including a comprehensive battery management system (BMS) to enhance protection.
Product description
The 24V 180Ah LiFePO4 lithium battery is specially designed to meet the demands of modern energy applications, with a nominal voltage of 25.6V and an energy output of 4710Wh. Weighing approximately 35 Kg, this battery features a durable metal casing and an IP65 rating, ensuring dust and water resistance. This battery is equipped with an intelligent BMS that can prevent overcharging, overheating and short circuits, ensuring safe operation under various conditions. OEM/ODM buyers can customize options, including features such as Bluetooth connection and self-heating function. Aoge Power offers high-quality battery solutions that can effectively enhance your energy storage capacity and is trustworthy.
| LFP BATTERY TO REPLACE VRLA BATTERY FOR RECREATIONAL VEHICLE -AOGE 24V LPRV SERIES | |
| MODEL | AG24180LFP-LPRV |
| Rated Voltage | 25.6V |
| Rated Capacity | 180Ah |
| Rated Energy | 4608Wh |
| MAX.Charge Voltage | 28-29.2V |
| RECMD charge current(0.2C) | 20A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 29.2V, and initial charge-current at 0.2C; change battery continuously till the current drops less 0.02C |
| Max.Charge Current(0.5C) | 100A |
| Discharge CUT-OFF Volt. | 20V |
| RECMD discharge current(0.2C) | 20A |
| Max.Discharge Current(1C) | 100A |
| Peak discharge current(2C) (MAX. 3 second) | |
| Dimensions(L*W*H*TH)MM | 678*240*170 |
| Weight(APPROX)KG±3% | 35KG |
| Max. Parallel and Series QTY | 4P/4S |
| IP Rating | IP65 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦2% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / LCD/RS485/RS232/CAN-BUS/etc. |
| JBD/DALY BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M8 |
| Battery Case | METAL WITH SOC LCD |
| Design Life/WARRANTY | 10 Years/3 YEARS |
