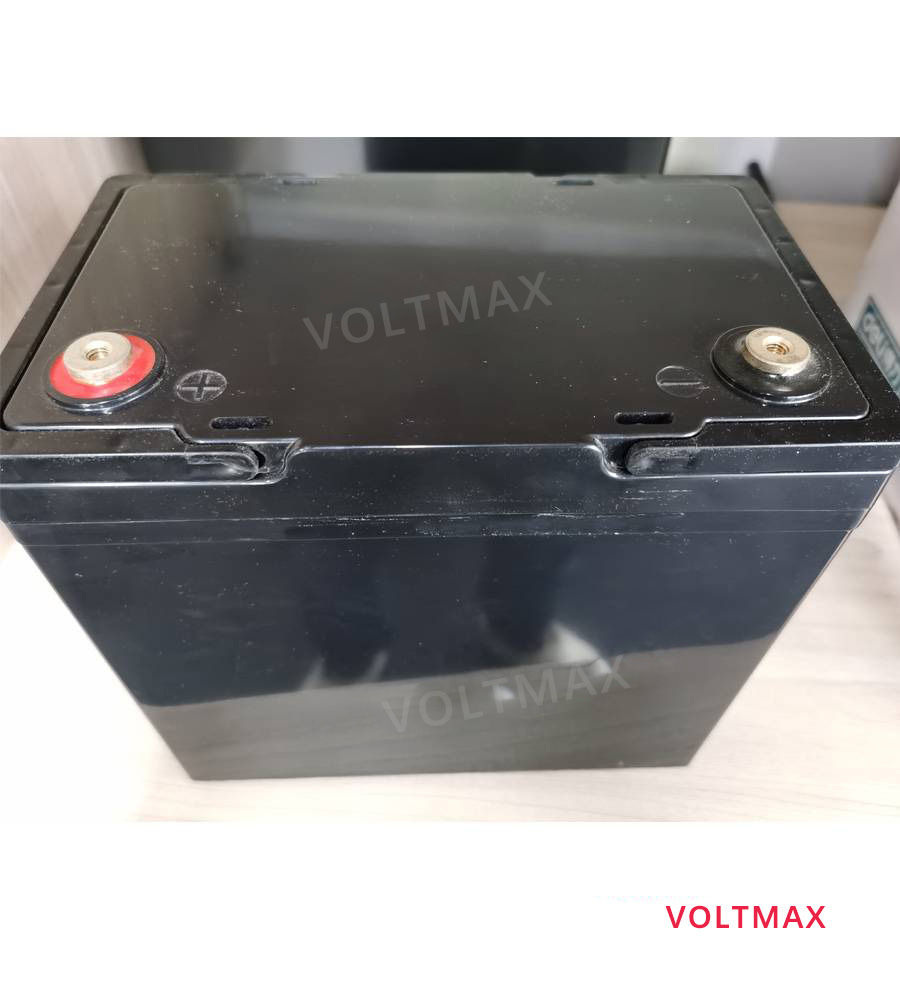

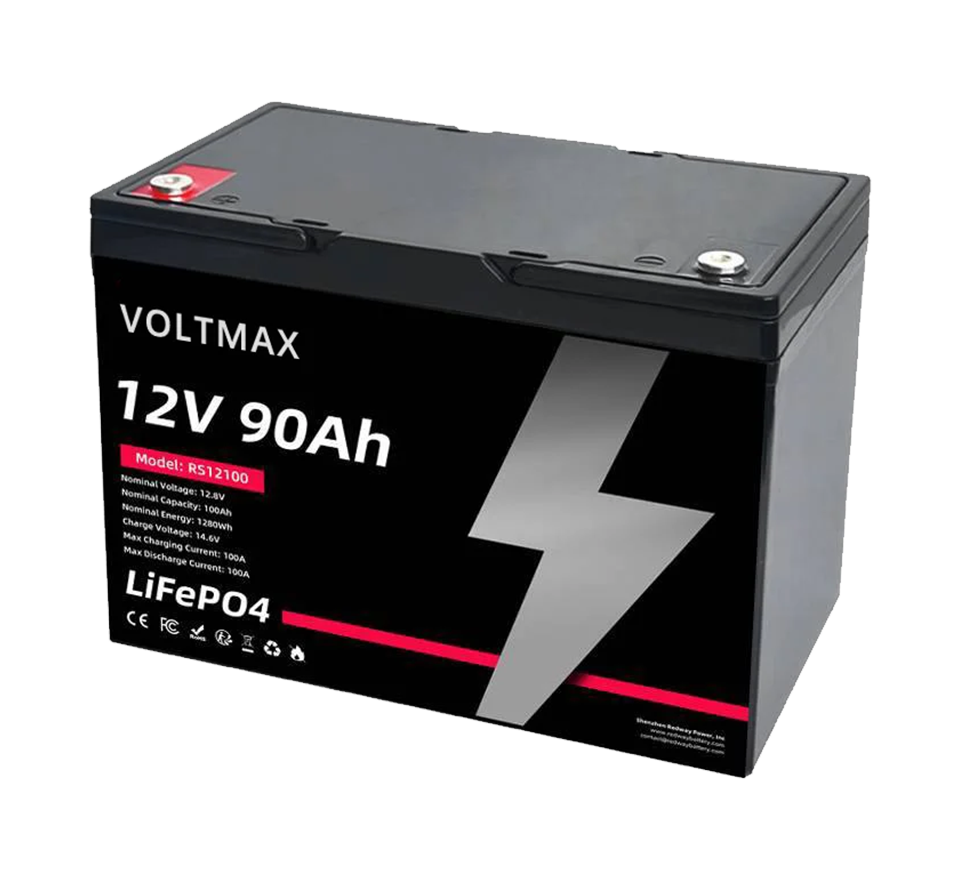

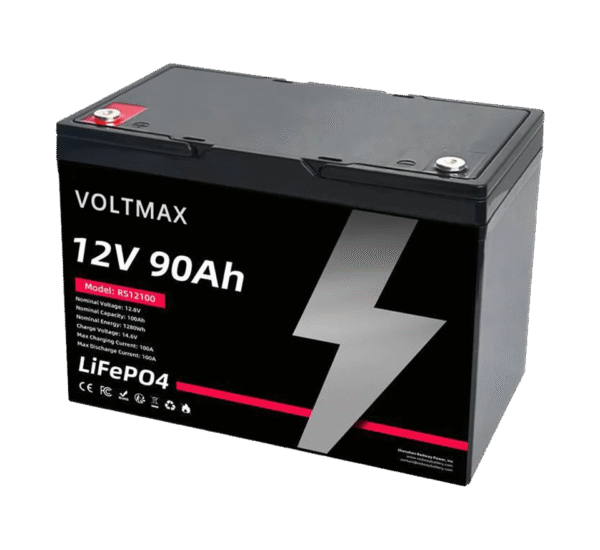

12V 90Ah lithium battery (BCI Group 27)
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:90Ah
Rated energy: 1152Wh

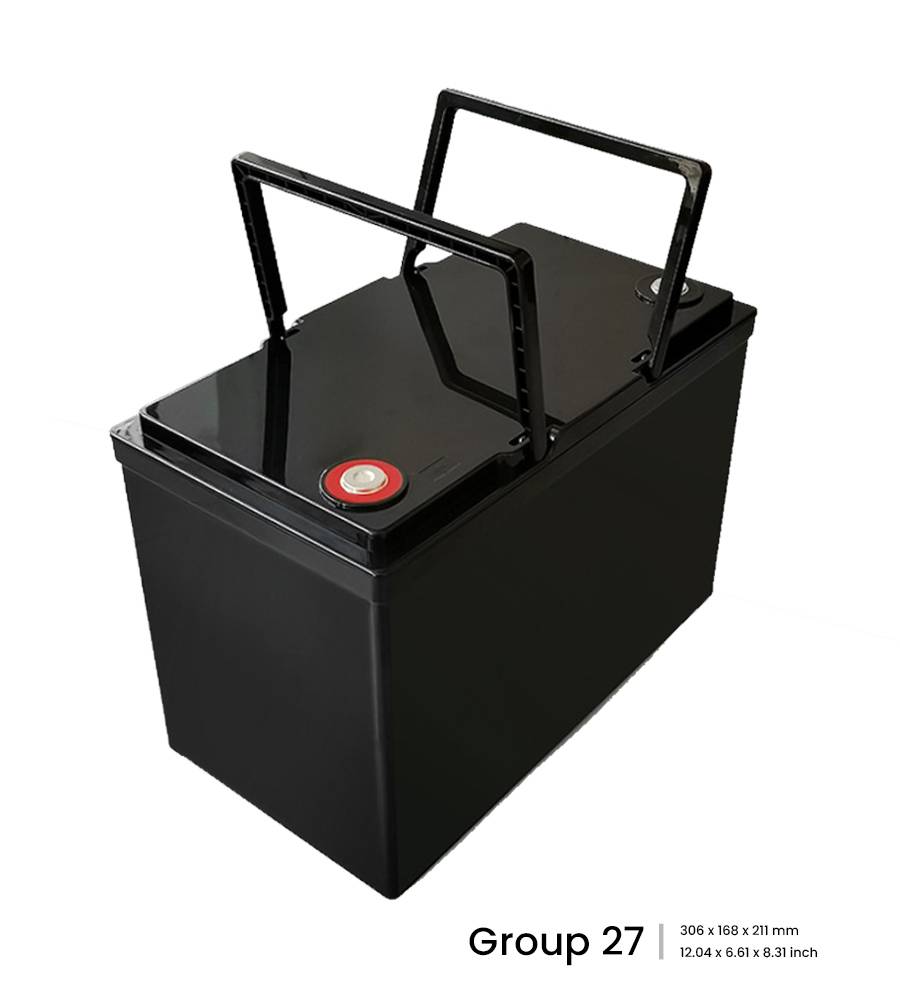

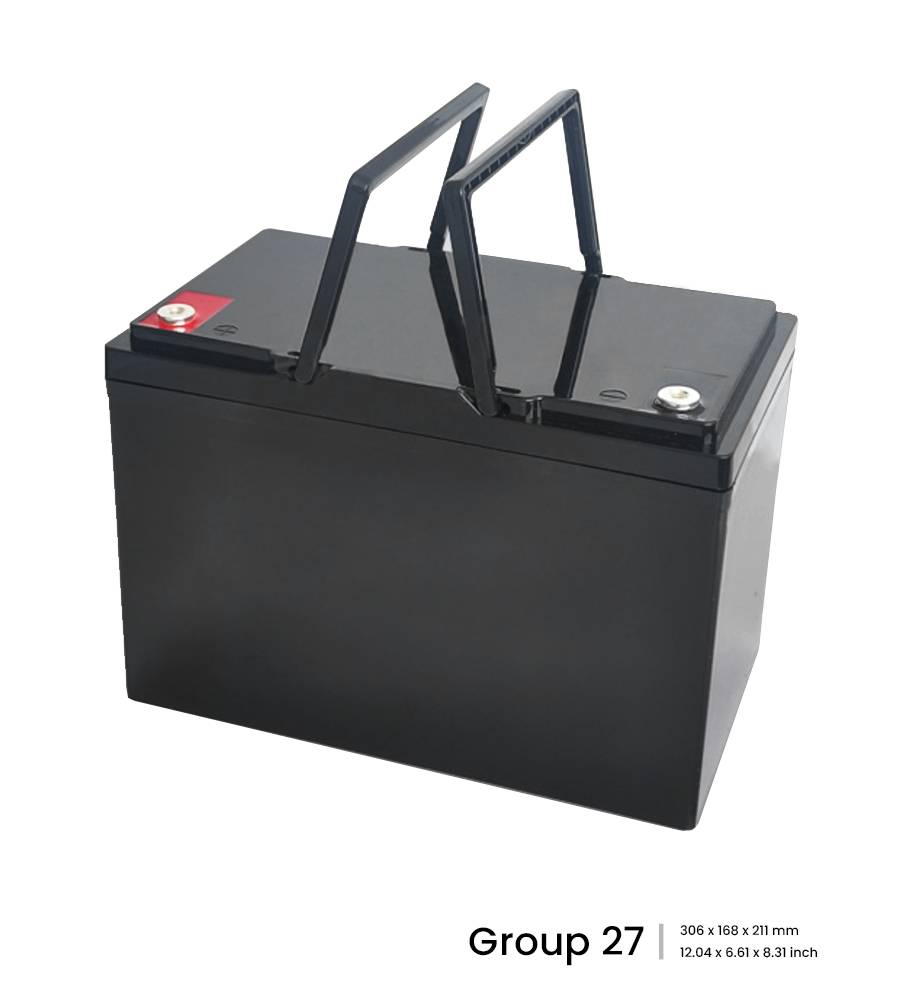

Dimensions (length x width x height): 360×168×211mm/ (12×6.6×8.3 inches)
Weight: 8KG/17.6 pounds
IP Rating: IP65
12V 90Ah lithium battery (24 groups) high-performance energy solution is designed for a variety of applications, including recreational vehicles, RVS, ships, boats, yachts and solar MPPTS. It uses long-life LiFePO4 lithium batteries, which provide reliable power and have a nominal energy output of 1152Wh. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy storage.
Key features:
High energy density: Provides a nominal energy of 1152Wh, offering sufficient power for demanding applications.
Long cycle life: Capable of exceeding 5000 cycles (80% DOD ), ensuring extended service life and increased value.
Wide temperature range: Operates effectively within the following temperature range -20°C to 65°C, suitable for diverse environments.
Low self-discharge rate: Maintains a self-discharge rate of only 2% per month, ensuring preparedness when needed.
Customizable options: Please choose OEM/ODM projects, allowing customization of specifications to meet your unique requirements.
Product Description:
The 12V 90Ah lithium battery is specifically designed for those who demand reliability and performance in energy solutions. With a nominal voltage of 12.8V, this battery is manufactured using A-grade LiFePO4 cells to ensure safety and stability. Its compact size measures 306 x 168 x 211 mm (12 x 6.6 x 8.3 inches) and is lightweight, weighing only 8kg, making it easy to install in various applications.
The battery supports a maximum continuous charging and discharging current of 90A, making it ideal for high-demand situations. The sturdy structure has an IP65 rating to prevent dust and water from entering. Through optional upgrades such as self-heating, Bluetooth connectivity, and solar compatibility, this battery can be customized according to specific needs.
Backed by a 3-year warranty , the 12V 90Ah lithium battery complies with multiple certifications such as UL, CE, and RoHS, and is a reliable choice for automotive, renewable energy, marine, and backup power applications. Whether you are stocking up for wholesale distribution or seeking a customized solution for your brand, this battery is your top choice for achieving outstanding performance and reliability in the energy field.
12V90AH | Specifications |
Model | AG1290LFP-LPRV |
Battery Type | Lithium Iron Phosphate (LFP) |
Rated Voltage | 12.8V |
Nominal Capacity | 90Ah |
Nominal Energy | 1152Wh |
Charging Voltage | 14.6V |
Discharging Voltage | 10V |
Maximum Continuous Charging Current | 90A |
Maximum Continuous Discharging Current | 90A |
Dimensions | 306x168x211mm / 7×6.6×4.9 inches / BCI Group 27 |
Weight | 8kg / 17.6lbs |
IP Rating | IP65 |
Maximum Parallel Connections | 6 |
Cycle Life | >5000 cycles (80% DOD ) |
Self-discharge | 2% (per month) |
Charging Temperature | 0°C~60°C |
Discharging Temperature | -20℃~60℃ |
Optional Functions | Self-heating / Bluetooth / App / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / RJ45 / Solar MPPT / Active balancing / etc. |
Charger | 14.6V 10A |
BMS | JBD Intelligent BMS |
Terminal | M8 |
Battery Case | ABS |
Warranty Policy | 3 years |
Silk Screen Printing / Label / Laser Logo | Yes |
User Manual | Yes |
Customization / OEM / ODM | Yes |
Shipping | Yes |
Company Certifications | UL1642, IEC 62619, CE, MSDS, UN38.3 |
