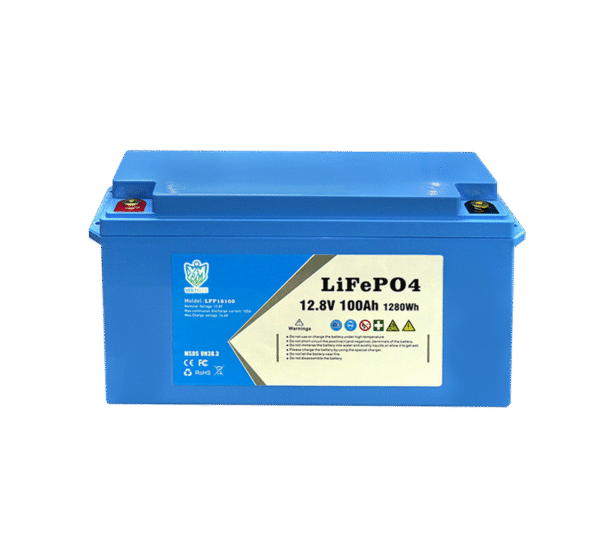

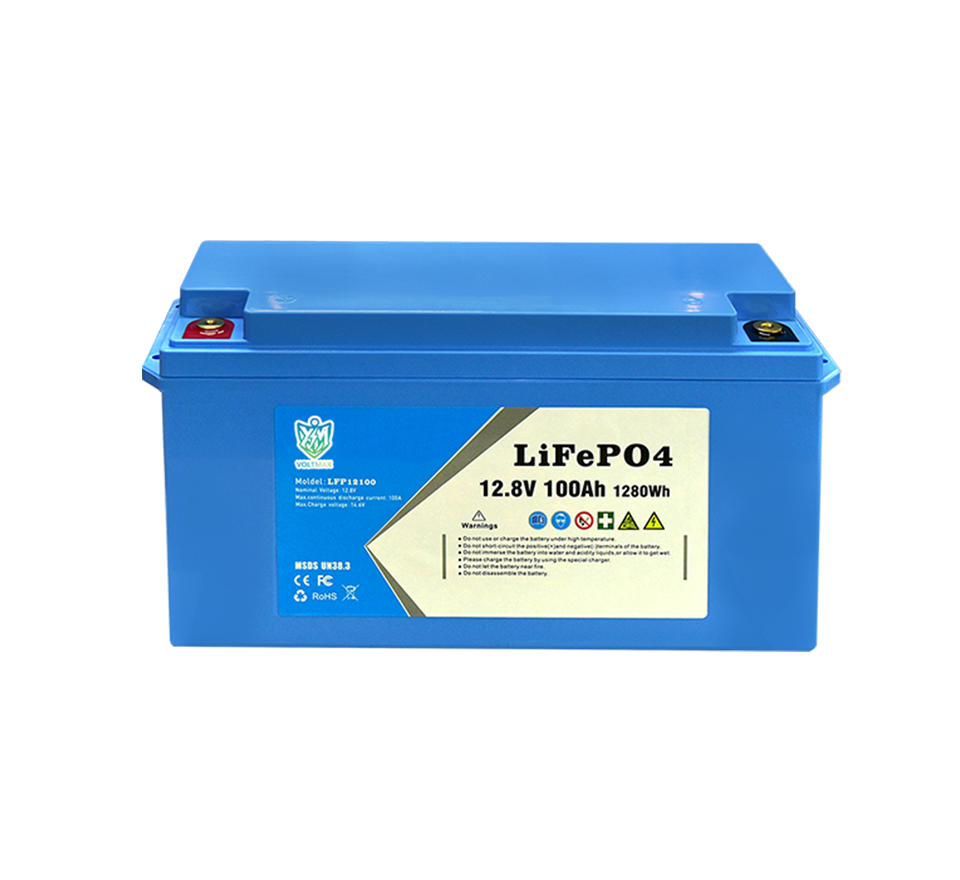

12.8V 80AH/100AH/120AH LiFePO4 Battery
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment.
Type: LiFePO4 Battery Pack
Cathode Material: LFP
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: AOGE POWER
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.
Key Features & Benefits
High Energy Density – With a 1280Wh (1.28kWh) capacity, this battery delivers consistent, reliable power for demanding applications.
Long Cycle Life – Engineered for 5000+ cycles at 80% DOD and 4000+ cycles at 100% DOD, ensuring over a decade of dependable use.
Fast & Efficient Charging – Supports up to 100A charging with a recommended 14.6V 20A charger, reaching full charge in just 5 hours.
Advanced BMS Protection – Integrated JBD BMS safeguards against overcharge, over-discharge, short circuits, and temperature extremes.
Durable & Weatherproof – IP65-rated for dust and water resistance, making it suitable for harsh environments like mountains, deserts, and damp conditions.

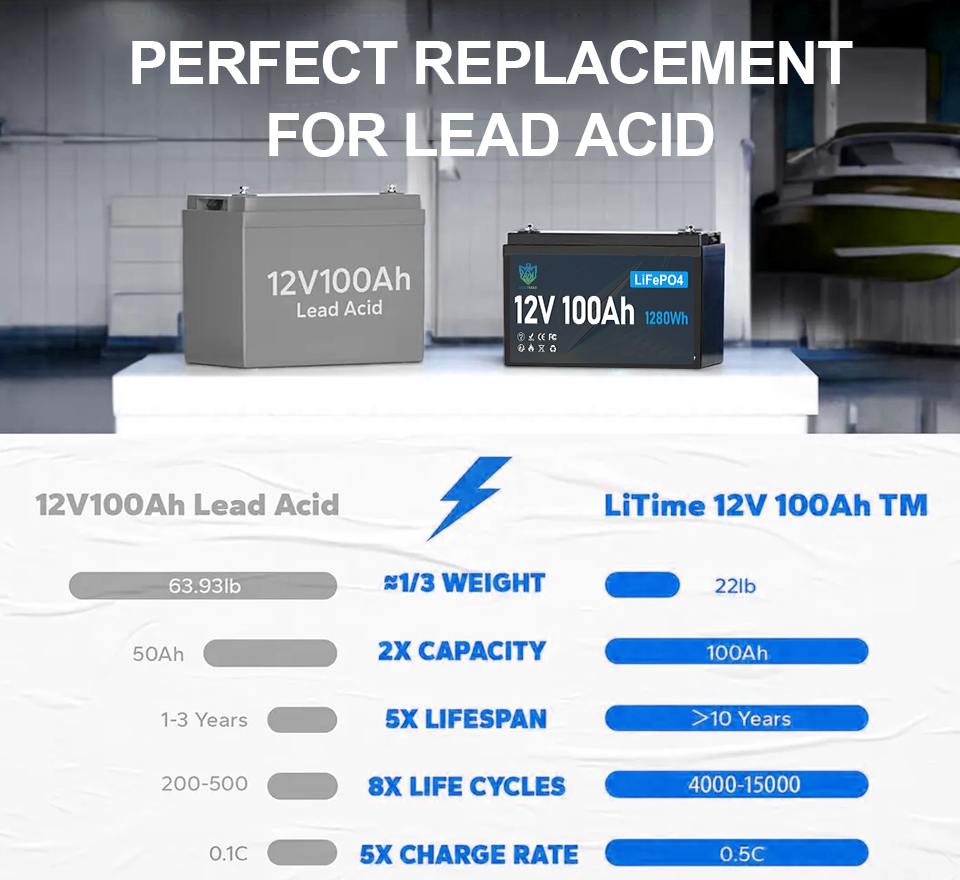

Lightweight & Compact – At just 10 kg, it offers greater energy output with 50% less weight compared to traditional lead-acid batteries.
Scalable Power – Supports 4 batteries in series (48V systems) or 4 in parallel (400Ah capacity) for expanded energy needs.
Smart Technology (Optional) – Upgrade with Bluetooth, WiFi, GPS, LCD Display, RS485/CAN bus, or self-heating for advanced monitoring and control.
Product Description
Solar Energy Storage 12.8V 100Ah LiFePO4 Battery Lead Acid Replacement LiFeP04 batteries from AOGE POWER are a new generation source of energy storage product. Built-in BMS controls the charging and discharging process, protects the battery against overcharging, deep discharge, overload and overheating,over temperature,over voltage,under voltage etc. Compared to traditional lead-acid technology, including AGM and GEL, 12V/24V series lithium ion batteries produce by AOGE POWER are characterized by much greater resistance to deep and frequent discharges.
LFP BATTERY TO REPLACE VRLA BATTERY -AOGE LP SERIES | |||
MODEL | AG1284LFP-LP | AG12100LFP-LP | AG12125LFP-LP |
Rated Voltage | 12.8V | ||
Rated Capacity | 84Ah | 100Ah | 125Ah |
Rated Energy | 1075.2Wh | 1280Wh | 1600Wh |
MAX.Charge Voltage | 14-14.6V | ||
RECMD charge current(0.2C) | 16.8A | 20A | 25A |
RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 14.6V, and initial charge-current at 0.2C5A; change battery continuously till the current drops less 0.02C5A | ||
Max.Charge Current(0.5C) | 42A | 50A | 62.5A |
Discharge CUT-OFF Volt. | 10V | ||
RECMD discharge current(0.2C) | 16.8A | 20A | 25A |
Max.Discharge Current(1C) | 84A | 100A | 125A |

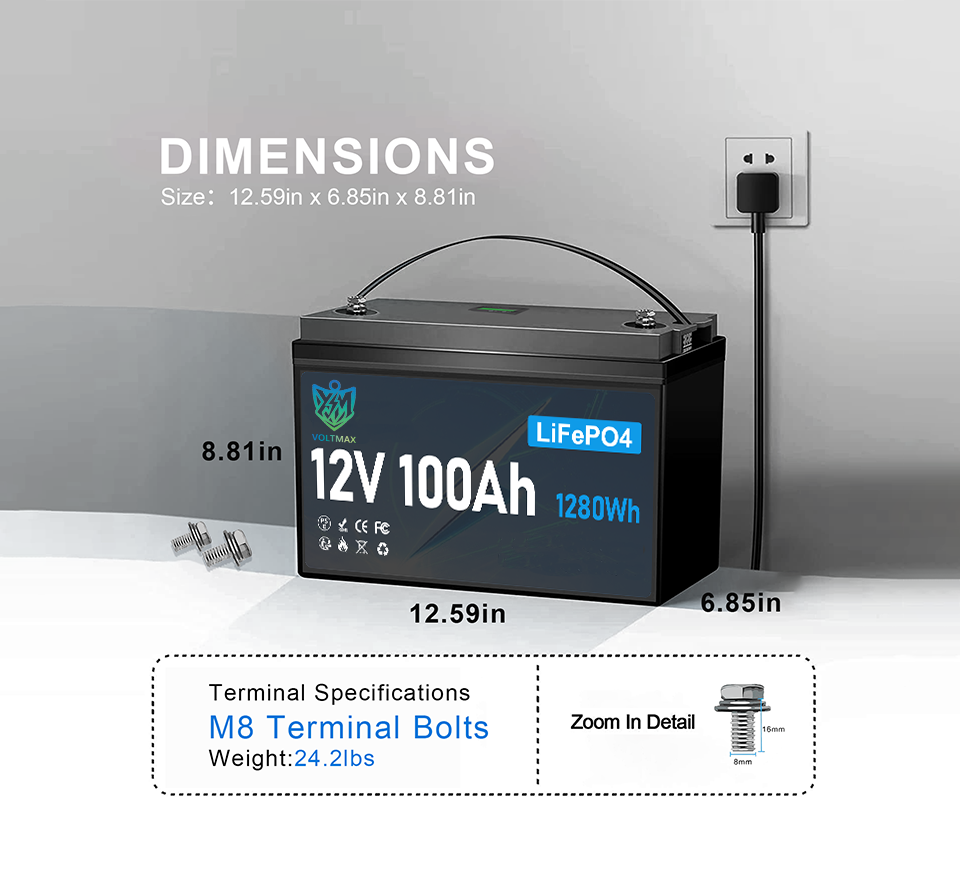

Dimensions(L*W*H*TH)MM | 260*168*209*212 | 331*175*215*220 | 331*175*215*220 |
Weight(APPROX)KG±3% | 8.5KG | 10KG | 12.5KG |
INTERNAL RESISTANCE (≦MΩ) | 2.5 | 0.8 | 0.6 |
IP Rating | IP65 | ||
Max Parallel | 4 | ||
Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) | ||
Self-Discharge | ≦3% (per month) | ||
Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity | ||
Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity | ||
Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / etc. | ||
BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. | ||
Terminal | M6 | M8 | M8 |
Battery Case | ABS | ||
Design Life/WARRANTY | 10 Years/3 YEARS |
