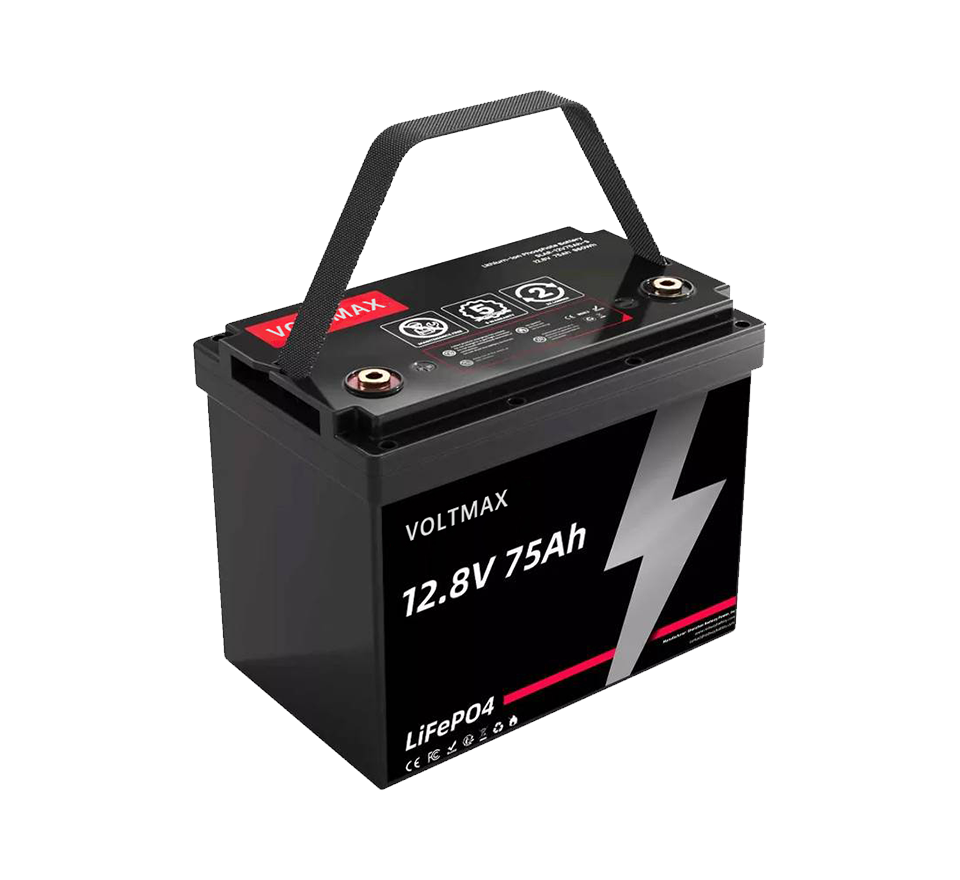

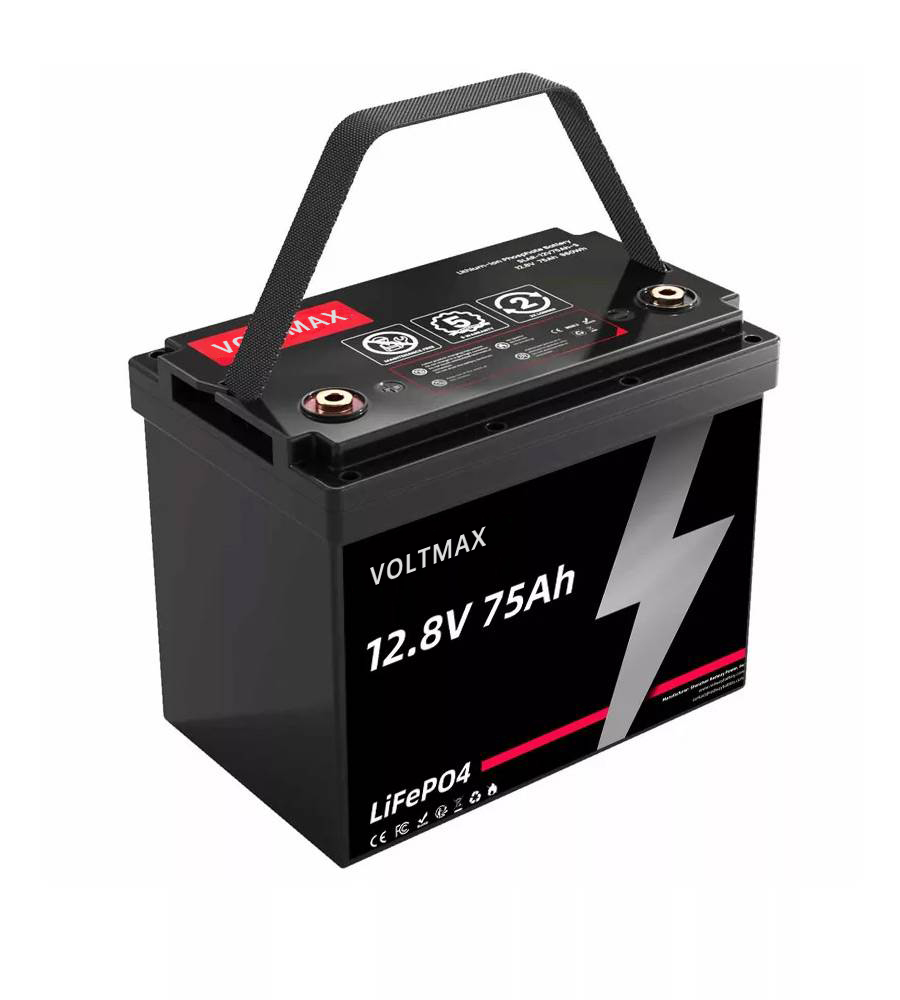

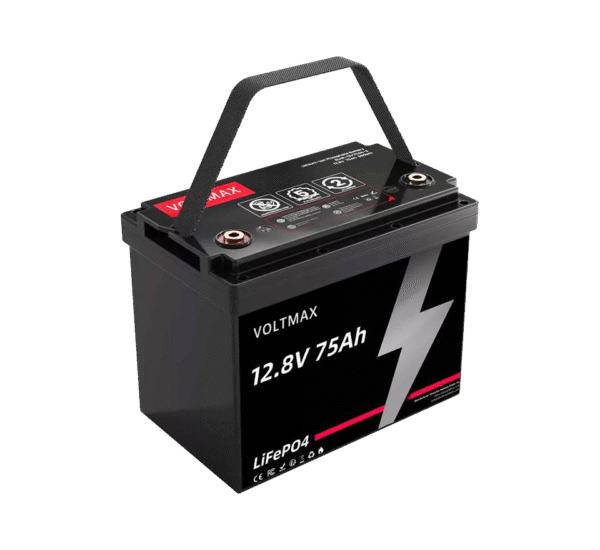

12V 75Ah lithium battery
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity: 7h
Rated energy: 960Wh
Dimensions (length x width x height): 260×168×210mm/ (10.2×6.6×8.3 inches)
Weight: 6KG/13.2 pounds
IP Rating: IP65
12V 75Ah lithium battery (24 groups) Aoge Power high-performance energy solution is designed for a variety of applications, including recreational vehicles, RVS, ships, boats, yachts and solar MPPTS. It uses long-life LiFePO4 lithium batteries, which provide reliable power and have a nominal energy output of 960Wh. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy storage.
Key features:
Compact and lightweight: Weighing only 6 kg and measuring 260×168×210mm, this battery is extremely easy to install in a confined space.
Long cycle life: Designed for 5000 cycles (80% DOD ), ensuring long-term reliability and efficiency.
Built-in BMS protection: Equipped with an intelligent battery management system (BMS) to prevent overcharging, overdischarging and short circuits.
Multiple operating conditions: Operates effectively within the temperature range of -20°C to 65°C, suitable for various environments.
Multiple applications: Very suitable for use in alarm systems, marine electronic equipment, solar panel kits, UPS backup systems, etc.
Product Description:
The 12V 75Ah LFP lithium battery is specially designed to meet the energy demands of various applications such as recreational vehicles, fishing boats and off-grid solar systems. With a maximum continuous charging and discharging current of 75A, this battery ensures efficient power management and meets all your needs.
This battery is made of high-quality ABS material, which can withstand harsh conditions while maintaining the best performance. It operates effectively within a temperature range of 0°C to 60 °C for charging and -20°C to 65 °C for discharging.
This battery is equipped with an intelligent BMS to prevent overcharging, overdischarging, short circuits and other potential dangers. The self-discharge rate is approximately 2% per month, ensuring that the battery can maintain its charge during idle periods. The warranty period is 3 years.
12V 75Ah lithium battery is the first choice for Oems, wholesalers and those seeking high-performance energy solutions. Contact us immediately to explore customization options and bulk purchase discounts!
12V75AH Lithium Iron Phosphate | Specifications |
Model | AG1275LFP-LPRV |
Lithium Battery | Lithium Iron Phosphate (LFP) |
Rated Voltage | 12.8V |
Nominal Capacity | 75Ah |
Nominal Energy | 960Wh |
Maximum Charging Voltage | 14.6V |
Discharge Cut-off Voltage | 10V |
Maximum Continuous Charging Current | 75A |
Maximum Continuous Discharging Current | 75A |
Dimensions [Length x Width x Height] | 260×168×210mm / 10.2×6.6×8.3 inches / BCI Group 24 |
Weight | 6kg / 13.2lbs |
IP Rating | IP65 |
Maximum Parallel Connections | 6 |
Internal Resistance | ≤10mΩ |
Cycle Life | >5000 cycles (80% DOD ) |
Self-discharge | 2% (per month) |
Charging Temperature | 0°C~60°C |
Discharging Temperature | -20℃~65℃ |
Optional Upgrades | Self-heating / Bluetooth / App / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / RJ45 / Solar MPPT / Active balancing / etc. |
Charger | 14.6V 10A |
BMS | JBD Intelligent BMS |
Terminal | M8 |
Battery Case | ABS |
Warranty Policy | 3 years |
Silk Screen Printing / Label / Laser Logo | Yes |
User Manual | Yes |
OEM/ODM | Yes |
Shipping | Yes |
Company Certifications | UL1642, IEC 62619, CE, MSDS, UN38.3 |
