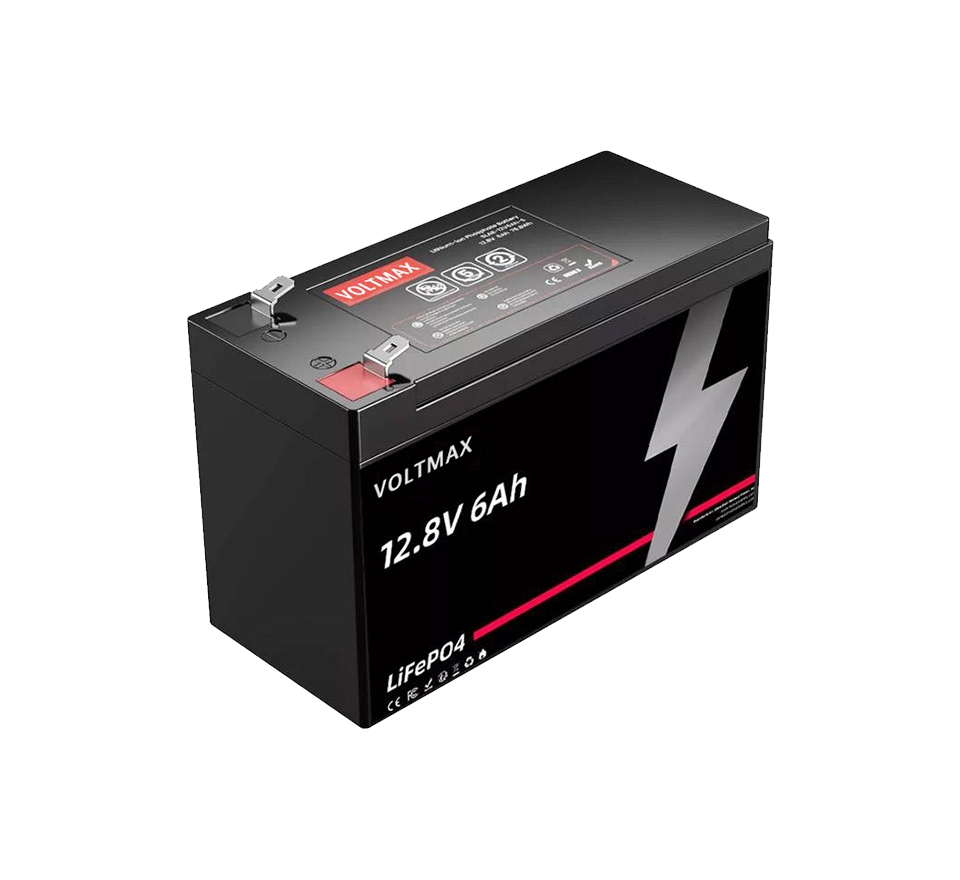

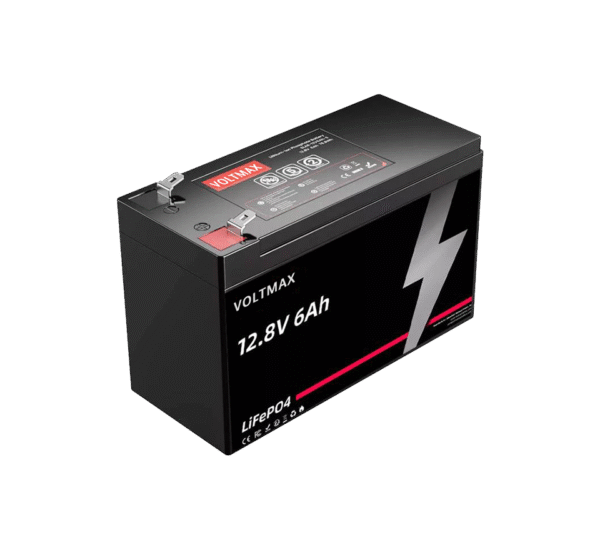

Aoge Power Introduction: 12V 6Ah Lithium Battery, specially designed for compact energy storage solutions for various applications (such as alarm systems, power wheels, fish finder, and UPS). This lightweight battery uses LiFePO4 (LFP) cylindrical lithium batteries, featuring excellent performance and high reliability, making it an ideal choice for OEMs, ODMs, and wholesale buyers.

Key features:
Compact and lightweight: Weighing only 0.7 kg (1.54 pounds), this battery is easy to install in applications with limited space.
High cycle life: Capable of exceeding 4,000 cycles (80% DOD ), ensuring long-lasting performance and value.
Low self-discharge rate: Maintain a self-discharge rate of only 1% per month to ensure that the battery is ready when you need it.
Wide temperature range: Operates effectively within the following temperature range -20°C to 65°C, suitable for various environments.
Customizable options: Please choose the OEM/ODM project, which enables customization of specifications to meet your unique requirements.

Product Description:
The 12V 6Ah lithium battery is specifically designed for users who require reliable and efficient compact energy solutions. With a nominal voltage of 12.8V, this battery uses high-quality LiFePO4 cells to ensure safety and stability. Its dimensions are 151 x 65 x 95 millimeters (5.9 x 2.5 x 3.7 inches), making it ideal for applications with limited space.
This battery supports a maximum continuous charging current of 6A and a discharge current of 10A. It is highly suitable for powering alarm systems, fishing equipment and portable electronic devices. The sturdy structure has an IP65 rating, which can prevent dust and water from entering. Optional upgrades include Bluetooth connection and an LCD display, which can be customized according to specific needs.
· The design life of up to 10 years, the Voltmax power 12V 6Ah lithium battery complies with multiple certifications, including UL and CE. It is a reliable choice for various applications. Whether you want to stock up for wholesale distribution or seek a customized solution for your brand, this battery is your top choice for achieving outstanding performance and reliability in the energy field.

CharacteristicSpecifications
ModelAG126LFP-LPRV
Lithium BatteryLithium Iron Phosphate (LFP)
Rated Voltage12.8V
Nominal Capacity6Ah
Nominal Energy76.8Wh
Maximum Charging Voltage14.6V
Discharge Cut-off Voltage10V
Maximum Continuous Charging Current6A
Maximum Continuous Discharging Current10A
Dimensions [Length x Width x Height]151x65x95mm / 5.9×2.6×3.7 inches
Weight0.7kg / 1.5lbs
IP RatingIP65
Maximum Parallel Connection NumberNot Supported
Internal Resistance≤10mΩ
Cycle Life>4000 cycles (80% DOD )
Self-discharge2% (per month)
Charging Temperature0°C~60°C
Discharging Temperature-20°C~65°C
Optional UpgradeNot Supported
Charger14.6V 2A
BMSIntelligent BMS

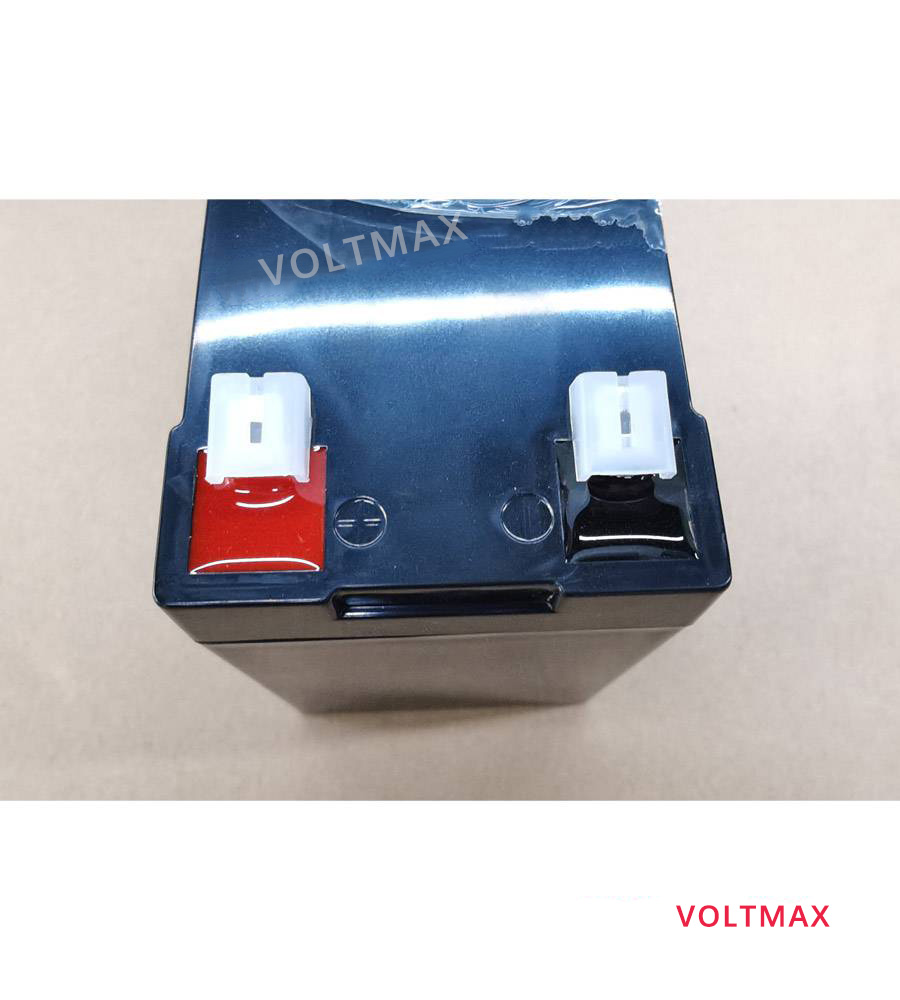

TerminalM8
Battery ShellABS
Warranty Policy3 years
Screen Printing/Labels/Laser MarkingYes
User ManualYes
OEM/ODMYes
DeliveryYes
Company CertificatesUL1642, IEC 62619, CE, MSDS, UN38.3
