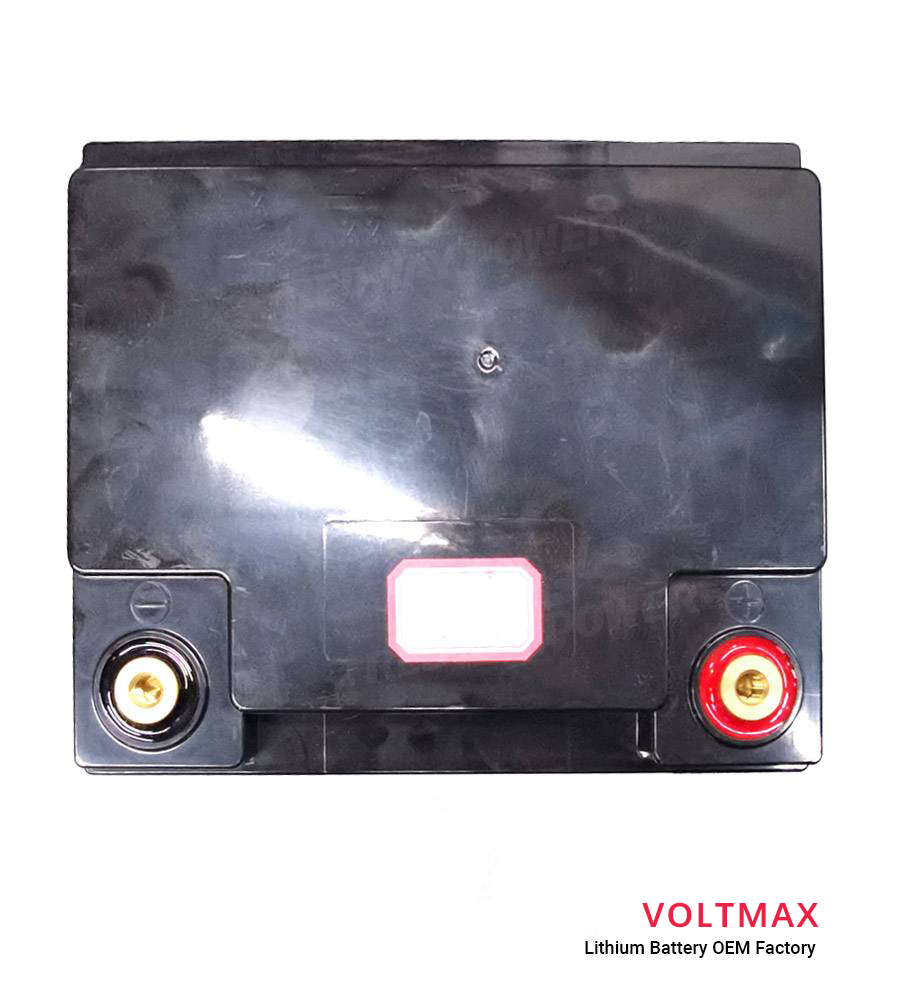

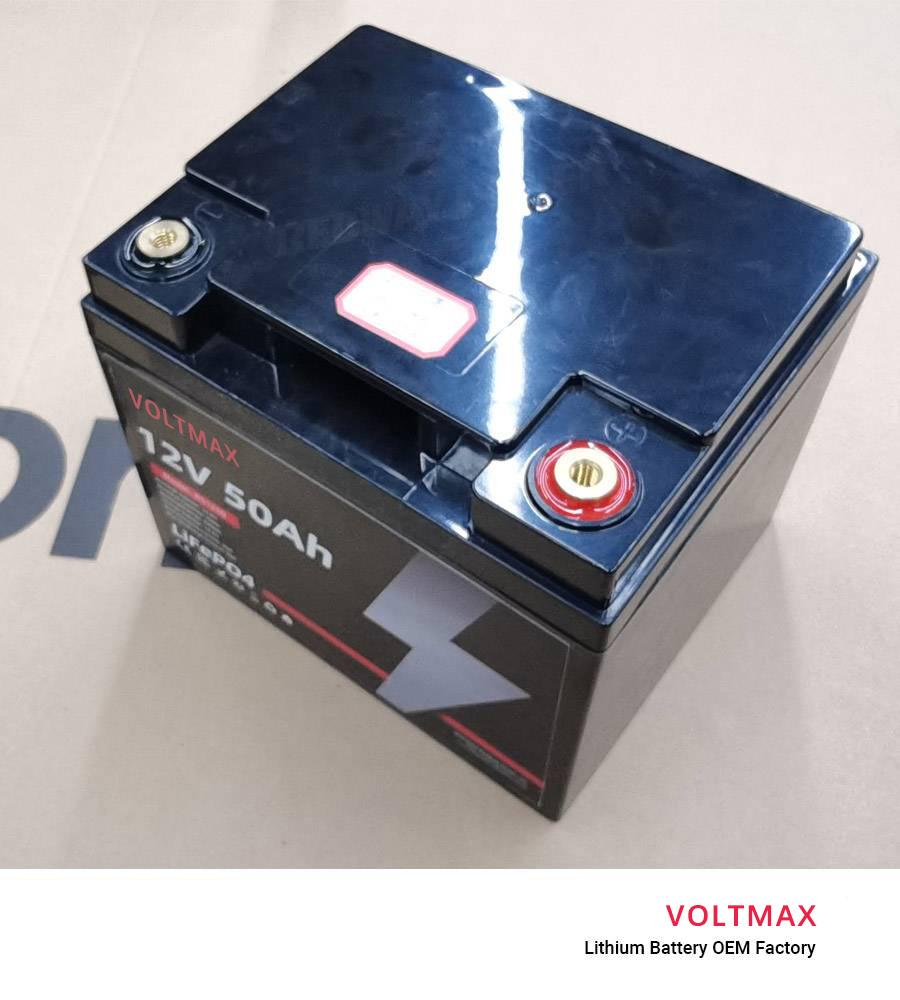

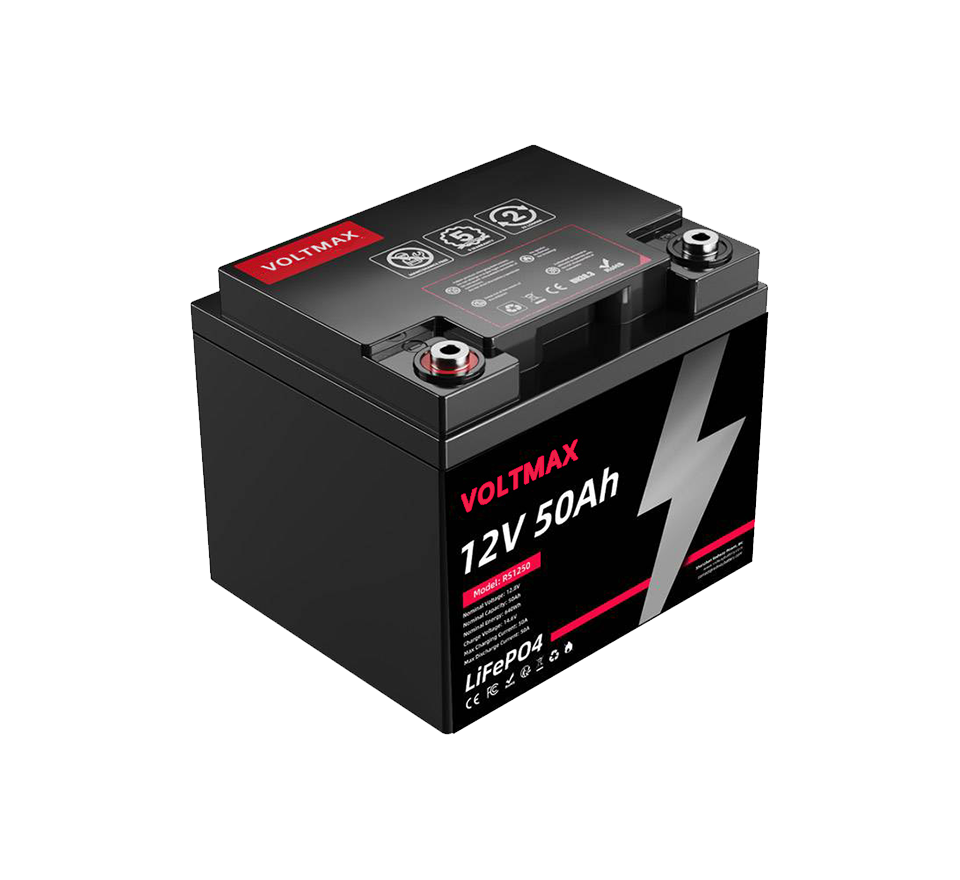

12V 50Ah lithium battery
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity: 50Ah
Rated energy: 640Wh
Dimensions (length x width x height): 198 x 166 x 170 / (7.8 x 6.5 x 6.7 inches)
Weight: 5KG/11 pounds
IP Rating: IP65
This powerful and reliable energy solution with a 12V 50Ah lithium-ion battery from Aoge Power is specially designed for various applications. By leveraging the advanced LiFePO4 technology, this battery can provide a nominal energy output of 640Wh. It is highly suitable for OEM/ODM and wholesale buyers, offering customized options and reliable performance for power supply equipment in RV, Marine applications and solar systems.
Key features:
Compact and lightweight: Weighing only 2 kg and measuring 177x167x124 mm, this battery is extremely easy to install in a confined space.
Long cycle life: Designed for 4000 cycles (80% DOD ), ensuring long-term reliability and efficiency.
Built-in BMS protection: Equipped with an intelligent battery management system (BMS) to prevent overcharging, overdischarging and short circuits.
Multiple operating conditions: Operates effectively within the temperature range of -20°C to 65°C, suitable for various environments.
Multiple applications: Very suitable for use in alarm systems, marine electronic equipment, solar panel kits, UPS backup systems, etc.
Product Description:
The 12V 50Ah lithium-ion battery is a versatile power solution designed for demanding applications. This battery features high-quality lithium iron phosphate cells, providing a rated voltage of 12.8V and an energy capacity of 640Wh, making it ideal for powering RVs, marine electronic equipment, solar panel systems, and other devices.
It is specifically designed for efficient operation under various conditions, allowing charging within the temperature range of 0°C to 60°C, and also at -20°C and 65°C. The self-discharge rate remains at 2% per month, allowing for extended storage without capacity loss.
The maximum continuous charging and discharging current is 50A, enabling this battery to effectively meet large power demands. The durable ABS casing ensures impact resistance while maintaining a lightweight design.
For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals. Our flexible delivery terms (FOB, EXW, CIF) ensure that your order is promptly processed within the specified time frame of 20 days. Choose 12V 50Ah lithium-ion battery (LiFePO4) to provide unparalleled performance, reliability, and innovative technology for your energy storage solution. Use our reliable batteries to enhance your power capacity – your efficient energy journey begins here!
12V50AH Lithium Iron Phosphate | Specifications |
Model | AG1250LFP-LPRV |
Lithium Battery | Lithium Iron Phosphate (LFP) |
Rated Voltage | 12.8V |
Nominal Capacity | 50Ah |
Nominal Energy | 640Wh |
Maximum Charging Voltage | 14.6V |
Discharge Cut-off Voltage | 10V |
Maximum Continuous Charging Current | 25A (0.5C) |
Maximum Continuous Discharging Current | 25A (0.5C) |
Dimensions [Length x Width x Height] | 198×166×170mm / 7.8×6.5×6.7 inches |
Weight | 5kg / 11lbs |
Charger | 14.6V 10A |
Cycle Life | >4000 cycles (80% DOD ) >3000 cycles (100% DOD ) |
Internal Resistance | ≤10mΩ |
Maximum Series Connections | 4 |
Maximum Parallel Connections | 4 |
Self-discharge | 2% (per month) |
Charging Temperature | 0°C~60°C |
Discharging Temperature | -20℃~65℃ |
Storage Temperature | -10℃~50℃ |
Self-heating | Optional |
LCD Display | Optional |
Optional Upgrades | Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / RJ45 / Modbus / Power switch / Circuit breaker / Active balancing / etc. |
BMS | Overcurrent / Overvoltage / Undervoltage / Overcharge / Overdischarge / Overheat / Over-temperature / Low-temperature / Short circuit / etc. |
Terminal | M8 |
Battery Case | ABS |
Warranty Policy | 10 years |
Silk Screen Printing / Label / Laser Logo | Yes |
User Manual | Yes |
OEM/ODM | Yes |
Shipping | Yes |
Company Certifications | UL 1642 / IEC 62619 / CE / MSDS / UN38.3 |
