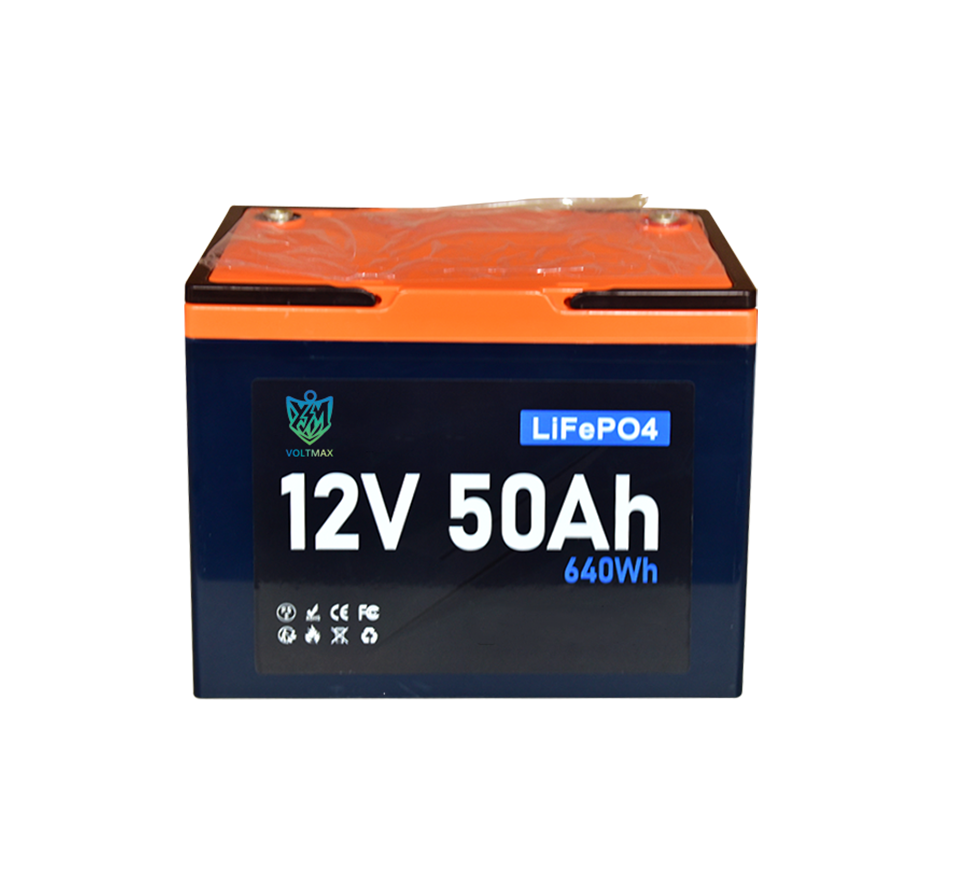

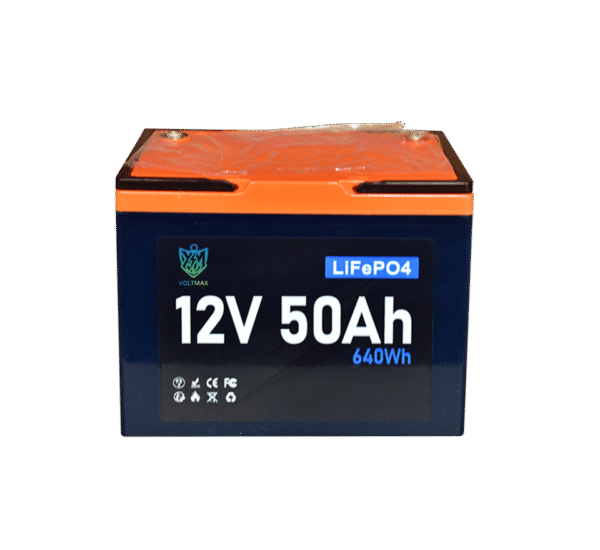

12.8V 50AH LiFePO4 Battery for solar
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment.
Type: LiFePO4
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, LiFePO4
Nominal Capacity: 12V
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: AOGE POWER
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.
Key Features:
High Energy Capacity:Provides a nominal capacity of 50Ah, delivering 640Wh of energy, perfect for RVs, boats, and off-grid systems.
Long Cycle Life:Designed for over 5000 cycles at 80% Depth of Discharge (DOD), ensuring exceptional longevity and cost-effectiveness.
Integrated BMS Protection:Features an intelligent Battery Management System (BMS) that safeguards against overcharging, over-discharging, and short circuits for enhanced safety.
Wide Operating Temperature Range:Efficiently operates in temperatures from -20°C to 65°C, making it suitable for various environments.
Compact and Lightweight Design:Weighing only 5.6 Kg and measuring 229*138*208*212 mm, this battery is easy to install and transport.
Optional Upgrades : Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / RJ45 / CAN bus / Power Switch / Circuit Breaker / Active Balance / etc.
Product Description:
The AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.
This battery supports a maximum continuous charge and discharge current of 100A, making it ideal for high-demand situations. The robust construction features an IP65 rating, providing protection against dust and water ingress. With optional upgrades such as Bluetooth connectivity, self-heating capabilities, and solar compatibility, this battery can be customized to fit specific needs.
Backed by a generous 5-year warranty and compliance with multiple certifications including UL, CE, and RoHS, the AOGE POWER 12v Lithium Battery stands as a trustworthy choice for automotive, renewable energy, marine, and backup power applications. Whether you’re looking to stock up for wholesale distribution or seeking custom solutions for your brand, this battery is your go-to option for superior performance and reliability in the energy sector.
| Characteristic | Specification |
|---|---|
| Model | AG1250LFP – LP |
| Rated Voltage | 12.8V |
| Rated Capacity | 50Ah |
| Rated Energy | 640Wh |
| MAX. Charge Voltage | 14 – 14.6V |
| RECMD charge current(0.2C) | 10A |
| RECMD charge METHOD | At 0℃ – 45℃, Set up charge voltage at 14.6V, and initial charge – current at 0.2C5A; change battery continuously till the current drops less 0.02C5A |
| Max. Charge Current(0.5C) | 25A |
| Discharge CUT – OFF Volt. | 10V |
| RECMD discharge current(0.2C) | 10A |
| Max. Discharge Current(1C) | 50A |
| Dimensions(LWH*TH)MM | 229*138*208*212 |
| Weight(APPROX)KG±3% | 5.6KG |
| INTERNAL RESISTANCE (≦MΩ) | 0.9 |
| IP Rating | IP65 |
| Max Parallel | 4 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self – Discharge | ≦3% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60 ± 25% Relative Humidity |
| Discharge Temperature | – 20°C ~ 60°C @60 ± 25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self – heating / etc. |
| BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | M6 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
