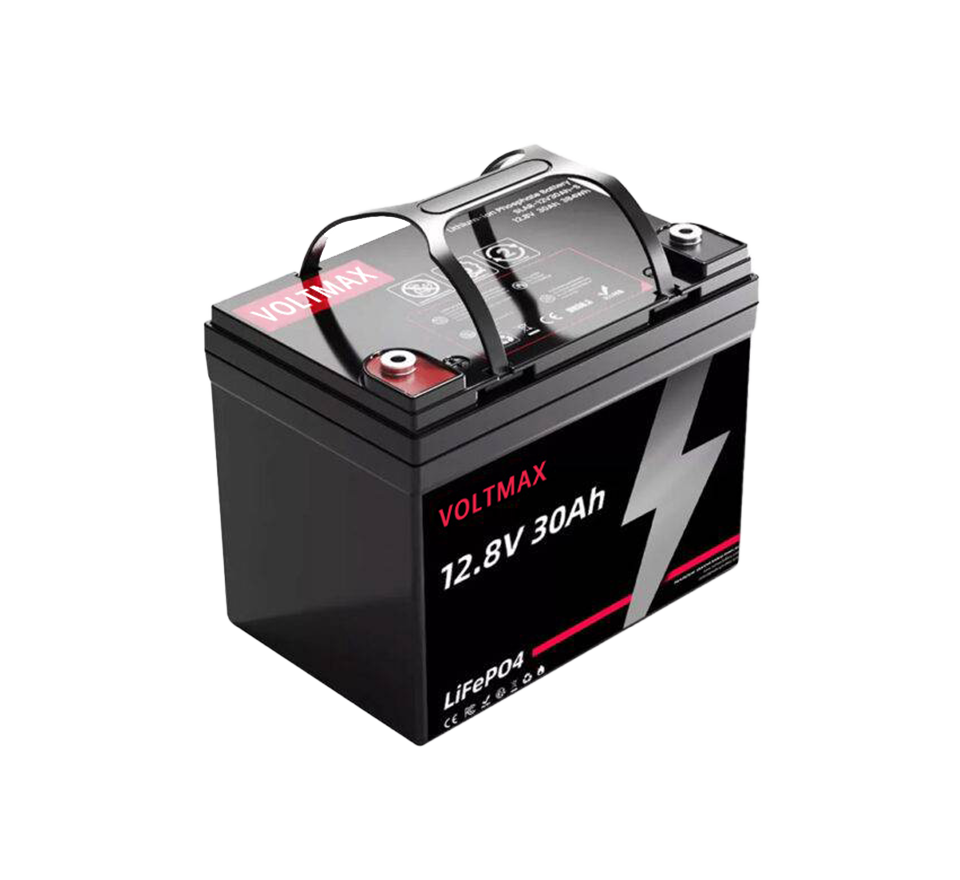

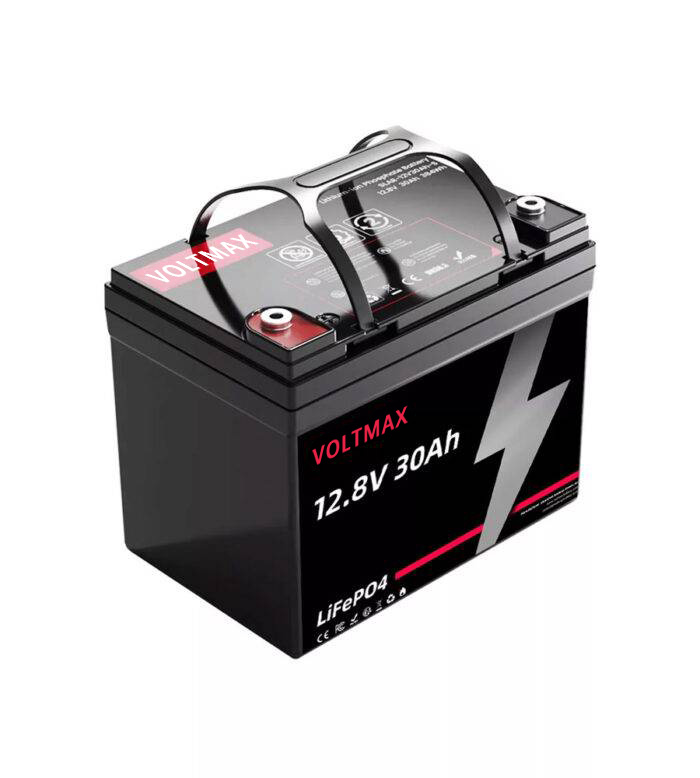

12V 30Ah lithium battery
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity: 30Ah
Rated energy: 384Wh
Dimensions (length x width x height): 195 x 130 x 161 / (7.7 x 5.1 x 6.3 inches)
Weight: 3KG/6.6 pounds
IP Rating: IP65
The 12V 30Ah lithium battery of Aoge Power is a multi-functional and efficient energy solution, suitable for various applications. This battery adopts a LiFePO4 (LFP) cylindrical lithium battery, which can provide a nominal energy output of 307.2Wh. It is highly suitable for OEM/ODM and wholesale buyers. It offers customized options and reliable performance for power supply equipment such as emergency lights, electric motors and solar systems.
Key features:
Compact and lightweight: Weighing only 3 kg and measuring 195×130×161mm, this battery is extremely easy to install in a confined space.
Long cycle life: Designed for 4000 cycles (80% DOD ), ensuring long-term reliability and efficiency.
Built-in BMS protection: Equipped with an intelligent battery management system (BMS) to prevent overcharging, overdischarging and short circuits.
Multiple operating conditions: Operates effectively within the temperature range of -20°C to 65°C, suitable for various environments.
Multiple applications: Very suitable for use in alarm systems, marine electronic equipment, solar panel kits, UPS backup systems, etc.
Product Description:
Aoge Power The 12V 30Ah lithium battery adopts LiFePO4 technology and, compared with traditional lead-acid batteries, has outstanding safety and performance. The nominal voltage of this battery is 12.8V, and the maximum continuous charge/discharge current is 30A, making it suitable for a wide range of applications. Its compact size (195 x 130 x 160 millimeters) makes it easy to install in narrow Spaces. This battery can operate efficiently within a wide temperature range (-20°C to 65°C) and includes optional features such as Bluetooth connectivity and an LCD display to enhance monitoring. With certifications such as IEC and UN38.3, this battery complies with international safety standards and is a reliable choice for your energy storage needs. For bulk orders or customized inquiries, please contact us to discuss your specific requirements.
12V30AH Lithium Iron Phosphate | Specifications |
Model | AG1230LFP-LPRV |
Lithium Battery | Lithium Iron Phosphate (LFP) |
Rated Voltage | 12.8V |
Nominal Capacity | 30Ah |
Nominal Energy | 384Wh |
Maximum Charging Voltage | 14.6V |
Discharge Cut-off Voltage | 10V |
Maximum Continuous Charging Current | 30A (1C) |
Maximum Continuous Discharging Current | 30A (1C) |
Dimensions [Length x Width x Height] | 195×130×161mm / 7.7×5.1×6.3 inches |
Weight | 3kg / 6.6lbs |
Charger | 14.6V 10A |
Cycle Life | >4000 cycles (80% DOD ) >3000 cycles (100% DOD ) |
Internal Resistance | ≤10mΩ |
Maximum Series Connections | 4 |
Maximum Parallel Connections | 4 |
Self-discharge | ≤2% per month |
IP Rating | IP65 |
Charging Temperature | 0°C~60°C |
Discharging Temperature | -20℃~65℃ |
Storage Temperature | -10℃~50℃ |
Self-heating | Optional |
LCD Display | Optional |
Optional Upgrades | Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / RJ45 / Modbus / Power switch / Circuit breaker / Active balancing / etc. |
BMS | Overcurrent / Overvoltage / Undervoltage / Overcharge / Overdischarge / Overheat / Over-temperature / Low-temperature / Short circuit / etc. |
Terminal | M6 |
Battery Case | ABS |
Design Life | 10 years |
Silk Screen Printing / Label / Laser Logo | Yes |
User Manual | Yes |
OEM/ODM | Yes |
Shipping | Yes |
Company Certifications | UL 1642 / IEC 62619 / CE / MSDS / UN38.3 |
