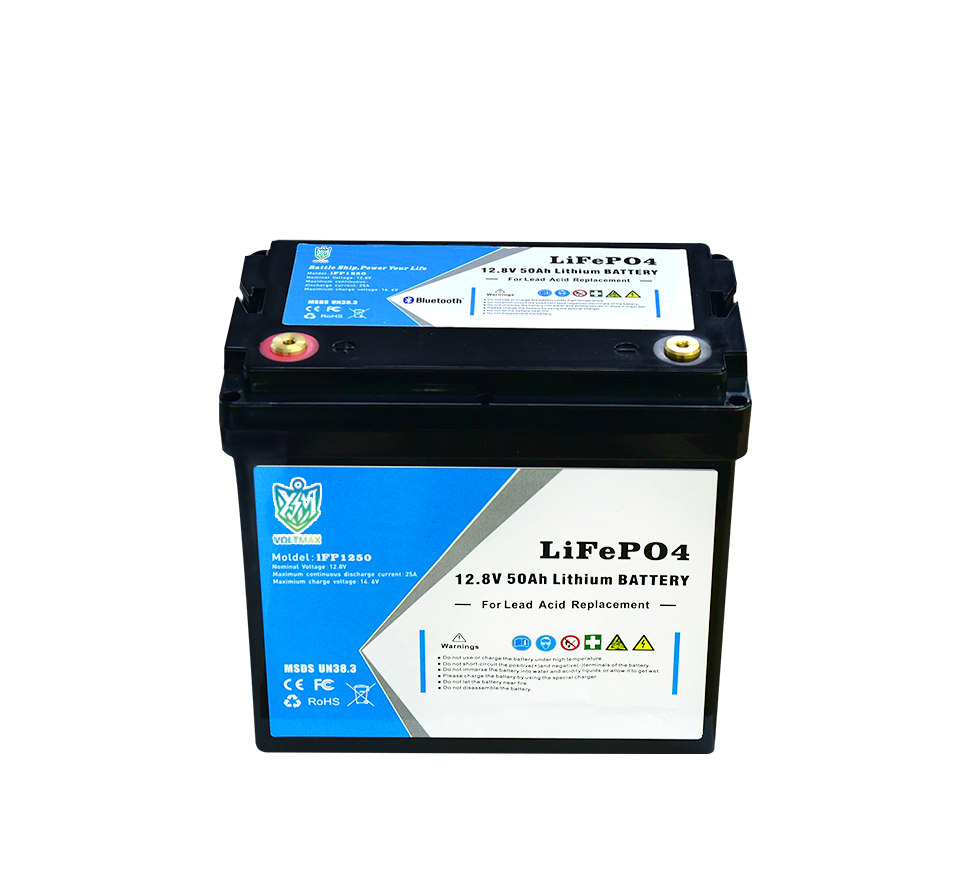

12.8V 20AH/40AH/50AH/60AH/84AH/100AH LiFePO4 Battery
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment.
Type: LiFePO4 Battery Pack
Cathode Material: LFP
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: AOGE POWER
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.
Key Features:
High Capacity:Provides a nominal voltage of 12.8V and a capacity of 20Ah, ensuring reliable power for various devices and applications.
Long Cycle Life:Designed to exceed 5000 cycles at 80% DOD , offering exceptional longevity and reliability.
Compact Size:Dimensions of 181*76*167*167 mm and a lightweight design of approximately 2 kg (4.4 lbs) make it easy to transport and install.
IP65 Rating:Offers excellent protection against dust and water ingress, suitable for outdoor and marine environments.
Customizable Options:Available for OEM/ODM customization, including features like Bluetooth connectivity, WiFi, and other smart functionalities.
Optional Upgrades：Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / RJ45 / CAN bus / Power Switch / Circuit Breaker / Active Balance / etc.
Product Description:
The AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.
This battery supports a maximum continuous charge and discharge current of 100A, making it ideal for high-demand situations. The robust construction features an IP65 rating, providing protection against dust and water ingress. With optional upgrades such as Bluetooth connectivity, self-heating capabilities, and solar compatibility, this battery can be customized to fit specific needs.
Backed by a generous 5-year warranty and compliance with multiple certifications including UL, CE, and RoHS, the AOGE POWER 12v Lithium Battery stands as a trustworthy choice for automotive, renewable energy, marine, and backup power applications. Whether you’re looking to stock up for wholesale distribution or seeking custom solutions for your brand, this battery is your go-to option for superior performance and reliability in the energy sector.
| LFP BATTERY TO REPLACE VRLA BATTERY -AOGE LP SERIES | ||||||
| MODEL | AG1220LFP-LP | AG1224LFP-LP | AG1230LFP-LP | AG1242LFP-LP | AG1250LFP-LP | AG1284LFP-LP |
| battery photo |  |  |  | |  |  |
| Rated Voltage | 12.8V | |||||
| Rated Capacity | 20Ah | 24Ah | 30Ah | 42Ah | 50Ah | 84Ah |
| Rated Energy | 256Wh | 307.2Wh | 384Wh | 537.6Wh | 640Wh | 1075.2Wh |
| MAX.Charge Voltage | 14-14.6V | |||||
| RECMD charge current(0.2C) | 4A | 4.8A | 6A | 8.4A | 10A | 16.8A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 14.6V, and initial charge-current at 0.2C5A; change battery continuously till the current drops less 0.02C5A | |||||
| Max.Charge Current(0.5C) | 10A | 12A | 15A | 21A | 25A | 42A |
| Discharge CUT-OFF Volt. | 10V | |||||
| RECMD discharge current(0.2C) | 4A | 4.8A | 6A | 8.4A | 10A | 16.8A |
| Max.Discharge Current(1C) | 20A | 24A | 30A | 42A | 50A | 84A |
| Dimensions(L*W*H*TH)MM | 181*76*167*167 | 181*76*167*167 | 174*165*125*125 | 197*165*170*170 | 229*138*208*212 | 260*168*209*212 |
| Weight(APPROX)KG±3% | 2kg | 2.5KG | 3.3KG | 5KG | 5.6KG | 8.5KG |
| INTERNAL RESISTANCE (≦MΩ) | 1.25 | 1.25 | 1.9 | 1.25 | 0.9 | 2.5 |
| IP Rating | IP65 | |||||
| Max Parallel | 4 | |||||
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) | |||||
| Self-Discharge | ≦3% (per month) | |||||
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity | |||||
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity | |||||
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / etc. | |||||
| BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. | |||||
| Terminal | M5 | M5 | M6 | M6 | M6 | M6 |
| Battery Case | ABS | |||||
| Design Life/WARRANTY | 10 Years/3 YEARS | |||||
