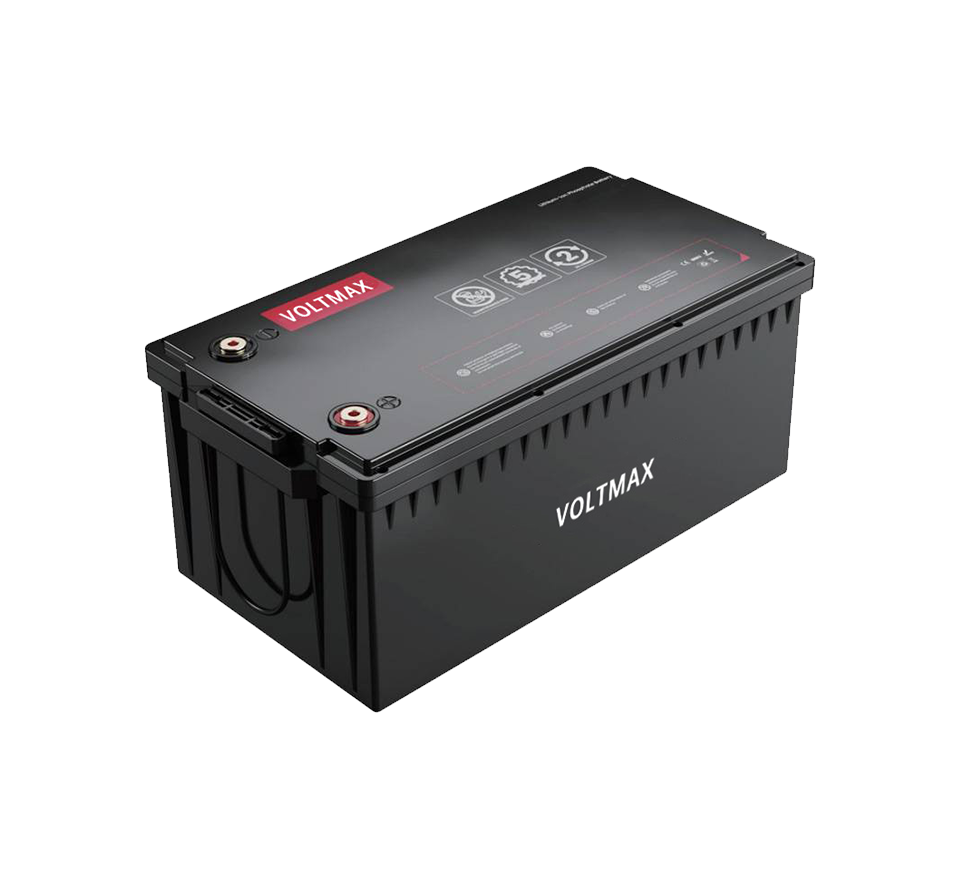

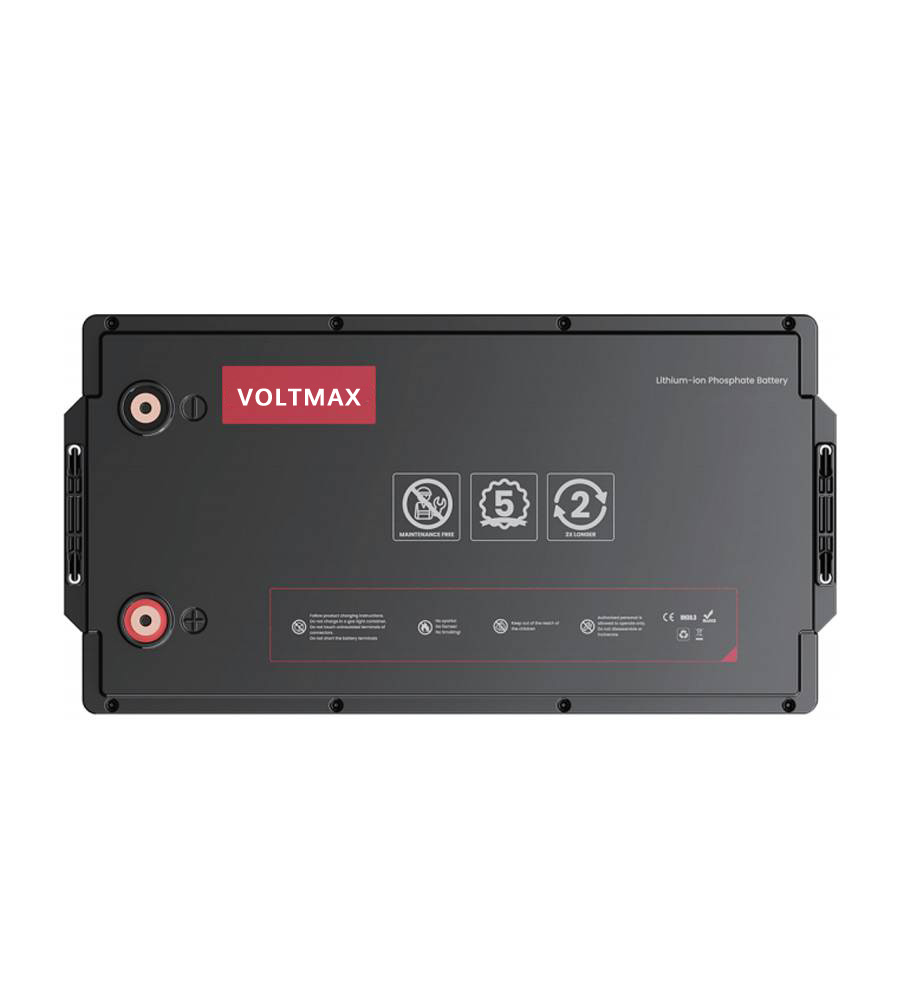

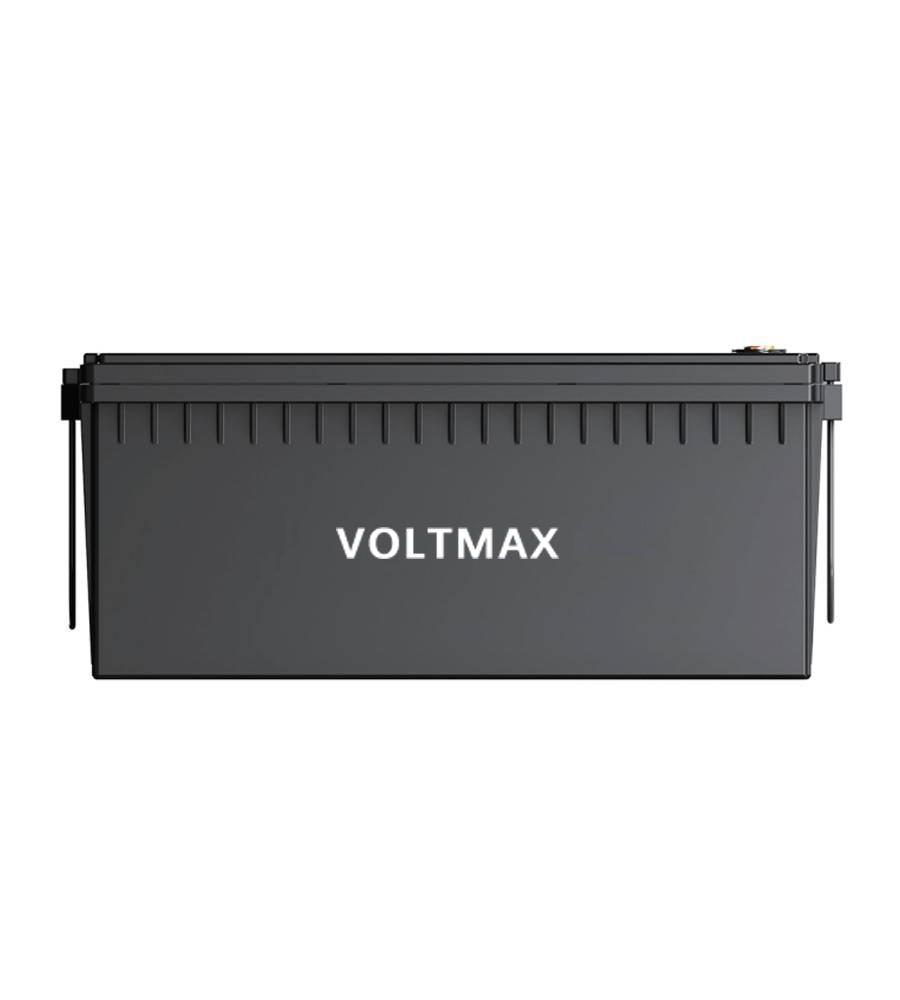

12V 200Ah lithium battery (Super)
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:200Ah
Rated energy: 2560Wh
Dimensions (length x width x height):522×242×220mm
Weight: 24.3KG
IP Rating: IP65
2V 200Ah LiFePO4 lithium battery is specifically designed for high-performance energy storage, making it an ideal choice for recreational vehicles, campers, trailers, yachts, fishing boats, solar storage, and off-grid living. With a capacity of up to 2560Wh, a lifespan of over 5,000 cycles and advanced BMS protection, this battery offers efficient, safe and long-lasting power.
Key features:
Ultra-high capacity – 200 ampere-hours (2560 watt-hours) reliable power to handle energy-intensive applications with ease.
Long lifespan – Designed for 5000 cycles for 80% DOD , it lasts five times longer than lead-acid batteries.
Fast charging and high discharge rate – Supports continuous charging and discharging at 100A, ensuring quick power replenishment.
Advanced BMS protection – Built-in overcharge, overdischarge, overcurrent, and temperature protection to ensure safe and stable operation.
Compact and lightweight – Weighs only 24.3 KG (approximately 53.6 pounds), providing greater power and a 50% weight reduction compared to traditional lead-acid batteries, making it more energy-efficient.
Weather-resistant and durable – IP65 rating ensures protection against dust and water, making it suitable for harsh outdoor environments.
Low self-discharge – Maintains power with a monthly self-discharge of ≤1.5%, making it ideal for long-term storage.
Expandable power – Supports up to 4 batteries in parallel, increasing capacity to 800 ampere-hours (10.2 kilowatt-hours).
Intelligent monitoring (optional) – Upgrades with Bluetooth, WiFi, GPS, LCD display, RS485/CAN bus, or self-heating for real-time monitoring.
Technical Specifications
Designed for high-demand applications. Capable of withstanding extreme temperatures, rugged terrain, and harsh weather conditions. This battery is highly suitable for: Offering OEM and customized options. For OEM/ODM customers, we provide screen printing, laser logo printing, customized user manuals, and proprietary brand solutions. Certified UL 1642, IEC 62133, IEC 62619, CE, RoHS, MSDS, and UN38.3 to ensure global safety compliance.
Upgrade to high-quality LiFePO4 battery – 12V 200Ah LiFePO4 battery. Provides outstanding performance, durability, and efficiency, making it an off-grid power solution.
🚀 Use the advanced LiFePO4 technology immediately to power your journey!
12V 200Ah Lithium Battery (Super) | Specifications |
Model | AG12200LFP-LPRV |
Lithium Battery | Lithium Iron Phosphate (LFP) |
Rated Voltage | 12.8V |
Rated Capacity | 200Ah |
Rated Energy | 2560Wh |
Maximum Charging Voltage | 14.6V |
Discharge Cut-off Voltage | 10V |
Maximum Continuous Charging Current | 100A |
Maximum Continuous Discharging Current | 100A |
Dimensions [Length x Width x Height] | 522×242×220mm |
Weight | 24.3kg |
IP Rating | IP65 (for more requirements) |
Internal Resistance | ≤10mΩ |
Cycle Life | >5000 cycles (80% DOD) |
Self-discharge | 1.5% (per month) |
Maximum Parallel Connections | 4 |
Charging Temperature | 0°C~60°C |
Discharging Temperature | -20℃~65℃ |
Optional Upgrades | Self-heating / Bluetooth / App / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / RJ45 / Active balancing / etc. |
Charger | Yes |
BMS | Overcurrent / Overcharge / Overdischarge / Overload / Overvoltage / Undervoltage / Over-temperature / Low-temperature / Overheat / etc. |
Terminal | M8 |
Battery Case | ABS (flame-retardant plastic) |
Design Life | 10 years |
Warranty Policy | 3 years |
Silk Screen Printing / Label / Laser Logo | Yes |
User Manual / Warranty Card | Yes |
Customization / OEM / ODM | Yes |
Shipping | Yes |
Applied Devices | Recreational vehicles, RVs, trailers, marine vessels, yachts, fishing boats, solar energy storage systems, off-grid living, camping life |
Company Certifications | UL1642 / IEC62133 / IEC62619 / CE / RoHS / MSDS / UN38.3 |
