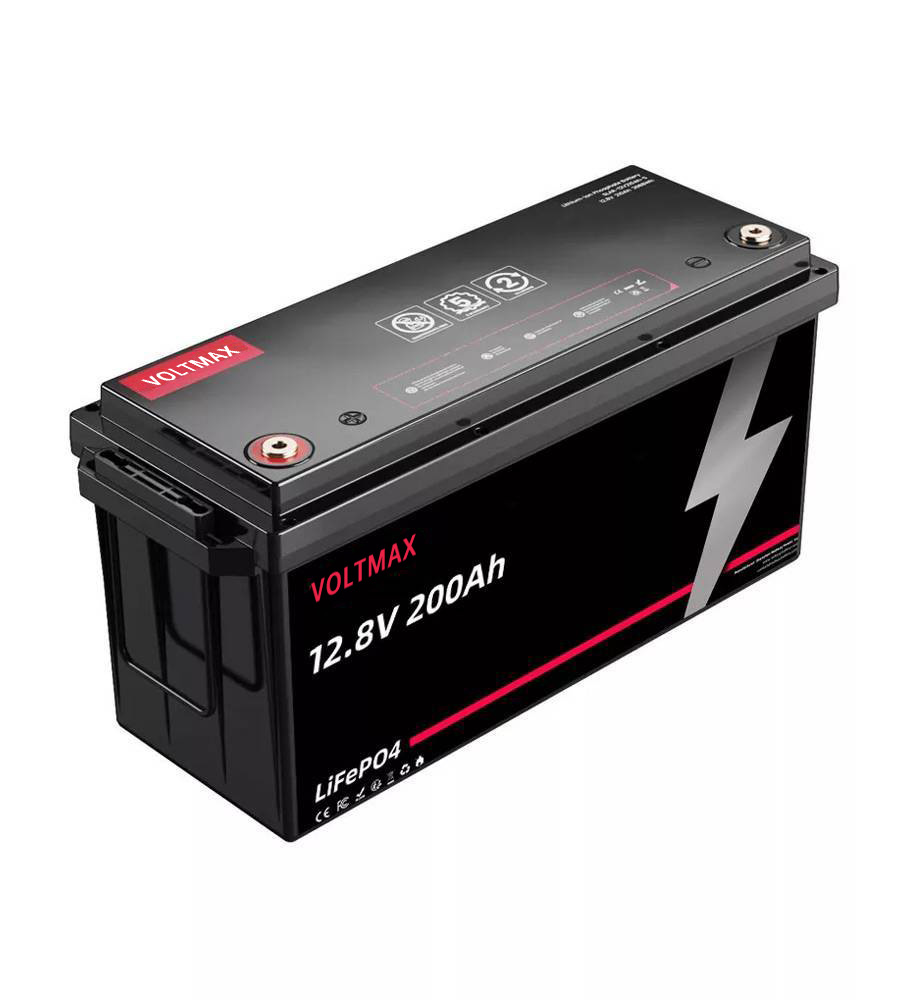

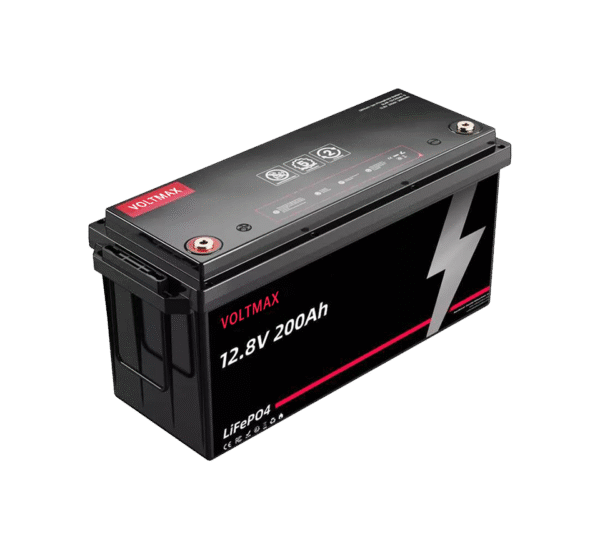

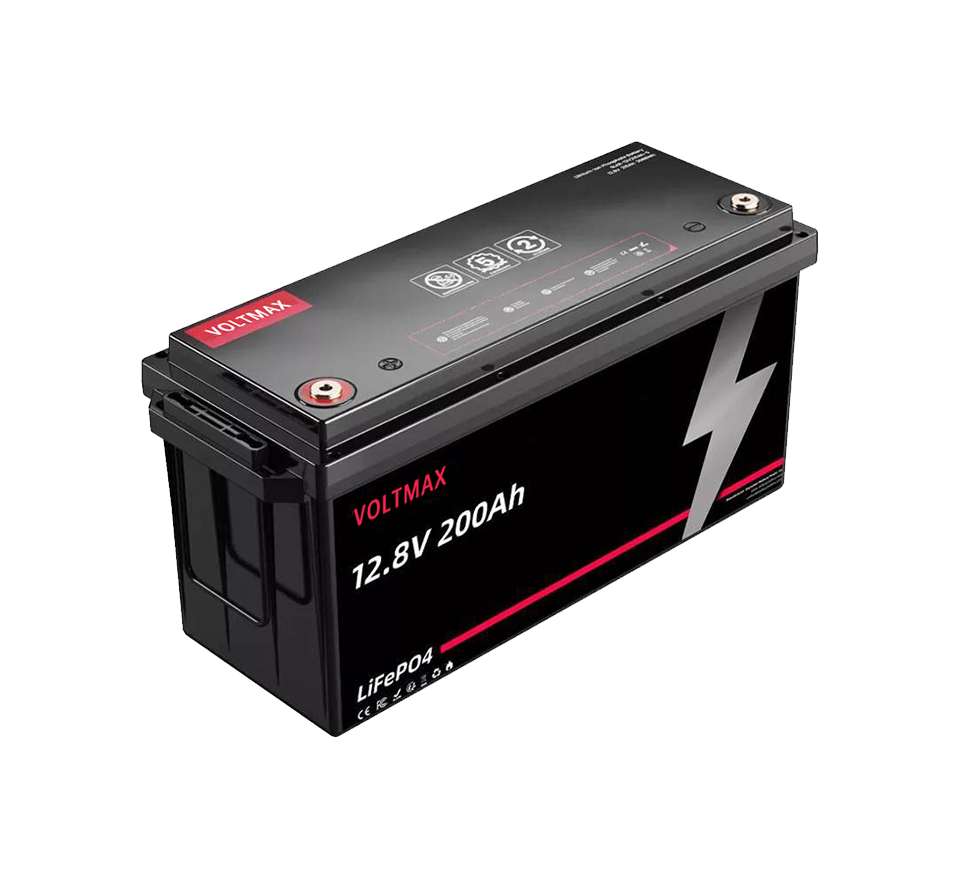

12V 200Ah lithium battery
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:200Ah
Rated energy: 2560Wh
Dimensions (length x width x height): 501×185×242/ (19.72×7.28×9.53 inches)
Weight: 18KG/39.68Pounds
IP Rating: IP65
The 12V200Ah lithium battery Aoge Power is specially designed for high-performance applications and uses LiFePO4 (LFP) cylindrical lithium batteries. The nominal energy output of this battery is 2304 whWh, making it highly suitable for recreational vehicles, ships and solar systems. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy storage solutions.
Key features:
Large capacity: The nominal capacity is 200Ah and the energy output is 2560Wh, making it highly suitable for demanding applications.
Long lifespan: With over 4,000 cycles and a discharge depth (DOD) of 80%, it ensures a long service life and reliability.
Advanced BMS protection: Equipped with an advanced battery management system (BMS) to enhance safety and performance.
Customizable options: OEM/ODM customization is available to meet specific requirements and brand needs.
Multi-functional application: Suitable for use in solar energy storage, recreational vehicles, and ships, etc.
Product Description:
12V 200Ah lithium battery adopts advanced LiFePO4 technology, which offers superior safety and efficiency compared to traditional batteries. The nominal voltage is 12.8V, and this battery supports a maximum continuous charging/discharging current of 100A, making it suitable for various applications. Its compact size (501 x 185 x 242 mm) and lightweight design (18 kg/39.68 lbs) make it easy to install in confined spaces. The battery operates effectively in extreme temperatures ranging from -20°C to 65°C, and from -0°C to 60°C for charging. Optional upgrades, such as Bluetooth connection and LCD display, can enhance monitoring capabilities. With certifications including MSDS, this battery is a reliable choice for your energy storage needs. For bulk orders or custom inquiries, please contact us to discuss your specific requirements.
| 12V 200Ah Lithium Battery | Specifications |
| Model | AG12200LFP-LPRV |
| Lithium Battery | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 2560Wh |
| Maximum Charging Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Dimensions [Length x Width x Height] | 501×185×242mm / 19.7 x 7.3 x 9.5 inches |
| Weight | 18kg / 39.68lbs |
| IP Rating | IP65 (for more requirements) |
| Series and Parallel Connections | 4S2P |
| Maximum Battery Parallel Connections | 16P |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >4000 cycles (80% DOD) |
| Self-discharge | 3% (per month) |
| Charging Temperature | 0°C~60°C |
| Discharging Temperature | -20℃~65℃ |
| Optional Upgrades | Bluetooth / APP / LCD / WiFi / RS485 / RS232 / CAN-bus / 4G / Active balancing / Self-heating, etc. |
| Charger | CC/CV |
| Bare Metal Protection | JBD / DALY BMS |
| BMS | Intelligent BMS protection |
| Terminal | M8 |
| Battery Case | ABS (flame-retardant plastic) |
| Warranty Policy | 3 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipping | Yes |
| Company Certifications | MSDS Certified |
