12V 18Ah lithium battery

Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity: 18Ah
Rated energy: 230.4Wh
Dimensions (length x width x height): 177x167x124mm / (7×6.6×4.9 inches)
Weight: 1.8 kilograms / 4 pounds IP rating: IP65
IP Rating: IP65

Aoge Power 12V 18Ah lithium iron phosphate battery is a compact and powerful energy solution, specially designed for various applications, including emergency lights, electric golf carts and solar systems. This battery uses LiFePO4 (LFP) cylindrical lithium batteries, which are lightweight and highly performant. It is an excellent choice for OEMs, ODMs and wholesale buyers seeking reliable energy storage.

Key features:
Compact and lightweight: Weighing only 1.8 kg and measuring 177×167×124mm / 7×6.6×4.9 inches, this battery is extremely easy to install in a confined space.
Long cycle life: Designed for 4000 cycles (80% DOD ), ensuring long-term reliability and efficiency.
Built-in BMS protection: Equipped with an intelligent battery management system (BMS) to prevent overcharging, overdischarging and short circuits.
Multiple operating conditions: Operates effectively within the temperature range of -20°C to 65°C, suitable for various environments.
Multiple applications: Very suitable for use in alarm systems, marine electronic equipment, solar panel kits, UPS backup systems, etc.

Product Description:
Aoge Power 12V 18Ah LiFePO4 lithium battery is specially designed for various applications, such as recreational vehicles, ships and backup power systems, featuring versatility and reliability. The nominal voltage is 12.8V and the nominal energy output is 230.4Wh. This lightweight battery (approximately 1.8kg) ensures ease of operation and installation. With an IP65 rating, it is dust and water resistant, suitable for outdoor use.
This battery has an intelligent BMS that can prevent overcharging, overdischarging and short circuits, ensuring safe operation under various conditions. OEM/ODM buyers can choose custom options, including additional features such as Bluetooth connection and self-heating function. Aoge Power provides high-performance battery solutions that can effectively meet your energy needs and is reliable.

2V18AHSpecifications
ModelAG1218LFP-LPRV
Battery TypeLithium Iron Phosphate (LFP)
Rated Voltage12.8V
Nominal Capacity18Ah
Nominal Energy230.4Wh
Charging Voltage14.6V
Discharging Voltage10V
Maximum Continuous Charging Current15A
Maximum Continuous Discharging Current15A
Dimensions [Length x Width x Height]177×167×124mm / 7×6.6×4.9 inches
Weight1.8kg / 4lbs
IP RatingIP65
Maximum Parallel Connections4
Cycle Life>4000 cycles (80% DOD)
Self-discharge1% (per month)
Charging Temperature0℃~60℃
Discharging Temperature-20℃~60℃
Optional FunctionsBluetooth / App / WiFi / 4G / GPS / Self-heating / etc.
ChargerOptional
BMSOvercurrent / Overcharge / Overdischarge / Overload / Overvoltage / Undervoltage / Overheat / Over-temperature / Low-temperature / etc.

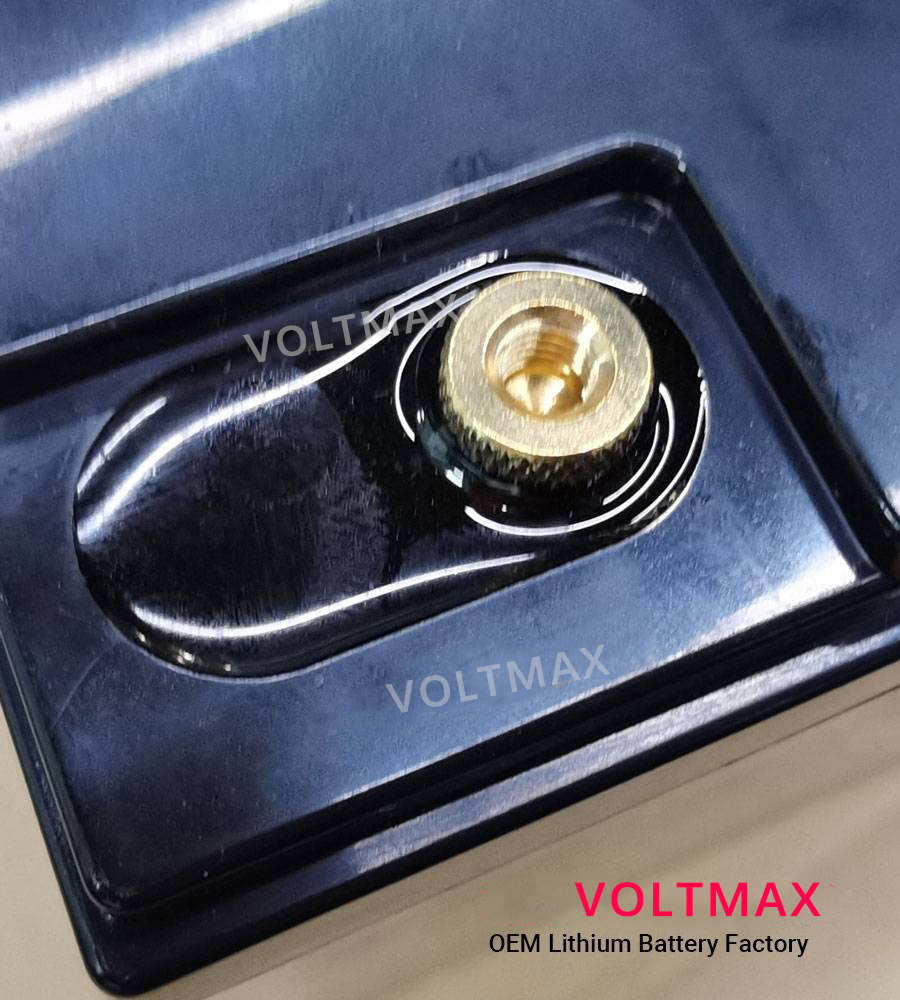

TerminalM5
Battery CaseABS
Design Life10 years
Silk Screen Printing / Label / Laser LogoYes
User ManualYes
Customization / OEM / ODMYes
ShippingYes
