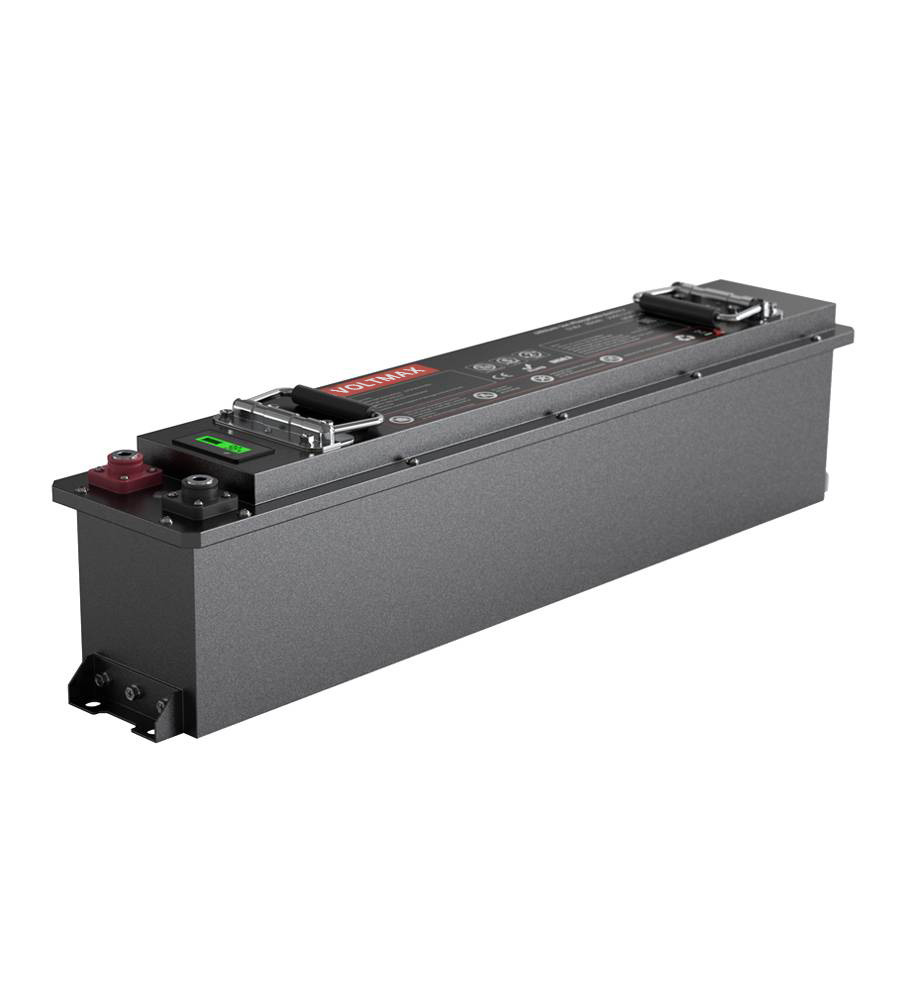

12V 180Ah lithium battery (LCD screen version)

Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:184Ah
Rated energy: 2355.2Wh
Dimensions (length x width x height): 678×138×158
mm/ (26.7×5.4×6.2 inches)
Weight: 19.5KG/43 Pounds
IP Rating: IP65

The 12V 180Ah lithium battery Aoge Power is specially designed for high-performance applications and uses LiFePO4 (LFP) cylindrical lithium batteries. The nominal energy output of this battery is 1920Wh, making it highly suitable for recreational vehicles, ships and solar systems. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy storage solutions.

Key features:
Large capacity: Rated capacity of 180Ah, providing 2355.2Wh of energy suitable for RV, Marine applications and off-grid systems.
Long cycle life: Specifically designed for 4000 cycles (80% DOD ), ensuring durability and service life in harsh environments.
Compact design: Dimensions 678×138×158mm , with a weight of approximately 12.8 kg (28.2 pounds), can be easily installed in a confined space.
IP65 rating: Provides excellent dust and water protection, suitable for use in ships and outdoor applications.
Customizable options: Please choose OEM/ODM customization, allowing you to customize specifications such as heating function, Bluetooth connection, etc.

Product Description:
The 12V 180Ah lithium battery is a powerful and versatile energy solution suitable for various applications. Utilizing high-quality lithium iron phosphate batteries, this battery has a nominal voltage of 12.8V and an impressive energy capacity of 2355.2Wh, making it highly suitable for use in RVs, ships, and off-grid setups. This battery is specifically designed for use in various conditions, featuring a charging function ranging from 0°C to 60°C, and discharging from -20°C to 65°C. It weighs approximately 19.5 kilograms (43 pounds), combining a lightweight structure with strong power capabilities. The self-discharge rate remains at 3% per month, allowing for extended storage without losing capacity. The maximum continuous charging and discharging current is 100A, enabling it to effectively handle large power demands. The durable ABS casing provides fire protection and ensures the battery’s lifespan. For OEM/ODM customers, we offer a wide range of customization options, including screen-printed labels and user manuals. Our flexible delivery conditions (FOB, EXW, CIF) ensure that your order is promptly processed within the specified time frame of 20 days. Choose Aoge Power 12V 180Ah lithium battery (LiFePO4) to provide unparalleled performance, reliability, and intelligent technology for your energy storage solution. Utilize our reliable batteries to enhance your power capacity – your efficient energy journey begins here!

12V 180Ah Lithium Battery (LCD Version)Specifications
ModelAG12180LFP-LPRV
Lithium BatteryLithium Iron Phosphate (LFP)
Rated Voltage12.8V
Nominal Capacity180Ah
Nominal Energy2355.2Wh
Maximum Charging Voltage14.6V
Discharge Cut-off Voltage10V
Maximum Continuous Charging Current100A
Maximum Continuous Discharging Current100A
Dimensions [Length x Width x Height]678×138×158mm / 26.7 x 5.4 x 6.2 inches
Weight19.5kg / 43lbs
IP RatingIP65 (for more requirements)
Series and Parallel Connections4S1P
Maximum Battery Parallel Connections4P up to 9420.8Wh (for more requirements)
Internal Resistance≤30mΩ
Cycle Life>4000 cycles (80% DOD)
Self-discharge3% (per month)
Charging Temperature0°C~60°C / 32°F~140°F
Discharging Temperature-20℃~65℃ / -4°F~149°F
LCD ScreenYes
Optional UpgradesBluetooth / WiFi / LED touch screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP
ChargerHigh-current fast charger
BMSIntelligent BMS protection
TerminalM8
Battery CaseABS (flame-retardant plastic)
Warranty Policy3 years
Silk Screen Printing / Label / Laser LogoYes
User Manual / Warranty CardYes
Customization / OEM / ODMYes
ShippingYes
Company CertificationsIEC, UN38.3, MSDS (for more requirements)
