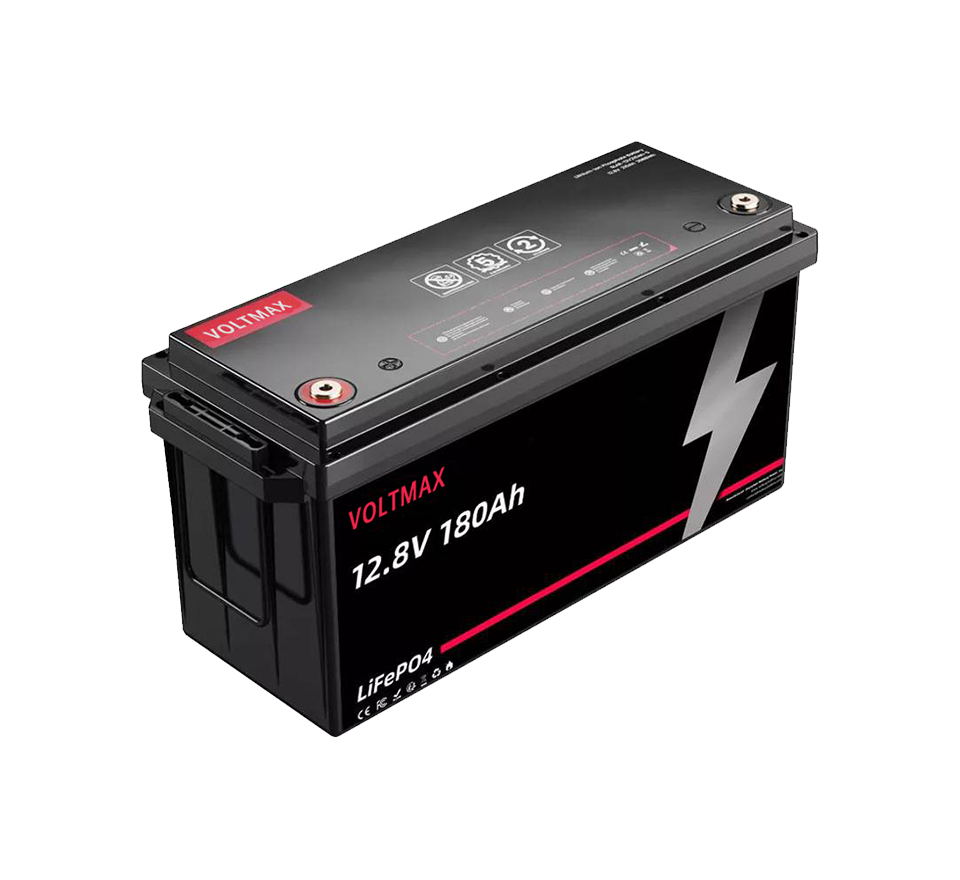

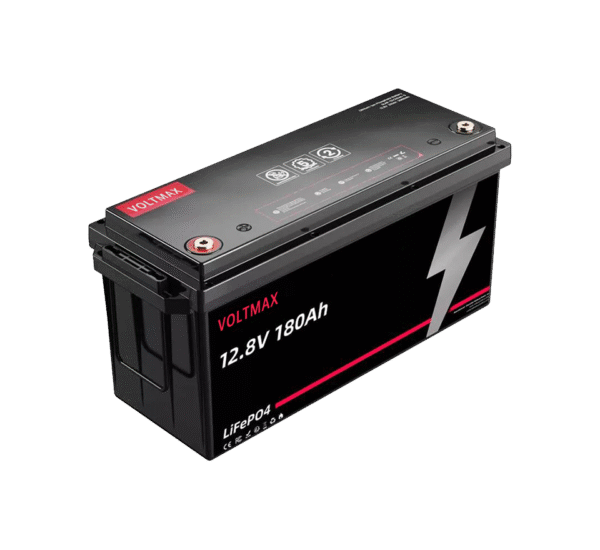

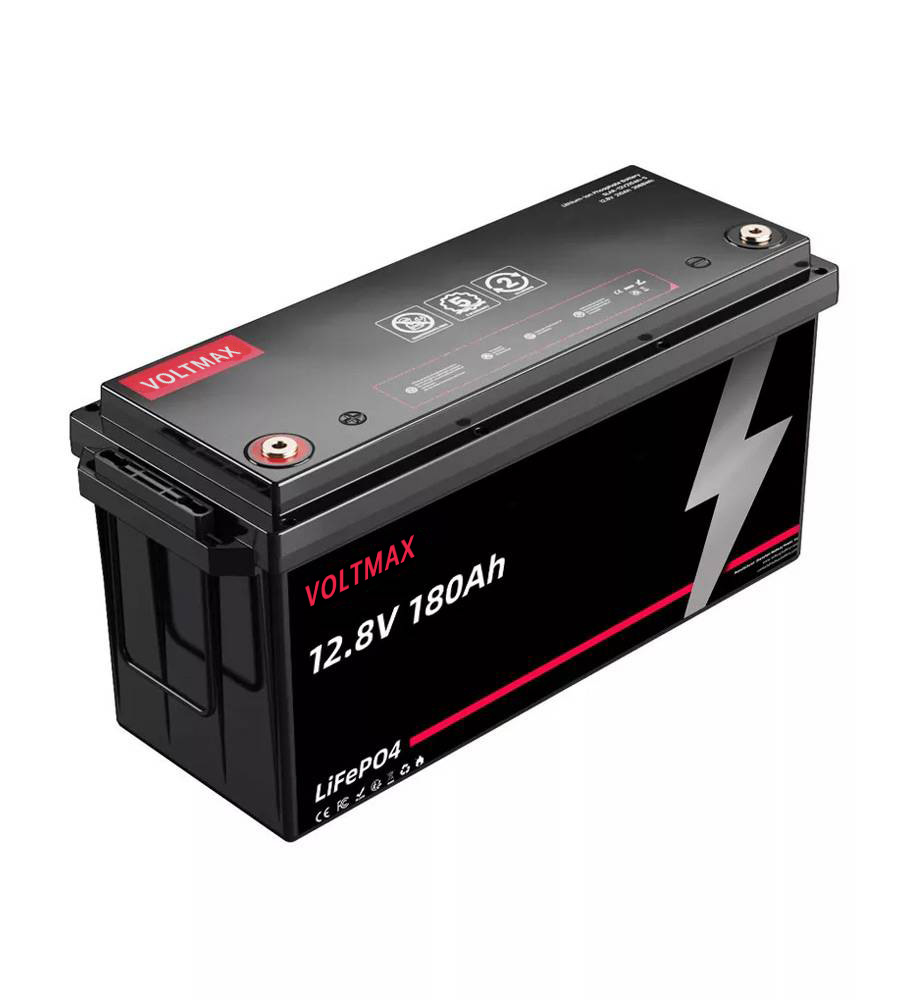

12V 180Ah lithium battery
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:180Ah
Rated energy: 2304Wh
Dimensions (length x width x height): 501×185×242/ (19.7×7.3×9.5 inches)
Weight: 15.8KG/34.8 Pounds
IP Rating: IP65
The 12V 180Ah lithium battery Aoge Power is specially designed for high-performance applications and uses LiFePO4 (LFP) cylindrical lithium batteries. The nominal energy output of this battery is 2304 whWh, making it highly suitable for recreational vehicles, ships and solar systems. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy storage solutions.
Key features:
High energy density: With a nominal capacity of 180Ah and an energy output of 2304Wh, this battery can provide powerful power for various applications.
Long cycle life: The design exceeds 4000 cycles. At an 80% discharge depth (DOD) , it ensures long-term performance and reliability.
Wide operating temperature range: Effectively functions at temperatures ranging from -20°C to 65 °C, suitable for a variety of environments
IP65 rating: Provides excellent dust and water protection, suitable for use in ships and outdoor applications.
Customizable options: Please choose OEM/ODM customization, allowing you to customize specifications such as heating function, Bluetooth connection, etc.
Product Description:
The 12V 180Ah EU lithium battery is specially designed to meet the energy demands of various applications such as recreational vehicles, campers, boats and off-grid solar systems. With a maximum continuous charging and discharging current of 100A, this battery ensures efficient power management and meets all your needs. This battery is made of high-quality ABS material, which can withstand harsh conditions while maintaining the best performance. It operates effectively within a temperature range of 0°C to 60 °C for charging and -20°C to 65 °C for discharging. This battery adopts an intelligent battery management system (BMS), which can prevent overcharging, overdischarging, short circuit and other potential dangers. The self-discharge rate is approximately 3% per month, ensuring that the battery can maintain its charge during idle periods.
The warranty period is 3 years. The Aoge Power 12V 180Ah lithium battery is the top choice for OEMs, wholesalers, and those seeking high-performance energy solutions. Contact us immediately to explore customization options and bulk purchase discounts!
| 12V 180Ah Lithium Battery | Specifications |
| Model | AG12180LFP-LPRV |
| Lithium Battery | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 12.8V |
| Nominal Capacity | 180Ah |
| Nominal Energy | 2304Wh |
| Maximum Charging Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Dimensions [Length x Width x Height] | 501×185×242mm / 19.7 x 7.3 x 9.5 inches |
| Weight | 15.8kg / 34.8lbs |
| IP Rating | IP65 (for more requirements) |
| Series and Parallel Connections | 4S12P |
| Maximum Battery Parallel Connections | 4P up to 9.216KWh (for more requirements) |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >4000 cycles (80% DOD) |
| Self-discharge | 3% (per month) |
| Charging Temperature | 0°C~60°C / 32°F~140°F |
| Discharging Temperature | -20℃~65℃ / -4°F~149°F |
| Optional Upgrades | Bluetooth / WiFi / LCD / LED touch screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP |
| Charger | High-current fast charger |
| BMS | Intelligent BMS protection |
| Terminal | M8 |
| Battery Case | ABS (flame-retardant plastic) |
| Warranty Policy | 3 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipping | Yes |
| Company Certifications | IEC, UN38.3, MSDS (for more requirements) |
