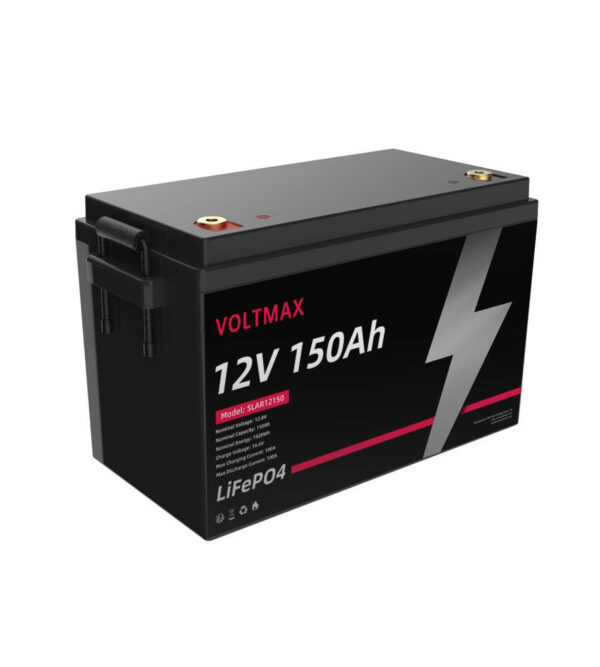

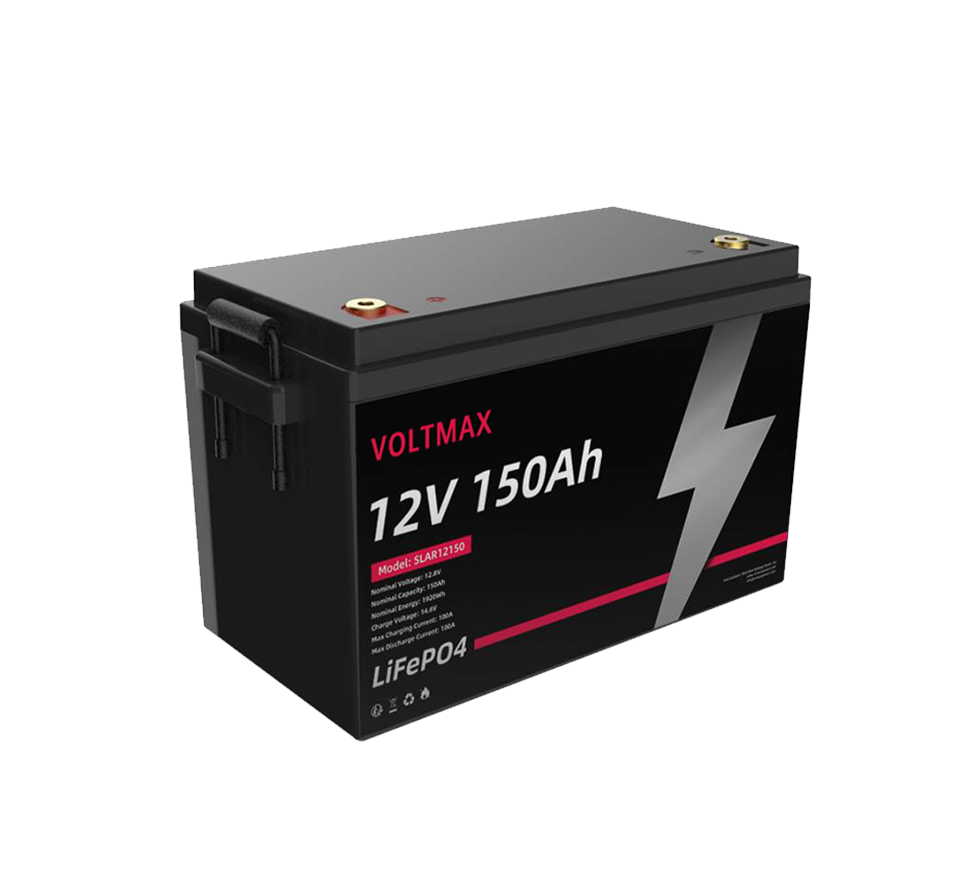

12V 150Ah lithium battery
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:150Ah
Rated energy: 1920Wh
Dimensions (length x width x height): 330×172×215mm/ (13×6.8×8.4 inches)
Weight: 14KG
IP Rating: IP65
Unleash the Power of Multi-Functionality 12V 150Ah Lithium Battery (31 sets) Produced by Aoge Power. This high-capacity battery, designed with LiFePO4 technology, is suitable for a wide range of applications, including recreational vehicles, ships, camping and off-grid systems. With its powerful performance and customizable functions, it is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy solutions.
Key features:
High energy capacity: Provides a nominal energy of 1920Wh, which is highly suitable for powering electrical appliances and equipment in campers, ships and solar systems. ·
Long cycle life: Specifically designed for 6000 cycles with a discharge depth (DOD) of 80%, ensuring durability and lifespan in harsh environments.
Compact design: Dimensions are 330 x 172 x 215mm (13 x 6.8 x 8.4 inches), with a weight of approximately 14kg, allowing for easy installation in various setups.
IP65 rating: Provides excellent dust and water protection, suitable for use in ships and outdoor applications.
Customizable options: Please choose OEM/ODM customization, allowing you to customize specifications such as heating function, Bluetooth connection, etc.
Product Description:
The 12V 150Ah lithium battery is specially designed for users who require reliable and efficient energy solutions. With a nominal voltage of 12.8V, this battery uses high-quality LiFePO4 cells to ensure safety and stability. Its compact size measures 331 x 175 x 222mm (13 x 6.9 x 8.7 inches) and its lightweight design weighs only 14.3 kg, making it easy to integrate into various applications. The maximum continuous charging and discharging current supported by this battery is 100A, making it ideal for high-demand situations.
The sturdy structure has an IP65 rating, preventing dust and water from entering. Through optional upgrades such as Bluetooth connection, self-heating function, and solar compatibility, this battery can be customized according to specific needs.
The generous 5-year warranty offered by Aoge Power ensures the reliability and performance of the 12V 150Ah lithium battery. It complies with multiple certifications such as UL, CE, and RoHS, making it a reliable choice for automotive, renewable energy, marine, and backup power applications. Whether you are looking to stock up for wholesale distribution or seeking a customized solution for your brand, this battery is your top choice for achieving outstanding performance and reliability in the energy field.
12V 150Ah Lithium Battery | Specifications |
Model | AG12150LFP-LPRV |
Lithium Battery | Lithium Iron Phosphate (LFP) |
Rated Voltage | 12.8V |
Nominal Capacity | 150Ah |
Nominal Energy | 1920Wh |
Maximum Charging Voltage | 14.6V |
Discharge Cut-off Voltage | 10V |
Maximum Continuous Charging Current | 100A |
Maximum Continuous Discharging Current | 100A |
Dimensions [Length x Width x Height] | 331×175×222mm / 13×6.9×8.7 inches |
Weight | 14.3kg |
IP Rating | IP65 |
Maximum Parallel Connections | 4 |
Internal Resistance | ≤10mΩ |
Cycle Life | >6000 cycles (80% DOD) |
Self-discharge | 1.5% (per month) |
Charging Temperature | 0°C~60°C |
Discharging Temperature | -20℃~65℃ |
Optional Upgrades | Self-heating / Bluetooth / App / WiFi / 4G / GPS / LCD display / RS485 / RS232 / CAN bus / Solar panel / Solar MPPT / etc. |
Charger | Optional |
BMS | Overcharge / Overvoltage / Overcurrent / Overload / Overheat / Low temperature / Undervoltage / Short circuit / etc. |
Terminal | M8 |
Battery Case | ABS (flame-retardant plastic) |
Internal Battery Bracket | Metal / EVA foam |
Impact Resistance | Ideal for marine, RV, camper and automotive use. |
Warranty Policy | 5 years |
Silk Screen Printing / Label / Laser Logo | Yes |
User Manual / Warranty Card | Yes |
Customization / OEM / ODM | Yes |
Shipping | Yes |
Company Certifications | UL1642, IEC62619, IEC 62133, CE, RoHS, MSDS, UN38.3 |
