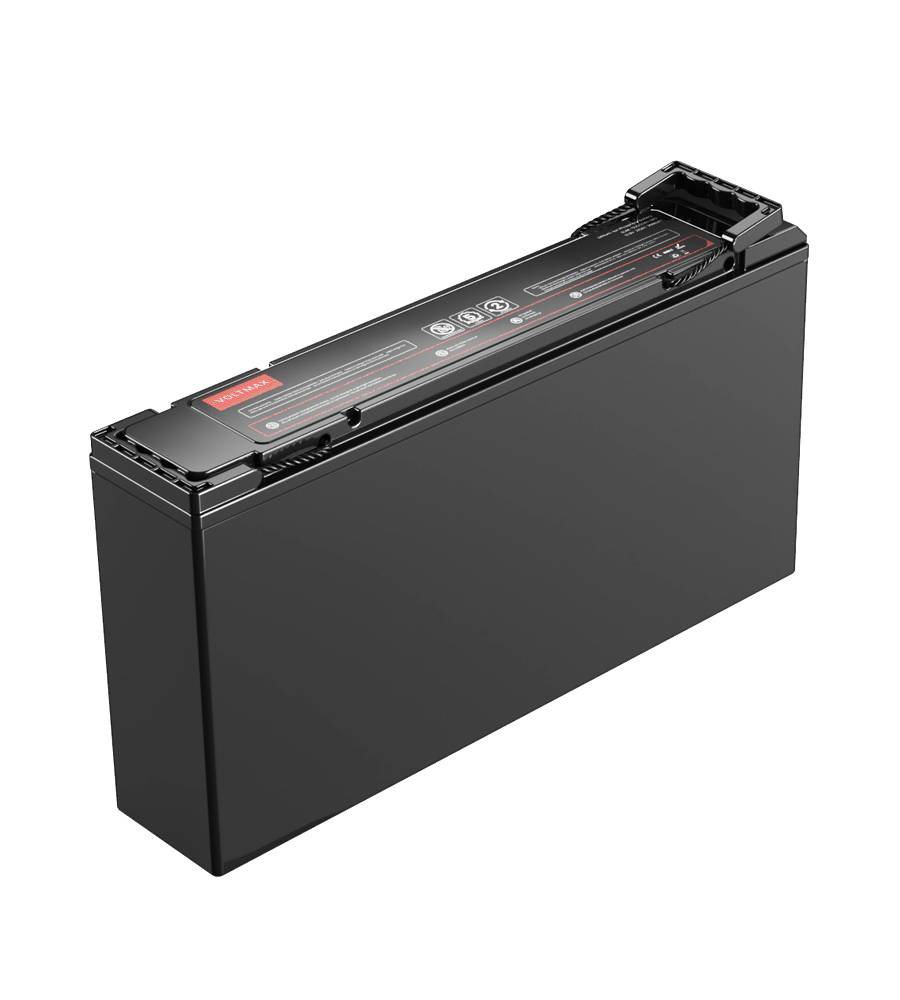

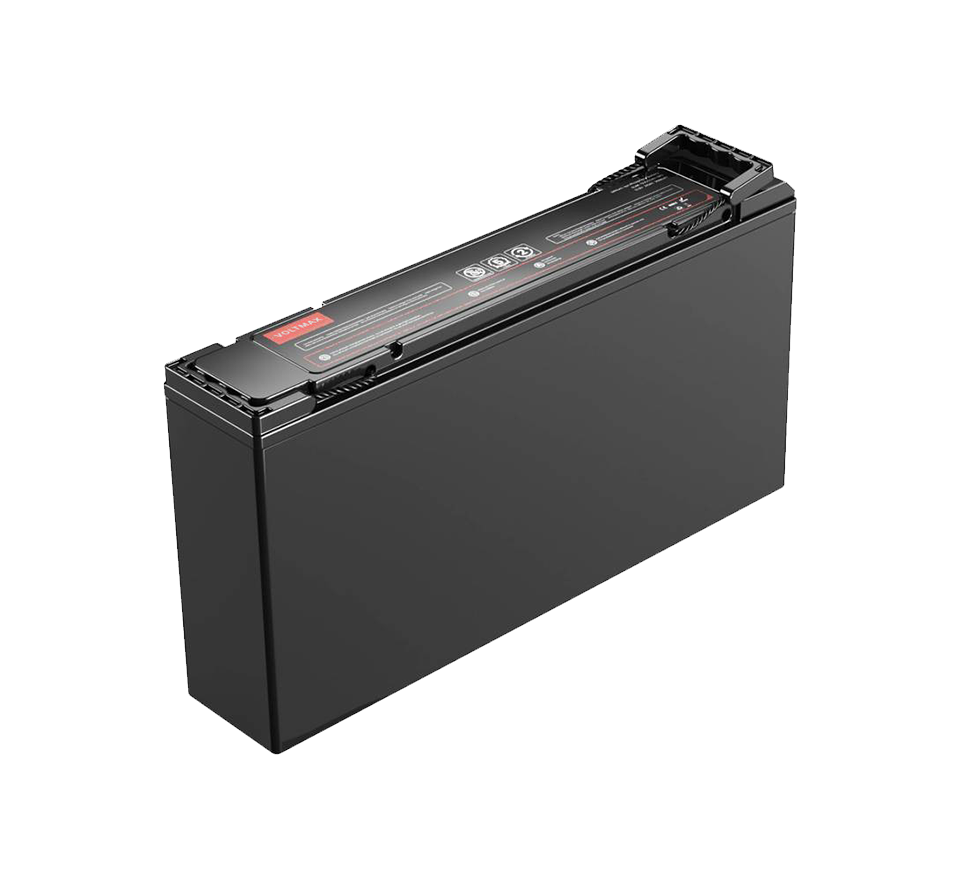

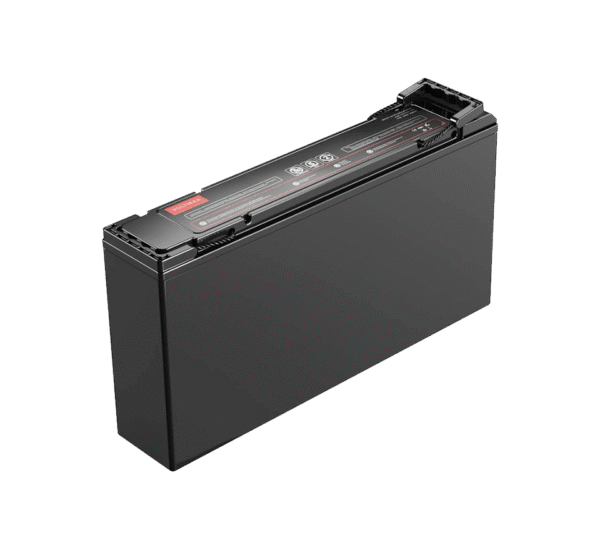

12V 150Ah (European standard)
Category: 12v RV lithium battery
Lithium battery: Lithium Iron Phosphate (LFP)
Rated voltage: 12.8V
Nominal capacity:150Ah
Rated energy: 1920Wh
Dimensions (length x width x height): 552×110×288mm/ (21.7×4.3×11.4 inches)
Weight: 12.8KG/28.2 Pounds
IP Rating: IP65
The 12V 150Ah lithium battery Aoge Power is specially designed for high-performance applications and uses LiFePO4 (LFP) cylindrical lithium batteries. The nominal energy output of this battery is 1920Wh, making it highly suitable for recreational vehicles, ships and solar systems. It is highly suitable for OEM, ODM and wholesale buyers seeking reliable energy storage solutions.
Key features:
Large capacity: Provides a rated voltage of 12.8V and a capacity of 150Ah to ensure a large amount of energy output for various applications.
Long cycle life: Specifically designed for 4000 cycles (80% DOD ), ensuring durability and service life in harsh environments.
Compact design: Dimensions 552 x 110 x 288mm (21.7 x 4.3 x 11.4 inches), with a weight of approximately 12.8 kg (28.2 pounds), can be easily installed in a confined space.
IP65 rating: Provides excellent dust and water protection, suitable for use in ships and outdoor applications.
Customizable options: Please choose OEM/ODM customization, allowing you to customize specifications such as heating function, Bluetooth connection, etc.
Product Description:
12V 150Ah EU lithium battery is specially designed to meet the energy demands of various applications such as campers, recreational vehicles, boats, and off-grid solar systems. The maximum continuous charging and discharging current is 100A. This battery ensures efficient power management and can meet all your needs. The battery is made of high-quality ABS material, which can withstand harsh conditions while maintaining optimal performance. It operates effectively within the temperature range of 0°C to 60°C, for charging at -20°C to 65°C, and for discharging. This battery features an intelligent battery management system (BMS) that can prevent overcharging, overdischarging, short circuits, and other potential hazards. The self-discharge rate is approximately 3% per month, ensuring that the battery retains its charge even when idle. The warranty period is 3 years. Voltmax Power 12V 150Ah lithium battery is the preferred choice for OEMs, wholesalers, and those seeking high-performance energy solutions. Contact us immediately to explore customization options and bulk purchase discounts!
| 12V 150Ah (European Standard) | Specifications |
| Model | AG12150LFP-LPRV |
| Lithium Battery | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 12.8V |
| Nominal Capacity | 150Ah |
| Nominal Energy | 1920Wh |
| Maximum Charging Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Dimensions [Length x Width x Height] | 552×110×288mm / 21.7 x 4.3 x 11.4 inches |
| Weight | 12.8kg / 28.2lbs |
| IP Rating | IP65 (for more requirements) |
| Series and Parallel Connections | 4S10P |
| Maximum Battery Parallel Connections | 4P up to 7680Wh (for more requirements) |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >4000 cycles (80% DOD) |
| Self-discharge | 3% (per month) |
| Charging Temperature | 0°C~60°C / 32°F~140°F |
| Discharging Temperature | -20℃~65℃ / -4°F~149°F |
| Optional Upgrades | Bluetooth / Self-heating / LCD / RS485 / RS232 / CAN / 4G, 5G / GPS / APP |
| Charger | High-current fast charger |
| BMS | Intelligent BMS protection |
| Terminal | M8 |
| Battery Case | ABS (flame-retardant plastic) |
| Warranty Policy | 3 years |
| Silk Screen Printing / Label / Laser Logo | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipping | Yes |
| Company Certifications | IEC, UN38.3, MSDS (for more requirements) |
