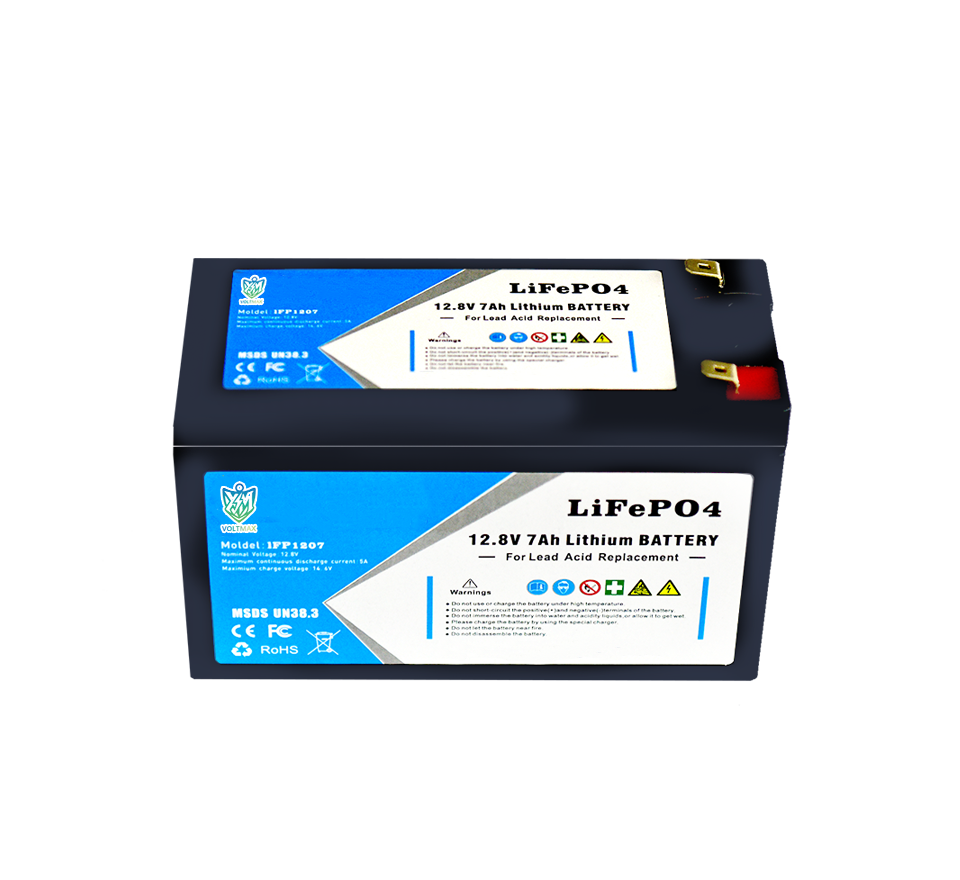

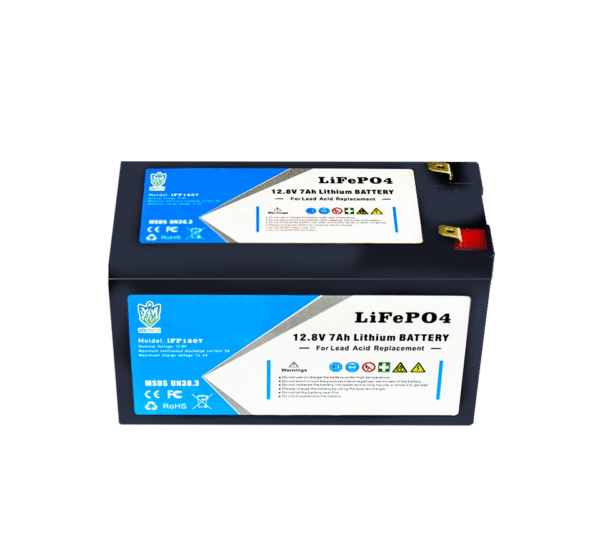

12.8V 7Ah LiFePO4 Battery Series
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment.
Type: LiFePO4 Battery Pack
Cathode Material: LFP
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: AOGE POWER
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet
AOGE POWER 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.
The AOGE POWER 12.8V LiFePO4 Lithium Battery is a robust energy storage solution designed for high-performance applications such as solar systems, and electric vehicles. With its advanced features and customizable options, this battery is ideal for OEM, ODM, and wholesale buyers looking for reliable and efficient power solutions.
Key Features & Benefits
Long Cycle Life: Exceeds 5000 cyclesat 80% depth of discharge (DoD) for extended durability.|
IP65 Rating: Designed to withstand dust and water, ensuring reliable performance in outdoor environments.

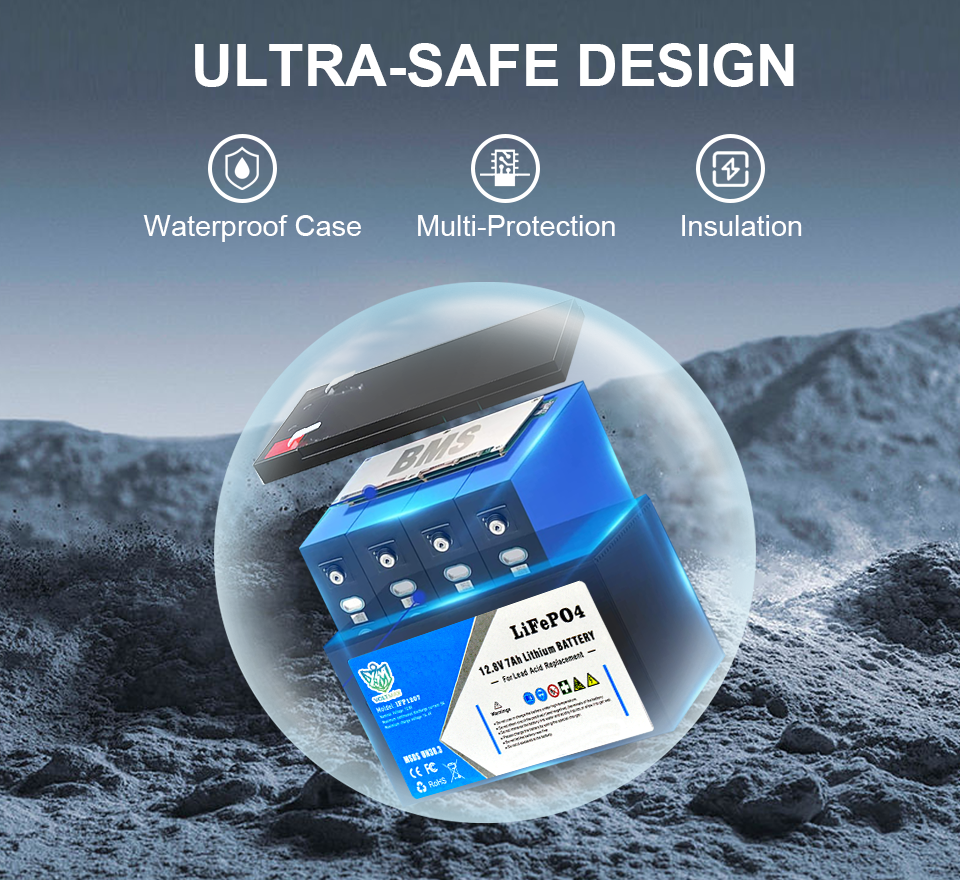

Smart BMS Protection: Equipped with a comprehensive Battery Management System (BMS)for enhanced safety and efficiency.
Wide Temperature Range: Operates efficiently from -20°C to 60°C, suitable for diverse environments.
Scalable Power – Supports 4 batteries in series (48V systems) or 4 in parallel (400Ah capacity) for expanded energy needs.
Optional Upgrades –Self-heating / Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / RJ45 / CAN bus / Power Switch / Circuit Breaker / Active Balance / etc.
Product Description:
The AOGE POWER 12.8V LiFePO4 Lithium Battery features a nominal voltage and an energy outpu making it suitable for demanding applications like solar energy storage and backup power systems. Weighing approximately 1.0kg, this battery is constructed with durable ABS plastic and offers easy installation with standard connectors.
This battery’s intelligent BMS protects against overcharging, overheating, and short circuits, ensuring safe operation in various conditions. Customizable options are available for OEM/ODM buyers, including features like Bluetooth connectivity and self-heating capabilities. Choose AOGE POWER for a high-quality battery solution that meets your energy needs efficiently and reliably.
| LFP BATTERY TO REPLACE VRLA BATTERY -AOGE LP SERIES | |
| MODEL | AG1207LFP-LP |
| Rated Voltage | 12.8V |
| Rated Capacity | 7Ah |
| Rated Energy | 89.6Wh |
| MAX.Charge Voltage | 14-14.6V |
| RECMD charge current(0.2C) | 1.4A |
| RECMD charge METHOD | At 0℃-45℃, Set up charge voltage at 14.6V, and initial charge-current at 0.2C5A; change battery continuously till the current drops less 0.02C5A |
| Max.Charge Current(0.5C) | 3.5A |
| Discharge CUT-OFF Volt. | 10V |
| RECMD discharge current(0.2C) | 1.4A |
| Max.Discharge Current(1C) | 7A |

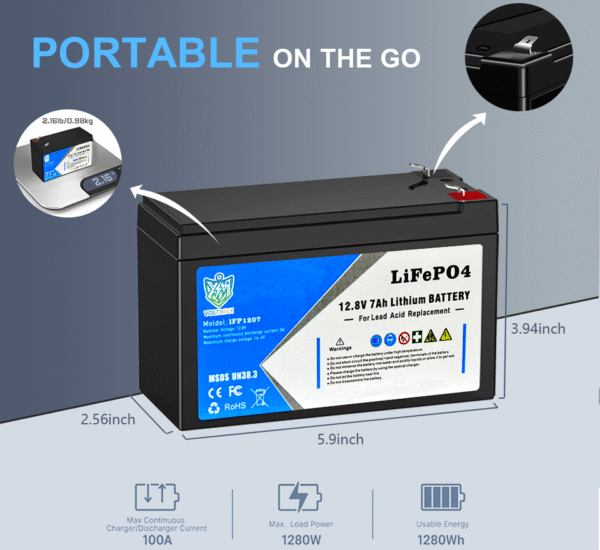

| Dimensions(L*W*H*TH)MM | 151*65*95*100 |
| Weight(APPROX)KG±3% | 1.0KG |
| INTERNAL RESISTANCE (≦MΩ) | 0.65 |
| IP Rating | IP65 |
| Max Parallel | 4 |
| Cycle Life | >5000 cycles @0.2C Charging/Discharging (DOD 80%) |
| Self-Discharge | ≦3% (per month) |
| Charge/storage Temperature | 0°C ~ 45°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C ~ 60°C @60±25% Relative Humidity |
| Optional Functions | Bluetooth / App / WiFi / 4G / GPS / Self-heating / etc. |
| BMS FUNCTION | Over current/Over charge/Over discharge/Over load/Over voltage/Low voltage/Over heat/Over temperature/Low temperature/etc. |
| Terminal | F1/F2 |
| Battery Case | ABS |
| Design Life/WARRANTY | 10 Years/3 YEARS |
