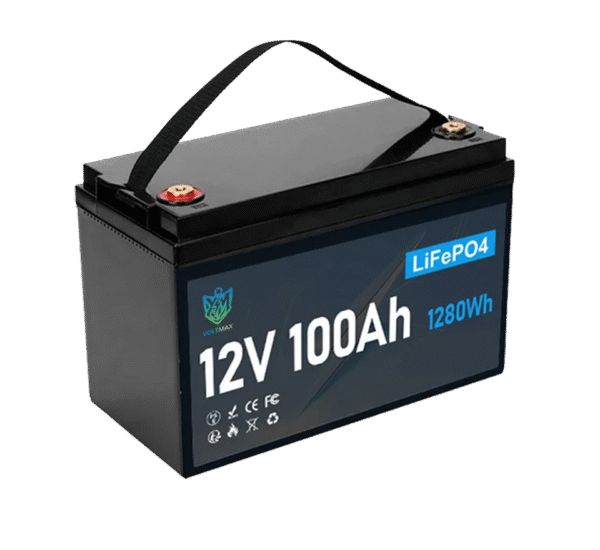

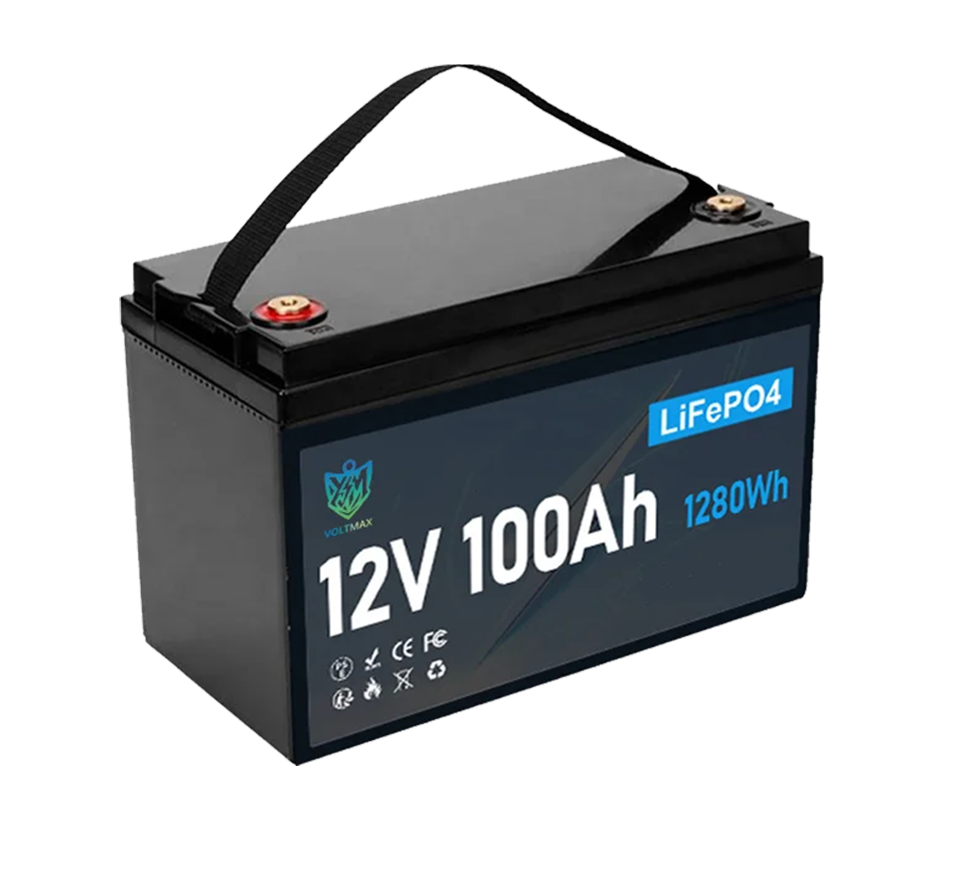

12 Volt Lithium Marine Battery

AOGE POWER 12V lithium marine battery is designed to provide reliable, efficient power for all types of marine applications.

Type: LiFePO4
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, LiFePO4
Nominal Capacity: 12.8V
Minimum Order Quantity: 50
Delivery Time: 20 days
Customization/OEM/ODM: Yes
Factory: AOGE POWER
Delivery Method: FOB, EXW, CIF
Payment Method: T/T, L/C, PayPal
Shipping Methods: 10 feet, 20 feet, 40 feet, 60 feet

AOGE POWER lithium batteries have fast charging speed and excellent energy density, providing stable and reliable power, and improving the overall performance of golf carts. Compared with traditional lead-acid batteries, 36V lithium batteries have better durability and lower maintenance costs. They can work normally in extreme weather conditions while reducing environmental impact. With the advancement of technology, more and more golf cart manufacturers are beginning to adopt lithium batteries to meet users’ higher demands for endurance and efficiency.

Key Features & Benefits

High Energy Density – With a 1280Wh (1.28kWh) capacity, this battery delivers consistent, reliable power for demanding applications.
Long Cycle Life – Engineered for 5000+ cycles at 80% DOD and 4000+ cycles at 100% DOD, ensuring over a decade of dependable use.
Fast & Efficient Charging – Supports up to 100A charging with a recommended 14.6V 20A charger, reaching full charge in just 5 hours.

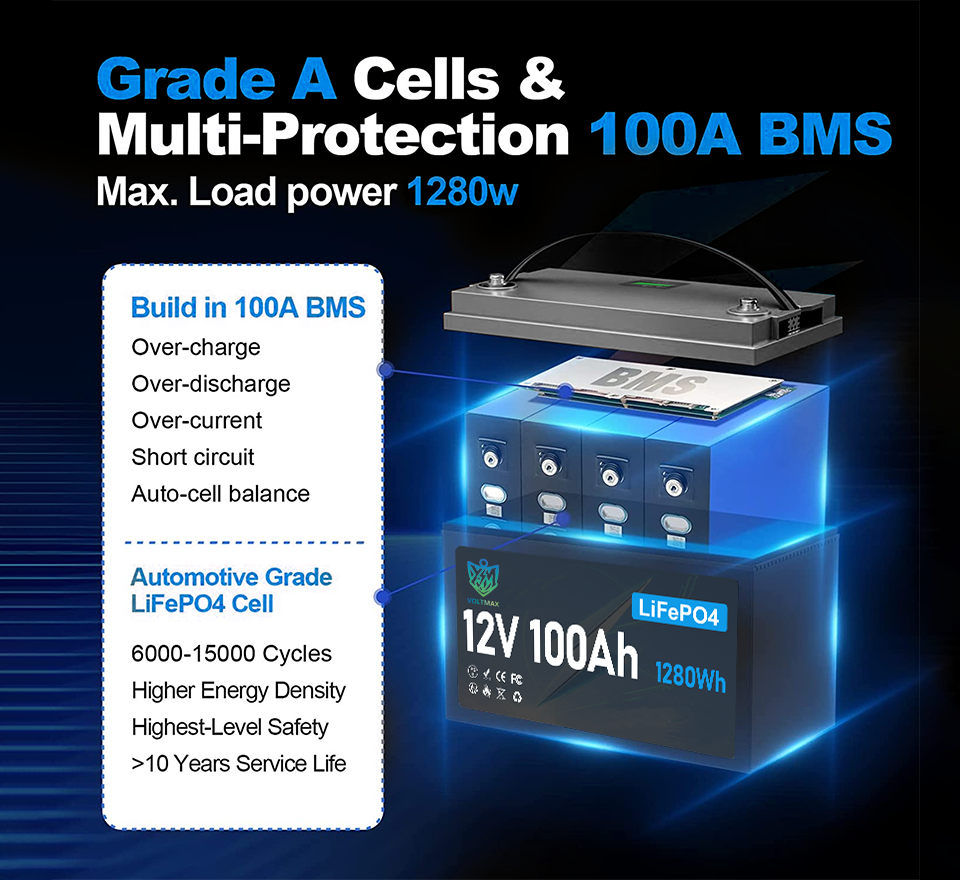

Advanced BMS Protection – Integrated JBD BMS safeguards against overcharge, over-discharge, short circuits, and temperature extremes.
Durable & Weatherproof – IP65-rated for dust and water resistance, making it suitable for harsh environments like mountains, deserts, and damp conditions.
Lightweight & Compact – At just13.1 kg, it offers greater energy output with 50% less weight compared to traditional lead-acid batteries.
Scalable Power – Supports 4 batteries in series (48V systems) or 4 in parallel (400Ah capacity) for expanded energy needs.
Smart Technology (Optional) – Upgrade with Bluetooth, WiFi, GPS, LCD Display, RS485/CAN bus, or self-heating for advanced monitoring and control.

Product Description

Solar Energy Storage 12.8V 100Ah LiFePO4 Battery Lead Acid Replacement LiFeP04 batteries from AOGE POWER are a new generation source of energy storage product. Built-in BMS controls the charging and discharging process, protects the battery against overcharging, deep discharge, overload and overheating,over temperature,over voltage,under voltage etc. Compared to traditional lead-acid technology, including AGM and GEL, 12V/24V series lithium ion batteries produce by AOGE POWER are characterized by much greater resistance to deep and frequent discharges.

CategoriesDetailsGeneral
Voltage-relatedNominal Voltage: 38.4V
Working Voltage: 32.4V – 43.8V
Recommended Voltage: 36.0V – 42.6V
Recom. Charging Current: <52A
Max Charging Current: 105A
Bulk/Absorb Voltage: 42.6V
Float Voltage: 42.0V or O
BMS High Voltage Cutoff: 44.4V
Charging Temp. Range: 32F to 130F
Max Continuous Discharge: 175A
Max Discharge 3 Sec: 500A
Max Discharge 30 Sec: 300A
Recom. Voltage Cutoff: 36.0V
BMS Voltage Cutoff: 32.4V
BMS Voltage Recovery: 34.8V
Discharge Temp Range: -10F to 140F
Cell-relatedCell Count: 12
Nominal Capacity: 105Ah
Energy: 4,032Wh
Reserve @25A: 252 Minutes
Self Discharge: 1% Per Month
Display and meter
PhysicalCell Chemistry: Lithium Iron Phosphate
Cell Type: Prismatic
Cell Configuration: 1P12S
Series Connectable: No
Parallel Connectable: Yes, up to 2
Weight: 70 lbs (42.6Kg)
Dimension LxWxH: 13.37”X10.18”X11”
Terminal Type: M8 Female
Shell Type: Powder Coated Steel
UN Shipping Class: UN 3480
SafetyCharging Freeze Protection: Yes, Under 32F
Pack Over-Voltage: Yes
Cell Balancing: Yes
Pack Under-Voltage: Yes
Cell Under-Voltage: Yes
Cell Over-Temp: Yes
BMS Over-Temp: Yes
Short Circuit/Over Current: Yes

CertificationsUN38.3, UL1642 Cell1735096730481.png
CommunicationBluetooth: Yes
CAN: Yes

NoItemSpecification
1ModelAG36100LFP-EV
2Nominal Capacity105Ah
3FeaturesHigh Discharge
4Size331*335*258mm
5Appro Weight38.4kg
6Storage Temperature-20–60° c
7CertificationCE, RoHs, REACH
